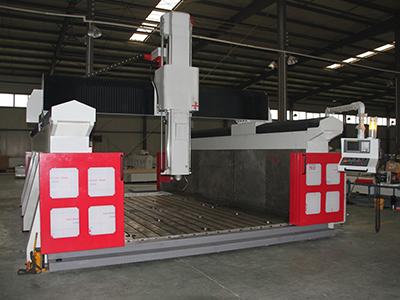

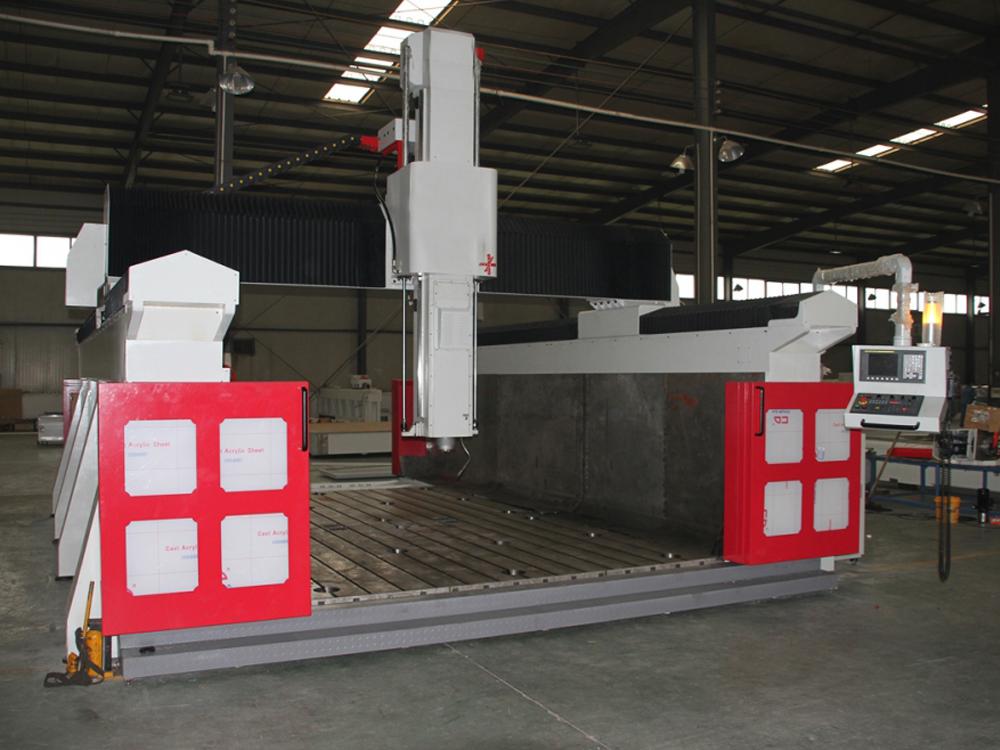

5-axis CNC Machining Center, SF-2040T-5S Series

5-axis CNC Machining Center

Our 5-axis linkage CNC machining center operates with 5 axes including an X-axis, Y-axis, Z-axis, A-axis, and C-axis, giving it incredible operating flexibility and performance. It is suitable for cutting and carving large 3D models, casting molds, sculptures, etc.

Materials Cut

Wood, foam, plastic, composite material, glass fiber, aluminum, etc.

  • 5-axis CNC Machining Center
  • 5-axis CNC Machining Center
  • 5-axis CNC Machining Center
  • 5-axis CNC Machining Center
  • 5-axis CNC Machining Center
Applications
  • Casting molds and models: wood molds, foam molds, aluminum molds, composite material molds, LFC molds, sand molds, etc.
  • Sculpture: 3D characters, head sculptures, exhibition models, cartoon sculptures, props.
  • Auto part: auto parts and auto molds.
  • Model design: car models, aircraft models, and ship models.
  • Wind power industry: impeller blades, pump models, etc.
Features

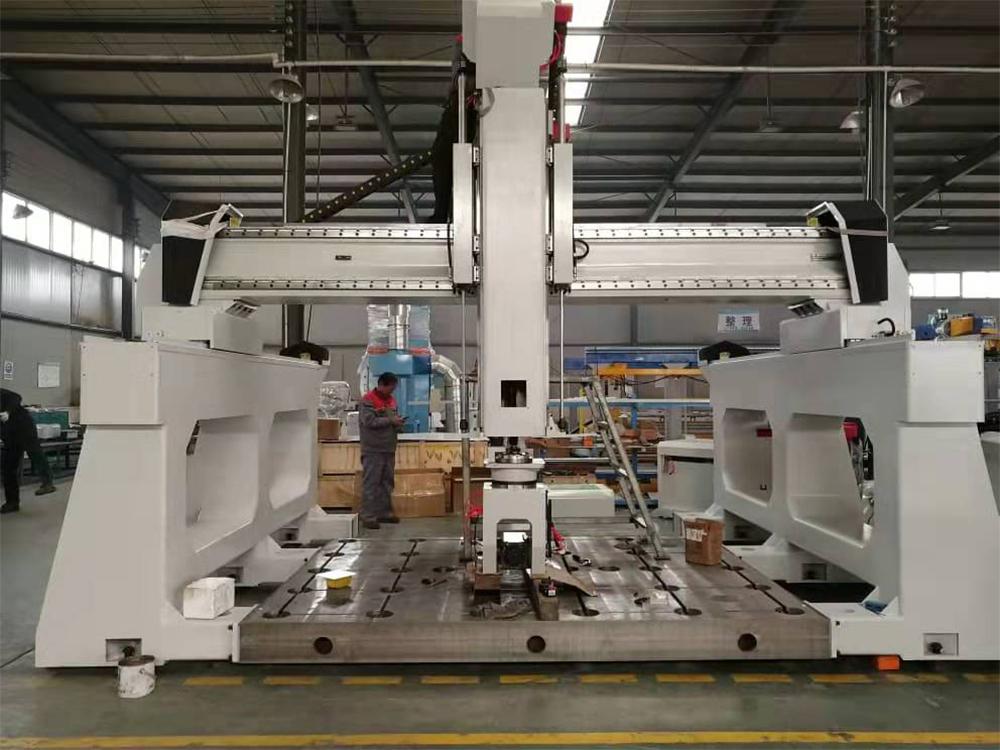

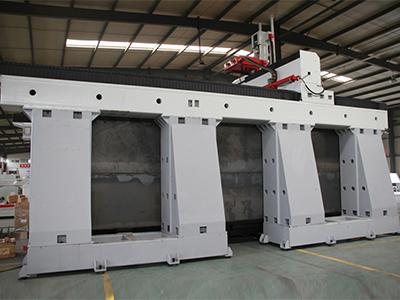

  • 5-axis CNC Machining CenterThe heavy-duty frame ensures maximum stability during 5-axis processing.

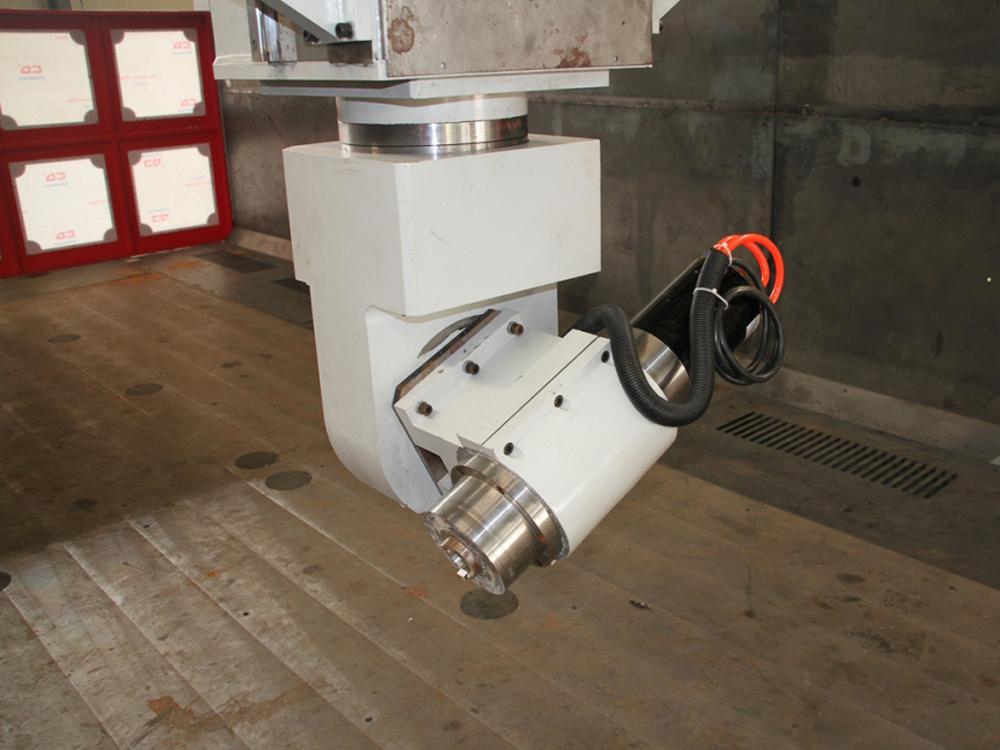

  • 5-axis CNC Machining CenterWith five axis configuration, workpiece can be processed from all directions.

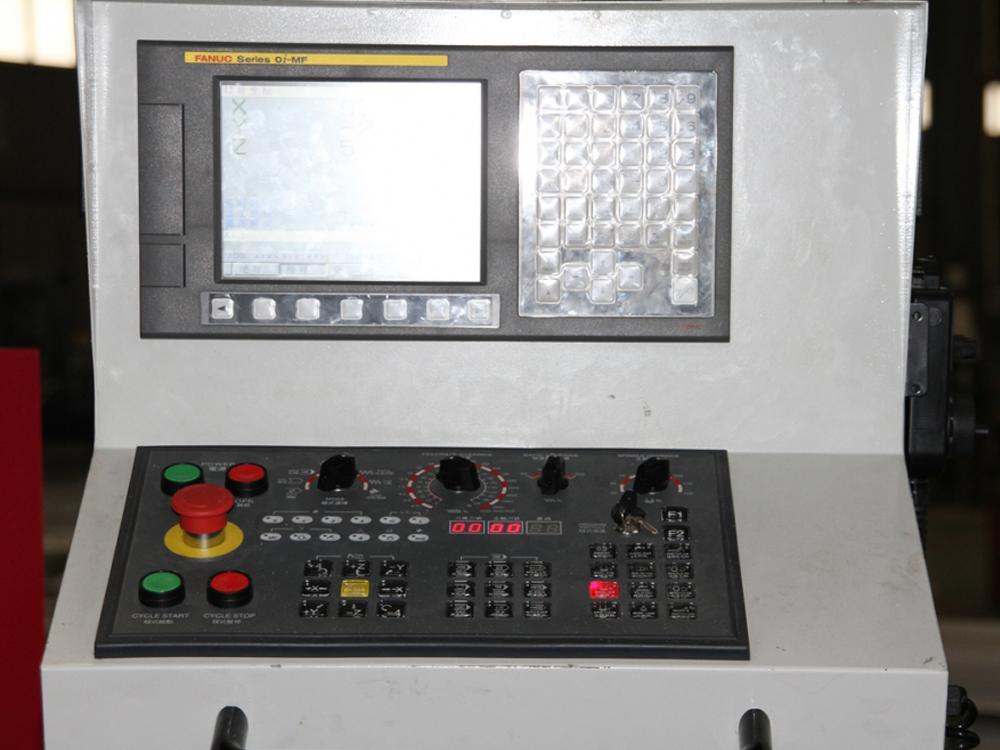

  • 5-axis CNC Machining CenterThe 5-axis control system supports RTCP function and delivers high precision performance that you can rely on.
  • 5-axis CNC Machining CenterThe 6 position linear type tool changer supports the quick changing of tools during processing to minimize downtime.
Parameters
Model F3-SF2040T-5S F3-SF2540T-5S F3-SF3040T-5S F3-SF3565T-5S
X-axis stroke 4000mm 4000mm 4000mm 6500mm
Y-axis stroke 2000mm 2500mm 3000mm 3500mm
Z-axis stroke 1200mm/1500mm 1200mm/1500mm 1200mm/1500mm 2200mm
Max. feed rate X-axis: 15000mm/min Y-axis:15000mm/min Z-axis:8000mm/min
Options
  • Cast iron table

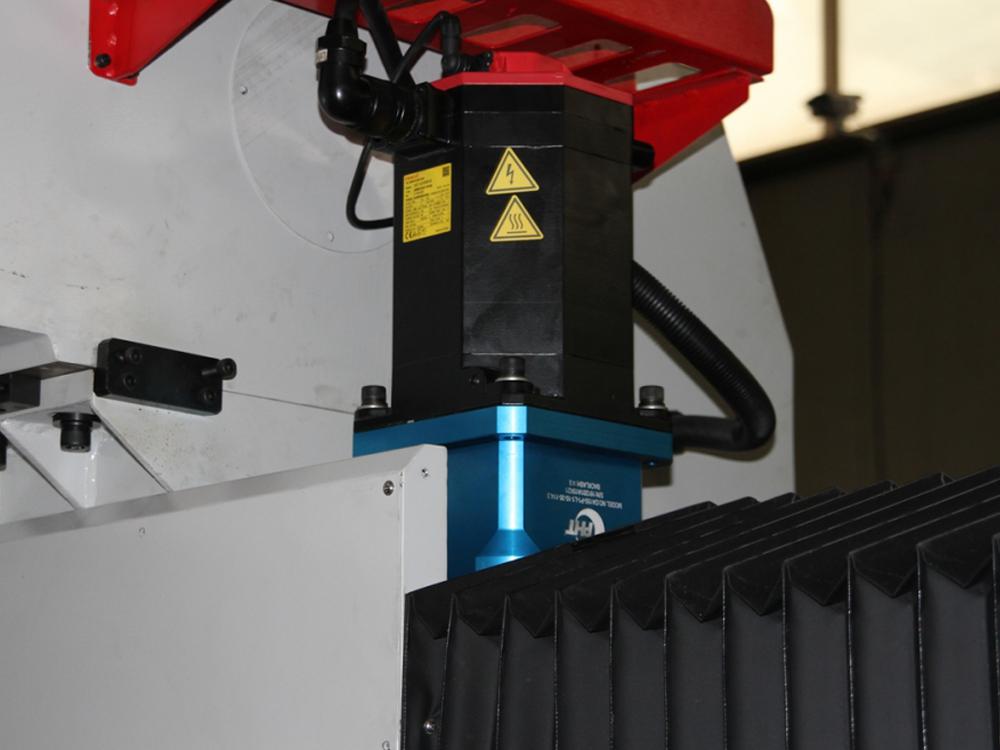

  • Yasukawa servo motor
  • Syntec 220MA-5 Control System
  • Powermill Software
  • 15kW/24kW Omlat water cooled automatic tool change spindles
Gallery
  • 5-axis CNC Machining Center
  • 5-axis CNC Machining Center
  • 5-axis CNC Machining Center
  • 5-axis CNC Machining Center
  • 5-axis CNC Machining Center
  • 5-axis CNC Machining Center
  • 5-axis CNC Machining Center
  • 5-axis CNC Machining Center
Factory Tour
  • 5-axis CNC Machining Center5-Face Milling
  • 5-axis CNC Machining CenterCNC Machining
  • 5-axis CNC Machining CenterGantry Planing
  • 5-axis CNC Machining CenterWelding
  • 5-axis CNC Machining CenterWelding

Founded more than two decades ago, Shandong PEF Machine Tool Co. is a lauded manufacturer of high-performance CNC processing machinery. Our equipment is carefully developed to provide users with incredible precision, and we are proud of their capabilities. We offer a series of 3/4/5-axis CNC routers that deliver a broad range of functions for many industries. These machines have been applied for numerous different applications, such as panel processing, parts prototyping, custom cabinets, architectural modeling, millwork, and much more. We provide a full range of standard equipment, but if your requirements are still not met, we can customize the machines to ensure you are fully satisfied. Contact us today to learn more!
