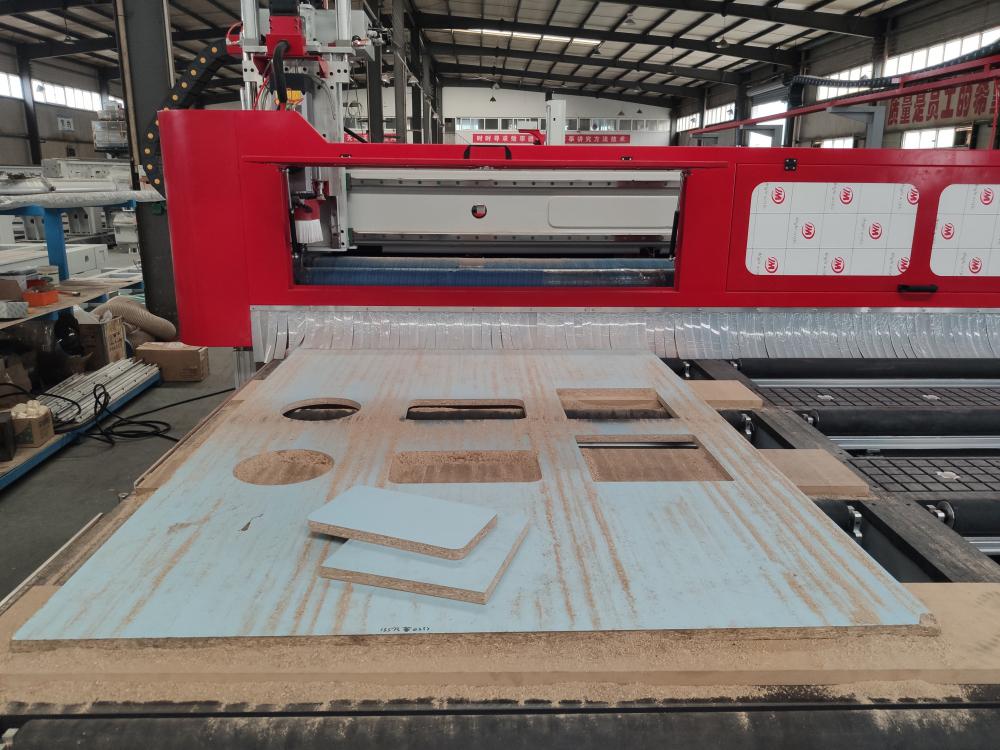

Fiberboard, sandwich plate, laminated board, carbon fiber, PVC.

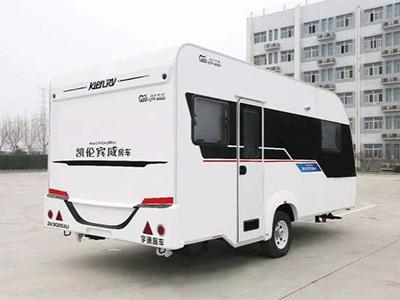

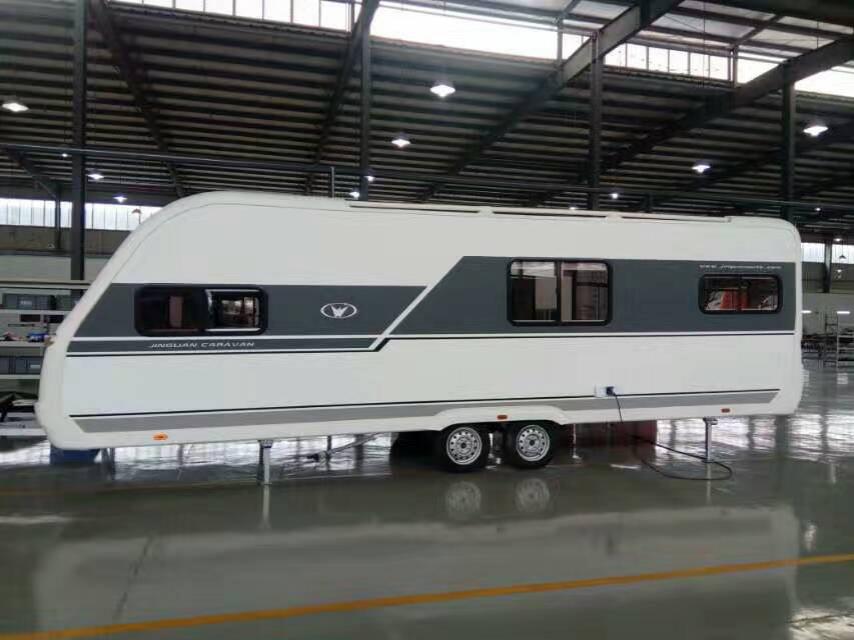

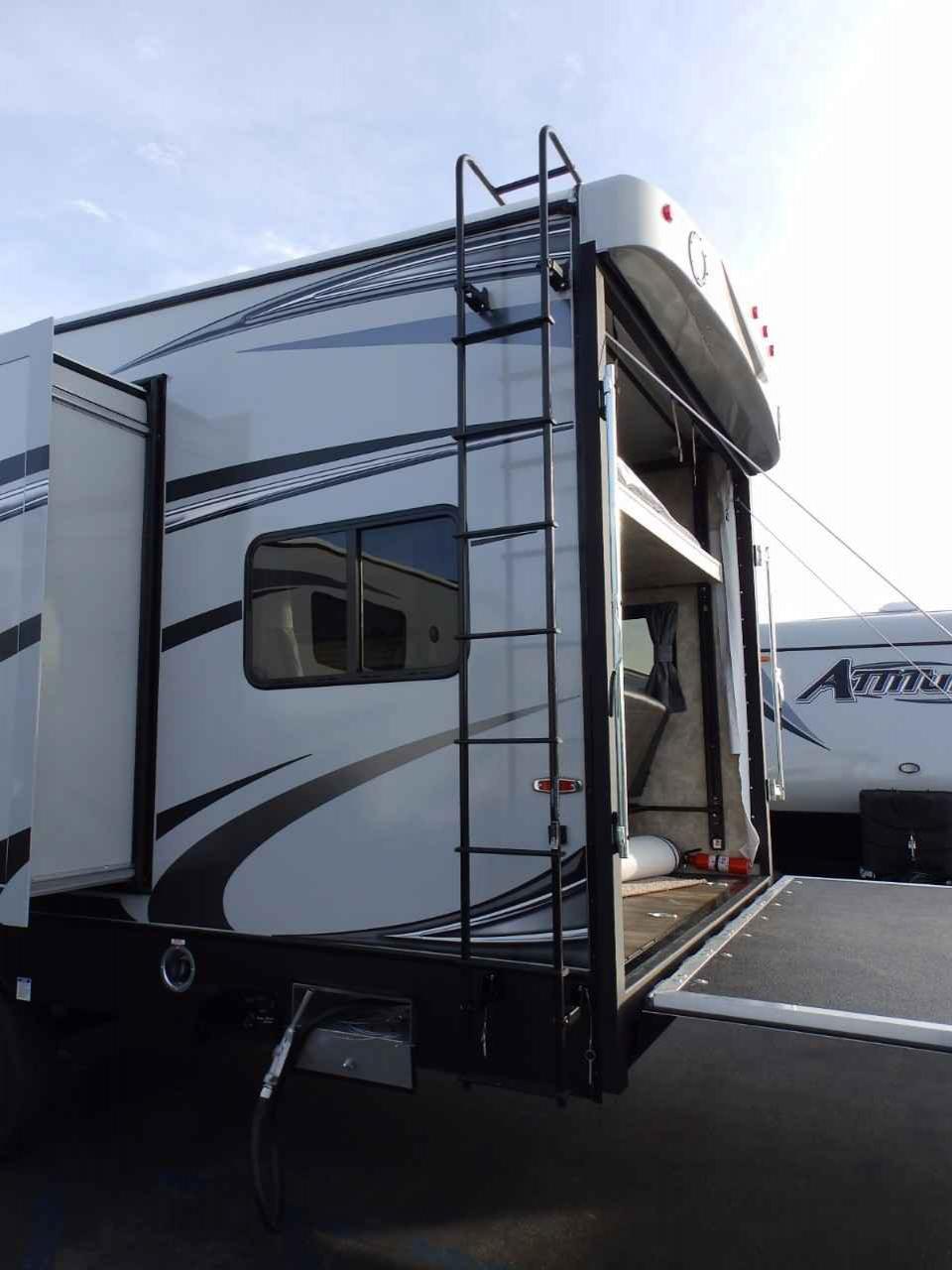

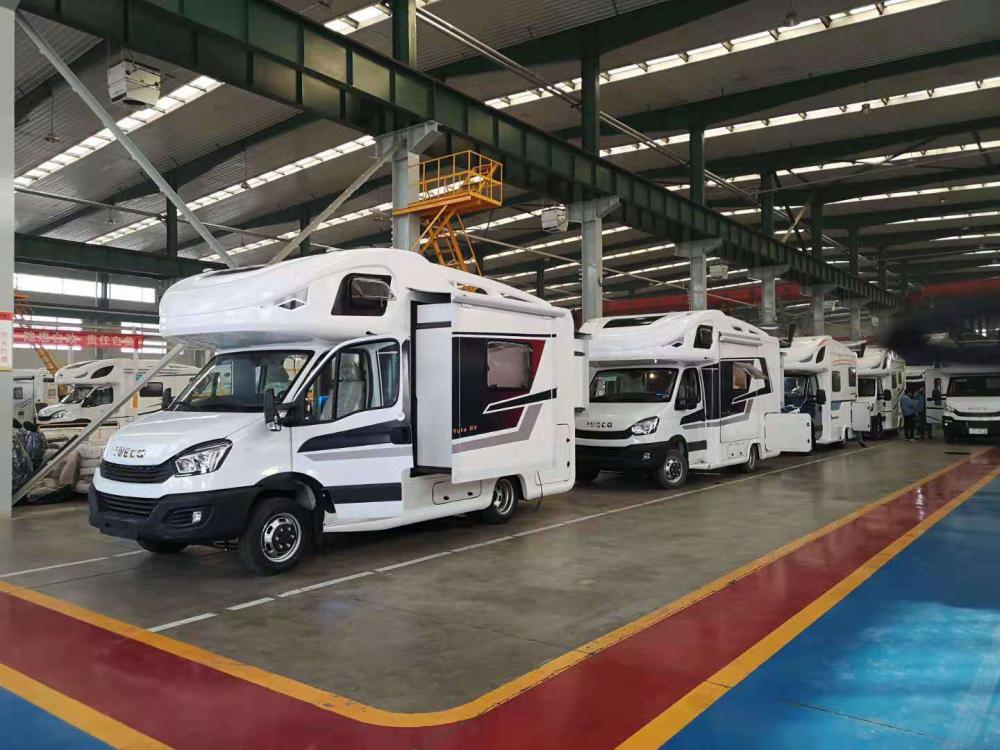

• Automobile industry: various recreational vehicles including truck campers, popup campers, travel trailers and more.

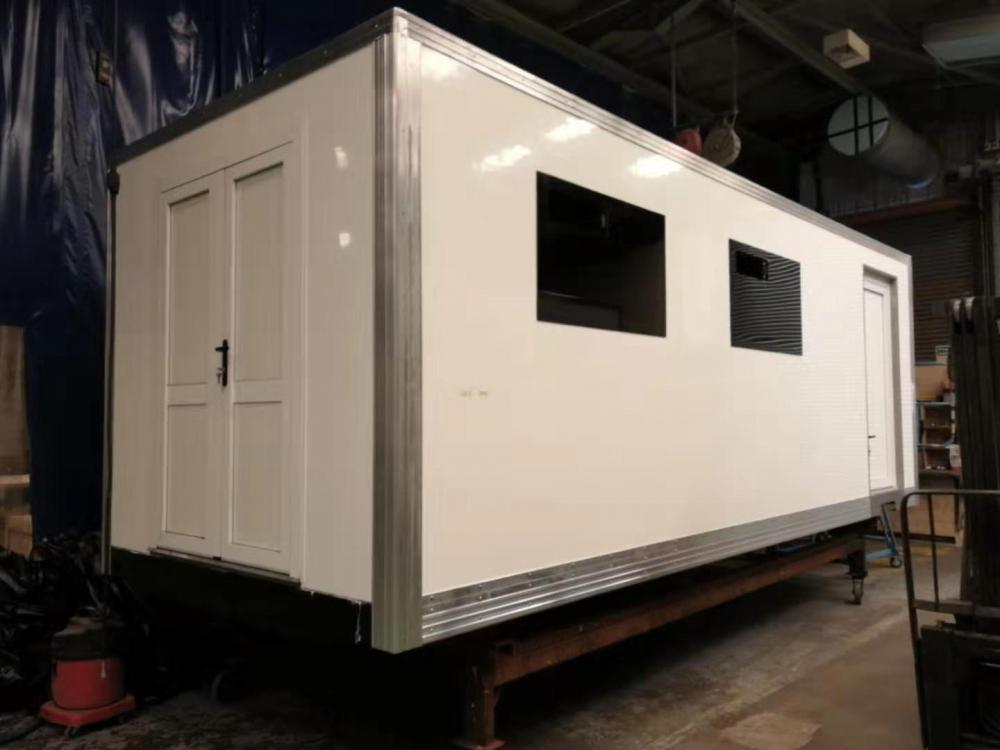

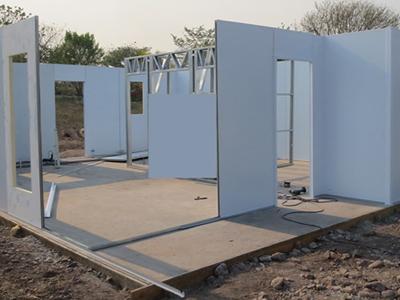

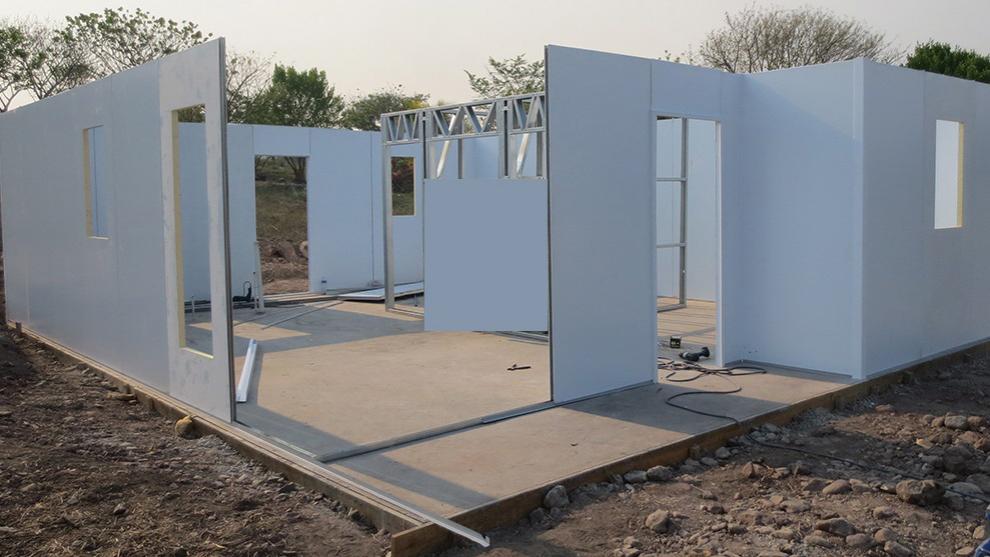

• Construction industry: sun rooms, simple rooms, modular buildings.

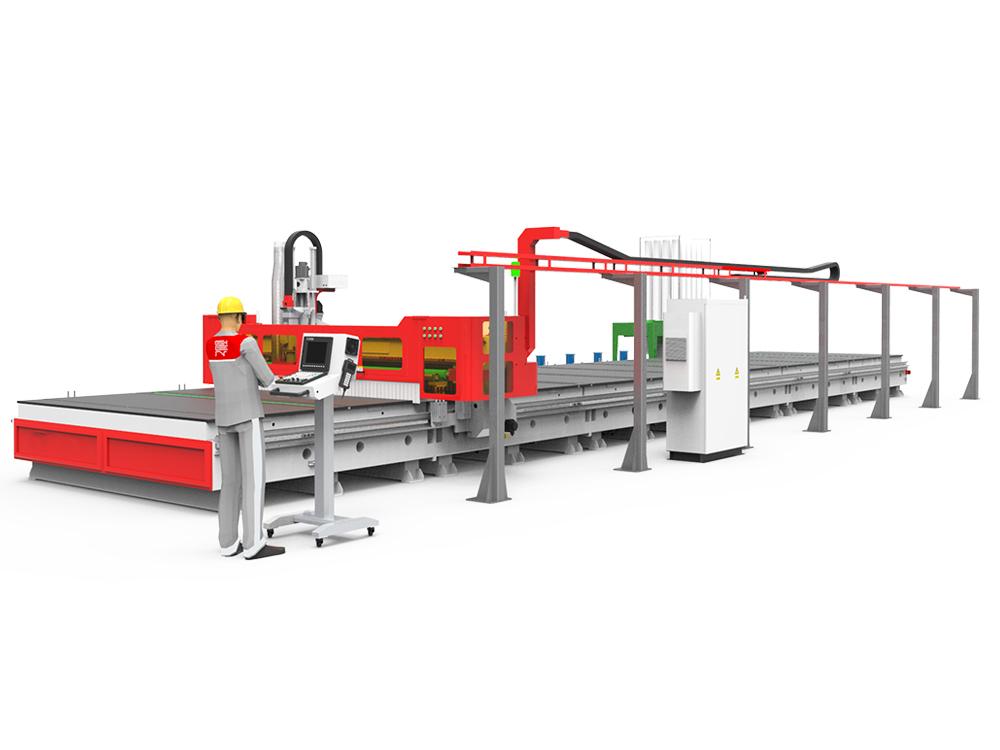

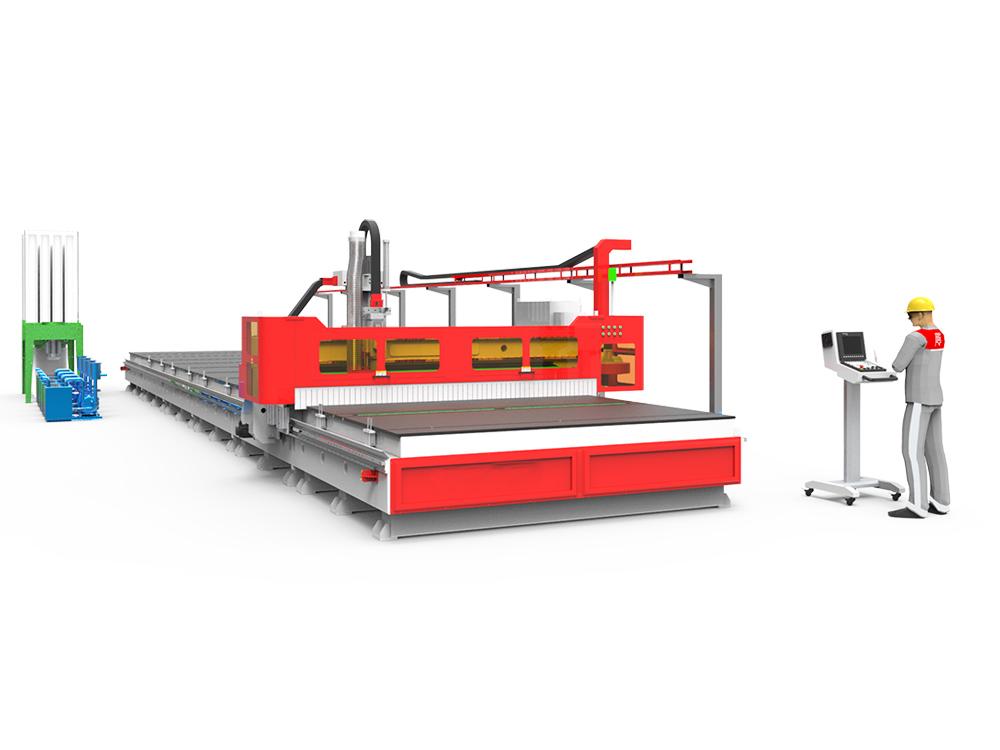

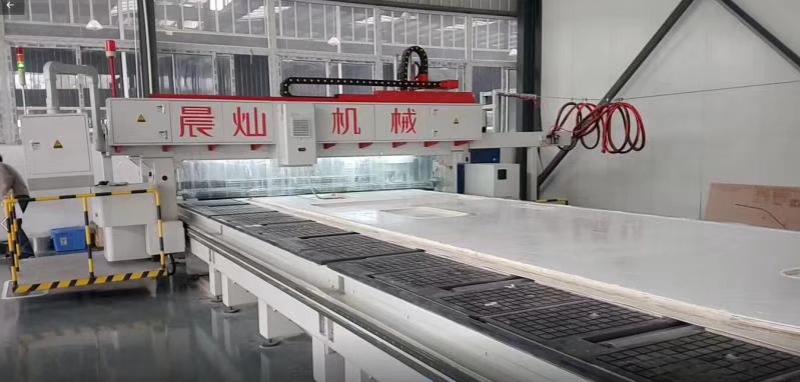

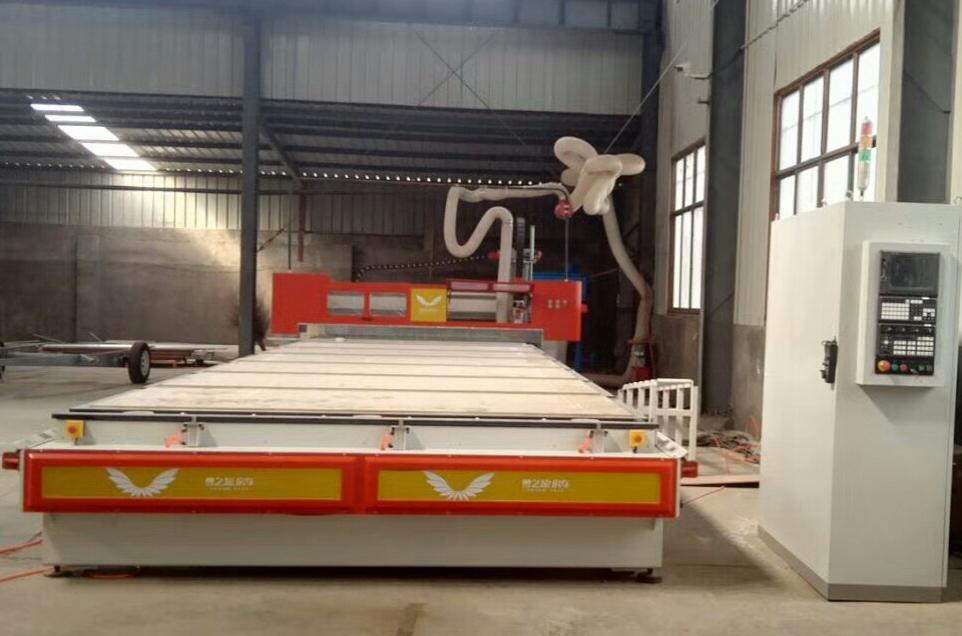

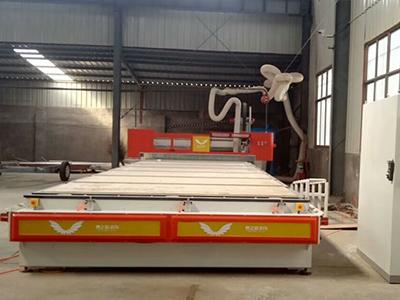

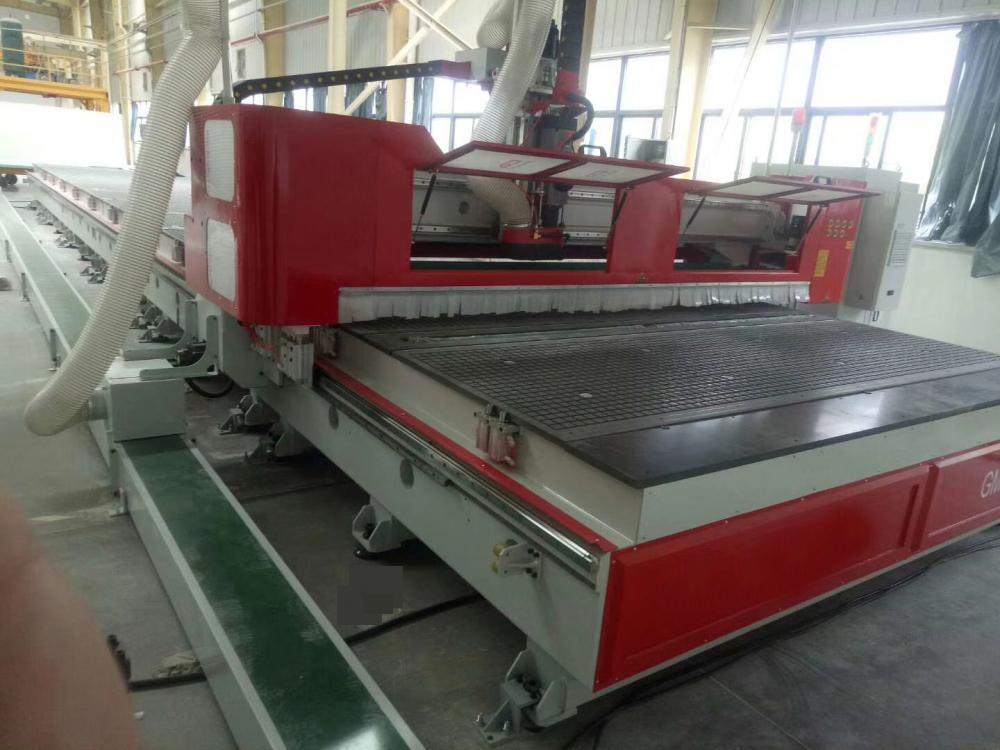

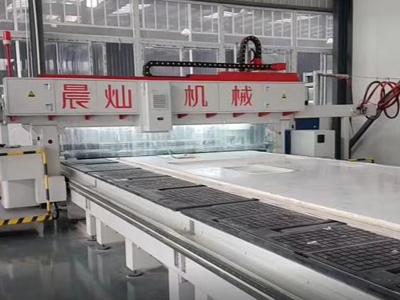

• The extra-large CNC cutting machine will automatically load and position workpieces for a highly efficient performance.
• It features a heavy-duty frame and movable gantry.
• The mechanical spindle power ranges from 9 to 13.5kw. The high power spindle ensures a quick processing.
• The 8 position disc-type tool changer features a quick tool changing, labor saving performance, and high efficiency.
• It is equipped with YASKAWA servo motor and planetary gear reducer to ensure the processing speed and processing accuracy.
• The Taiwan Syntec intelligent control system is easy to use and supports CAD/CAM software. Workers need only minimal training, thus reducing downtime and labor costs.
• The vacuum table is manufactured using an aluminum profile and will effectively suck materials in different sizes.
• Its X and Y axis uses rack and pinion drive and Z axis uses a screw drive.

• Larger size saw blade
• Dust collection device
• Vacuum pump
• Dust extraction unit
• Pressure roller
• Pneumatic roller
• Safety light curtain
