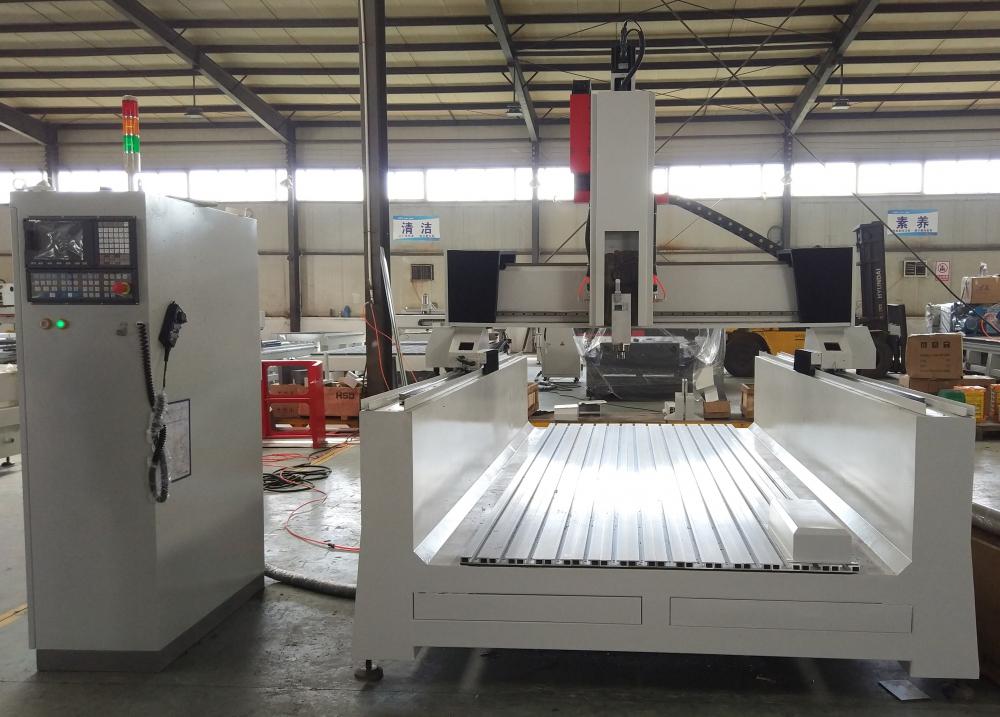

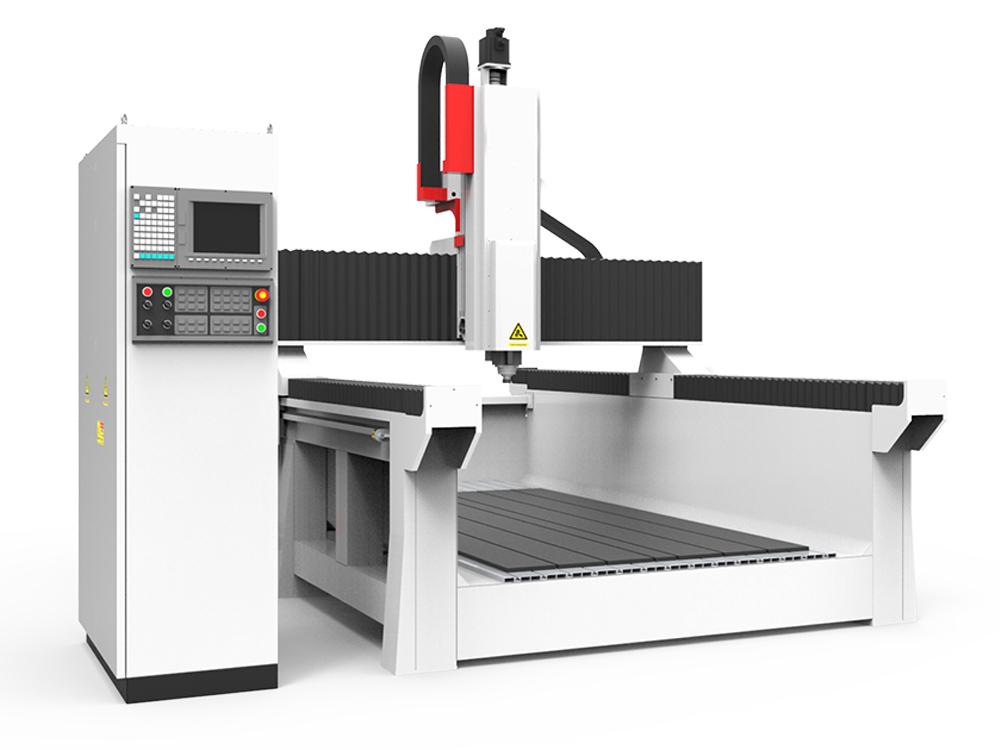

BS1325B Series 3 Axis Gantry CNC Router

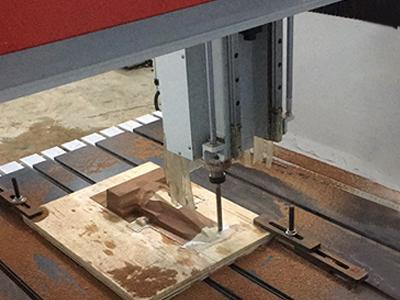

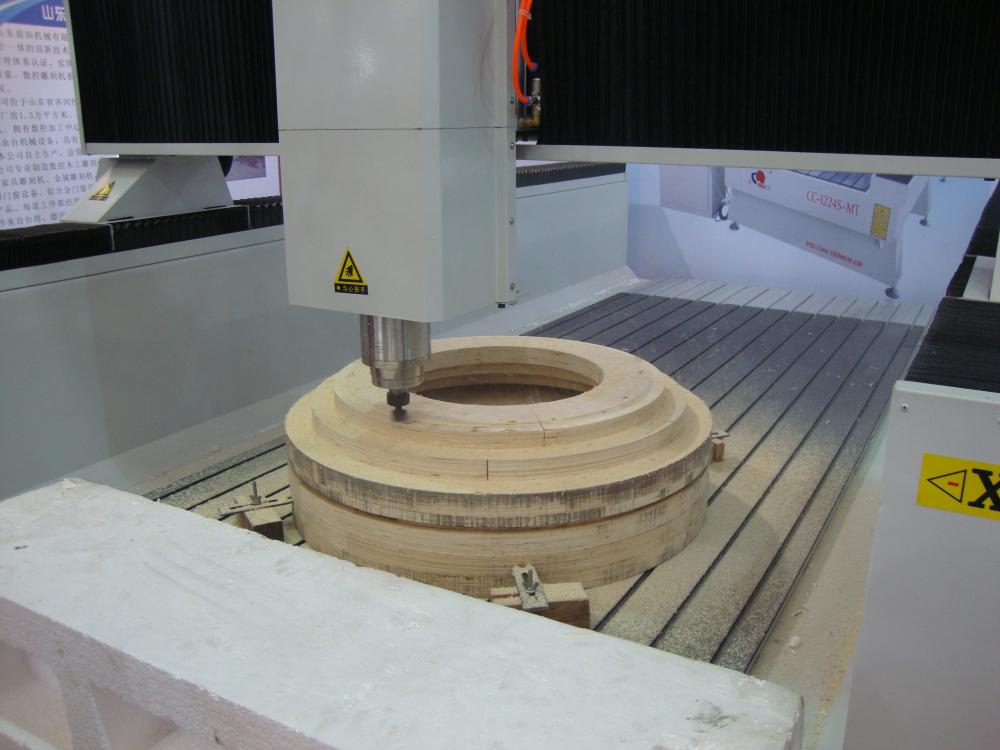

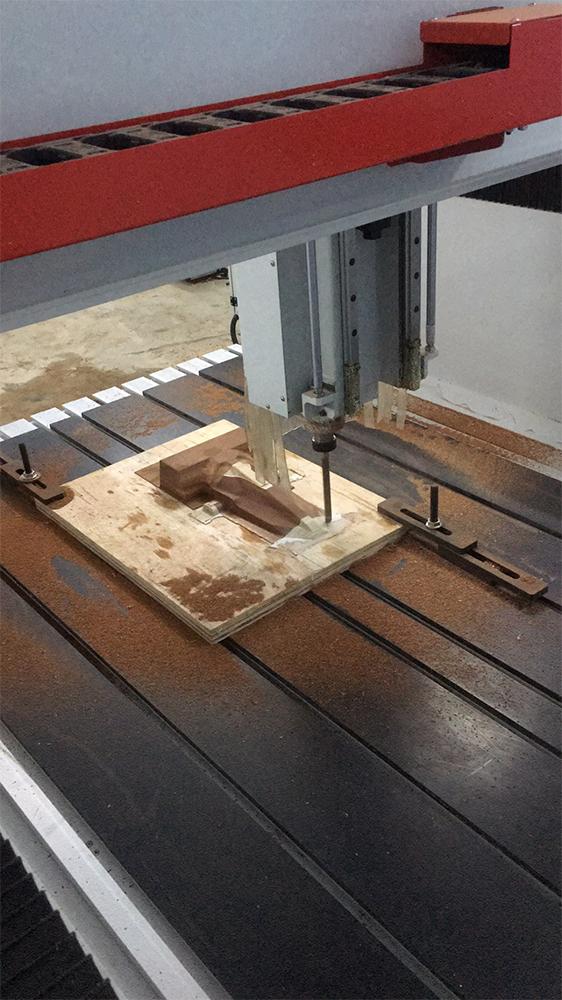

Developed for the manufacturing of small and medium wood and foam molds, the 3 axis gantry CNC router is a compact and cost-effective processing solution compatible with a variety of different materials.

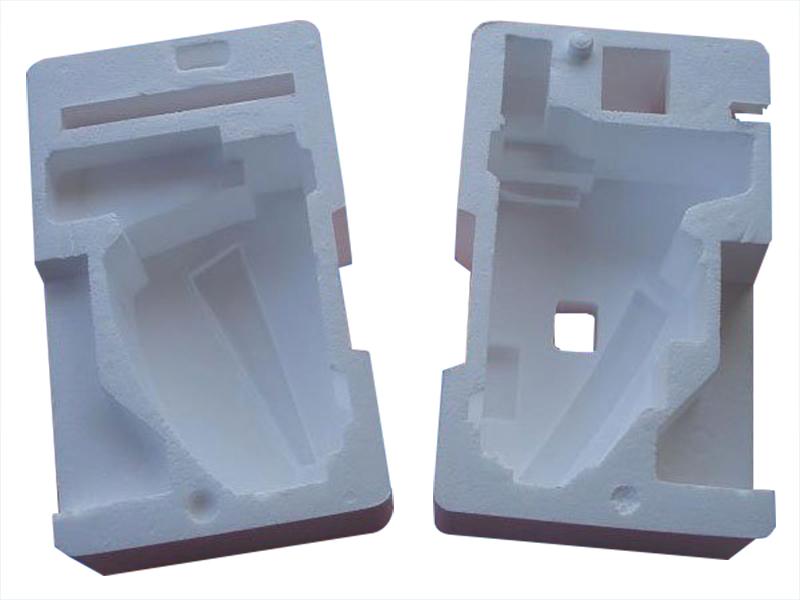

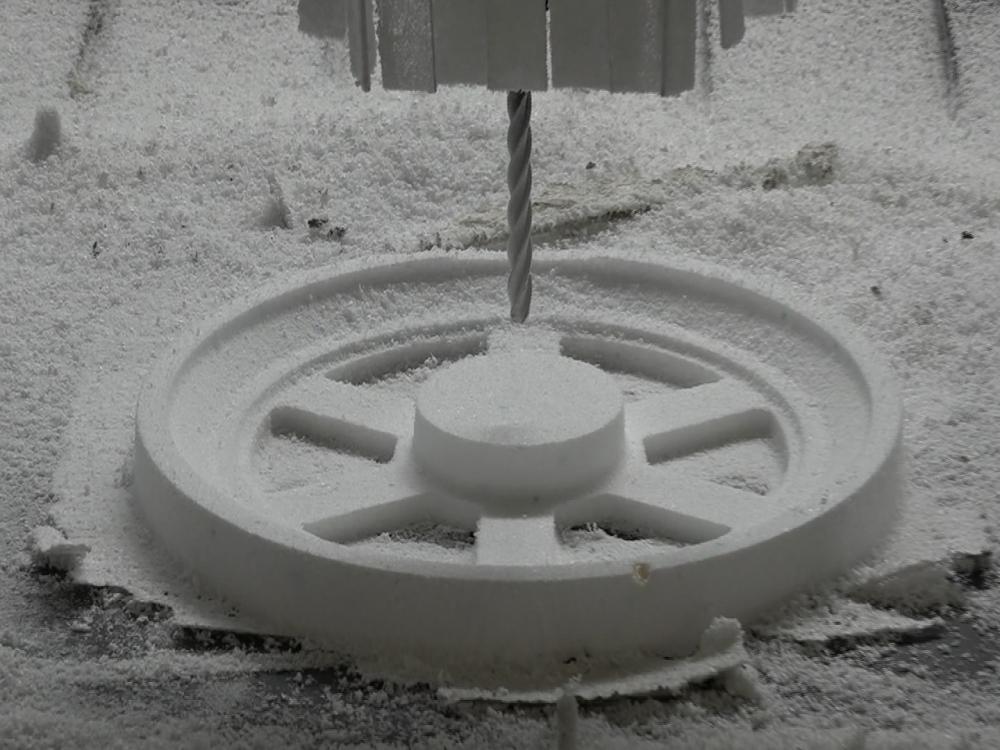

Foam, wood, carbon fiber, plastic, resin, etc.
- Woodworking industry: door, furniture, loudspeaker boxes, musical instruments, etc.
- Composite materials industry: plastic parts, FRP parts, rubber products, composite material parts, etc.

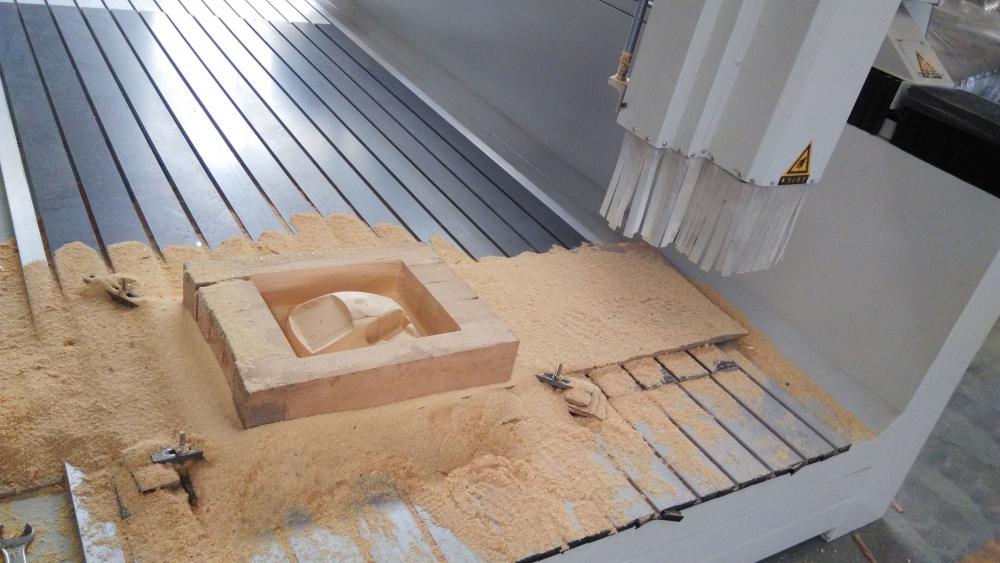

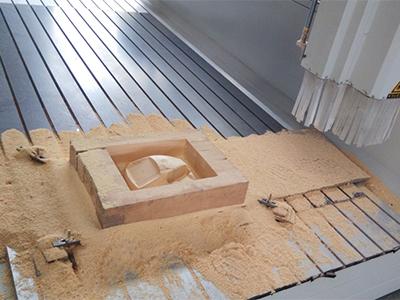

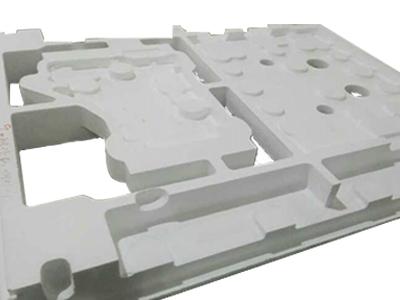

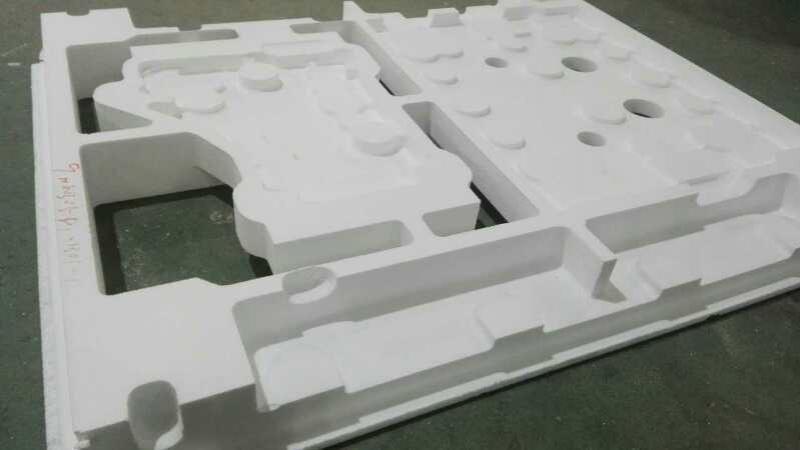

- Foundry industry: casting molds, wood molds, foam molds, etc.
- Automobile industry: automotive molds, car interior parts, auto parts molds, etc.
- Model industry: various 3D models, landscape models, exhibition models, architecture models, etc.
- Sculpture: human form sculptures, animals, plants, decorative pieces, etc.
- Film industry: movie props, activity props, etc.
- Ship industry: ship propellers, steamboat accessories, etc.

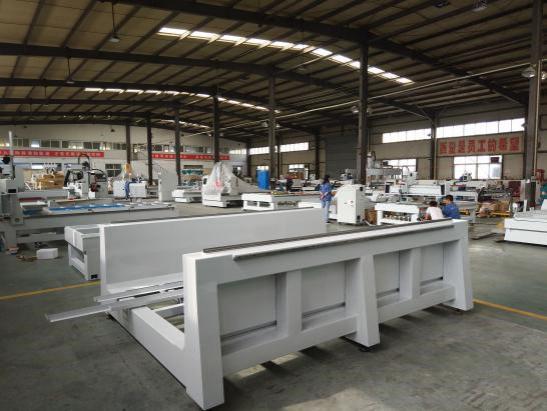

The machine body is produced from welded square tubes and the base is extremely firm to guarantee stability during operation. It can be counted on for a service life of more than 10 years.

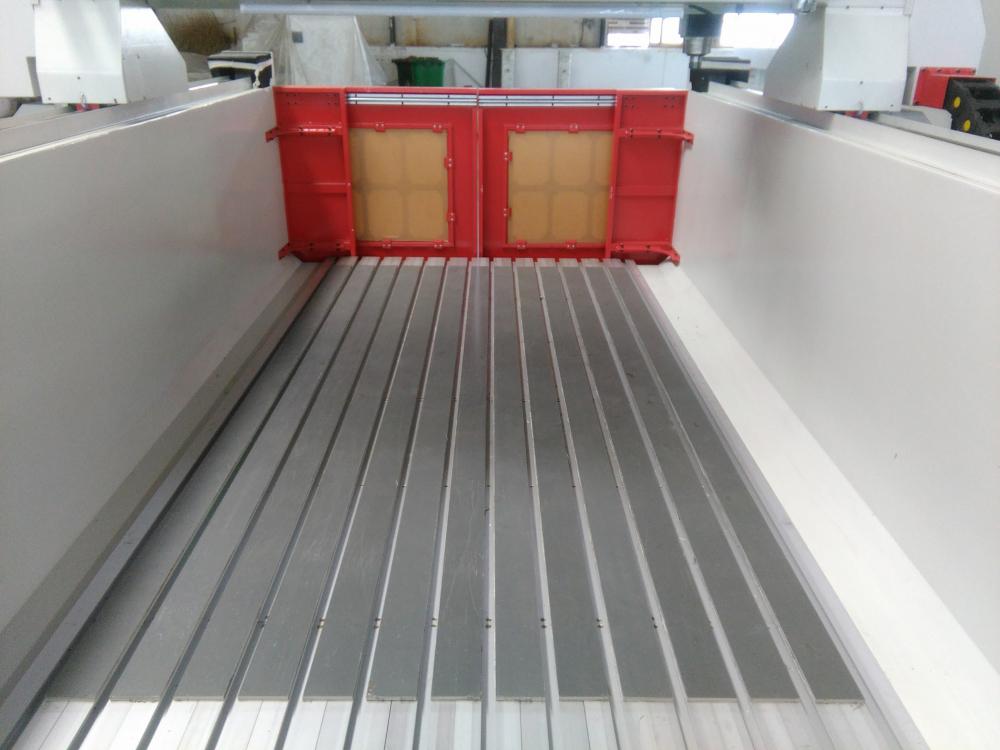

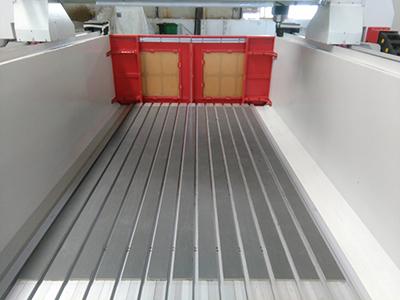

Aluminum table.

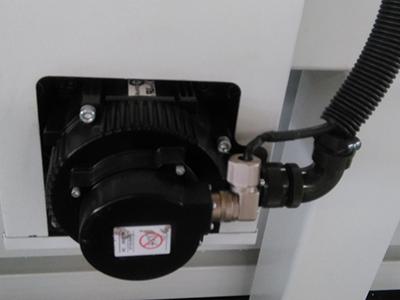

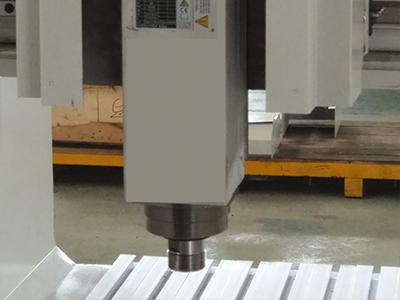

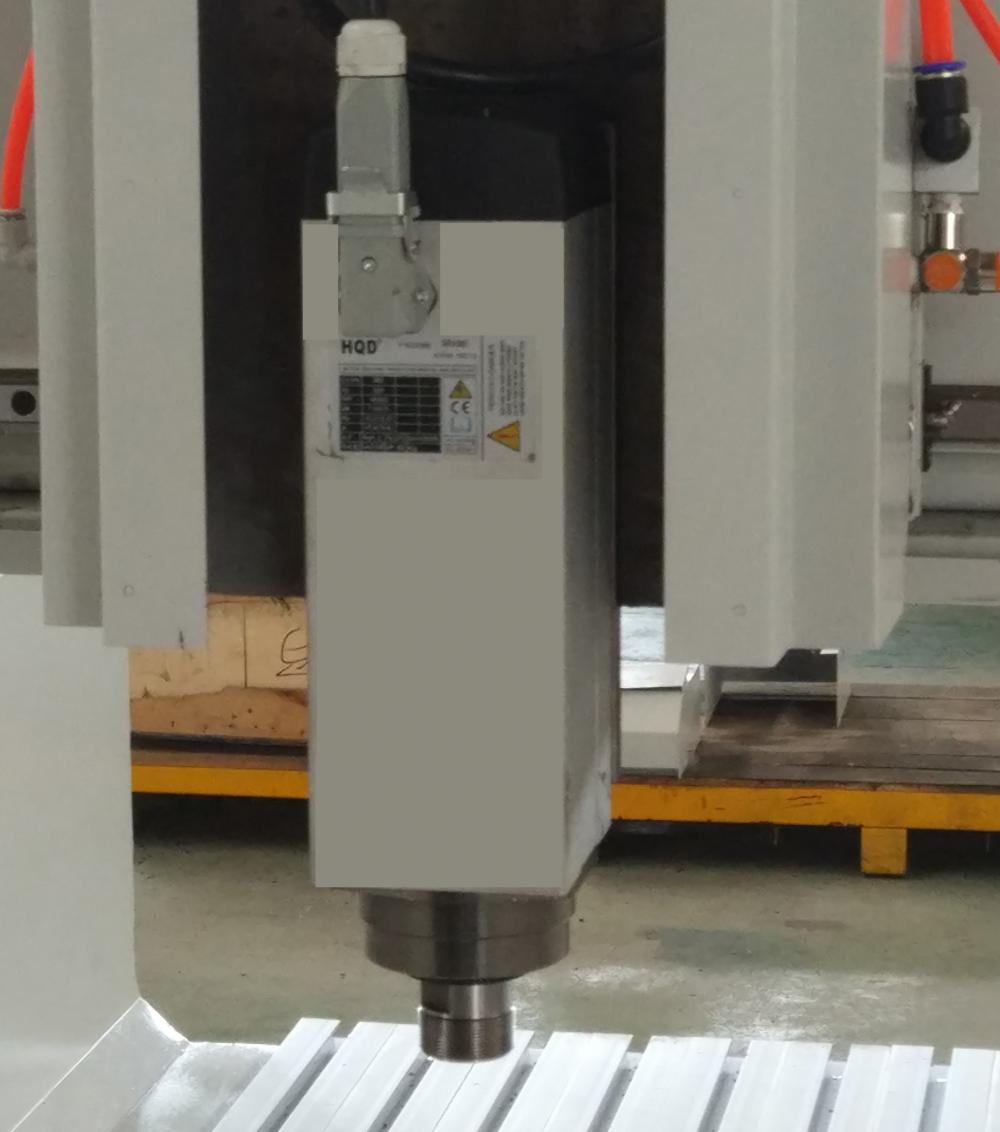

6KW air cooled spindle

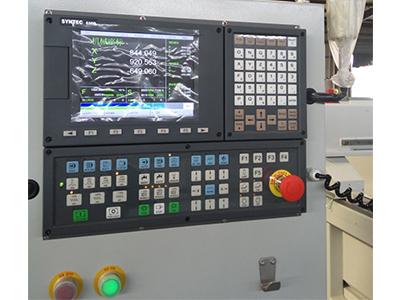

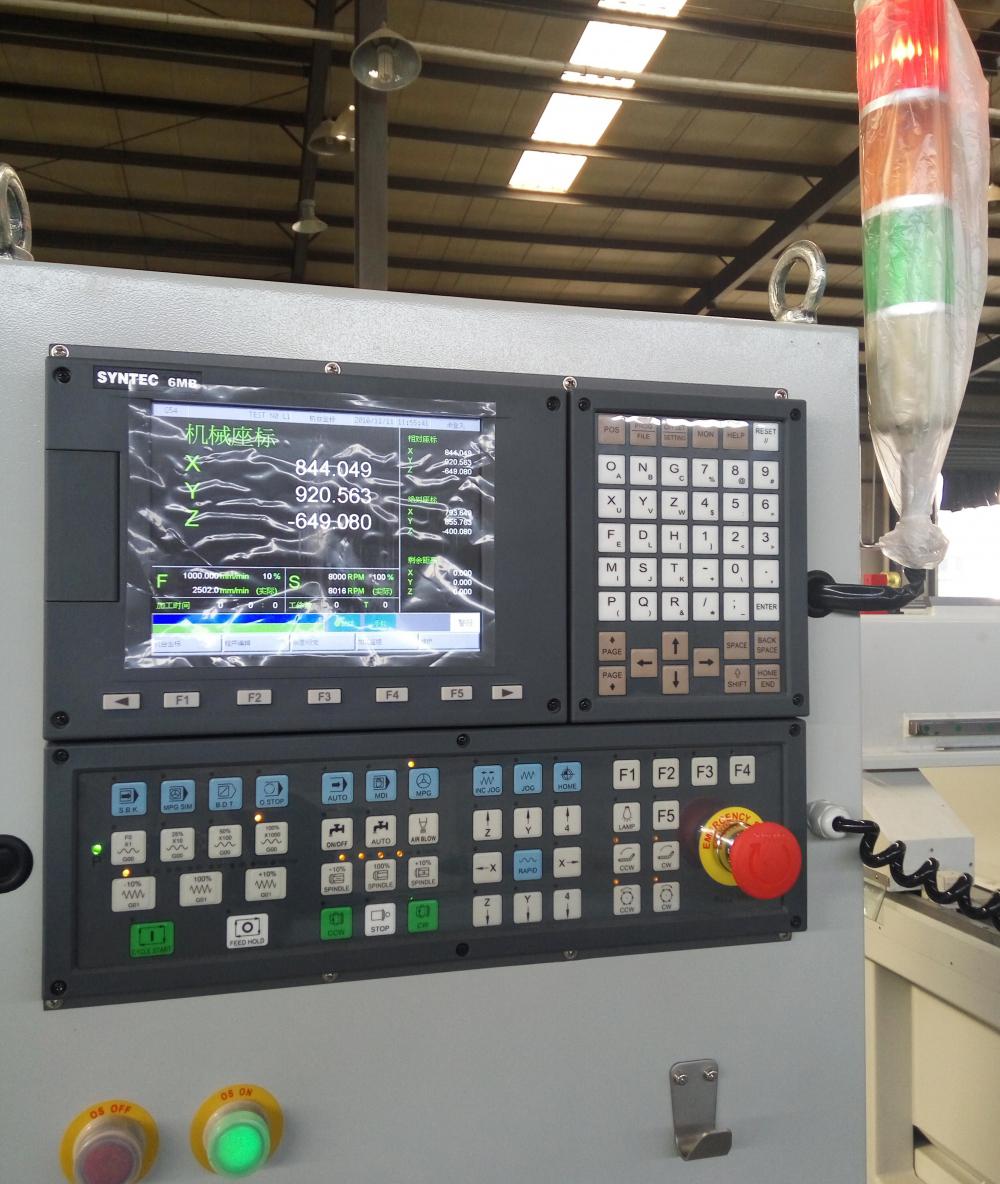

It is equipped with a Syntec control system which features a high performance processor.

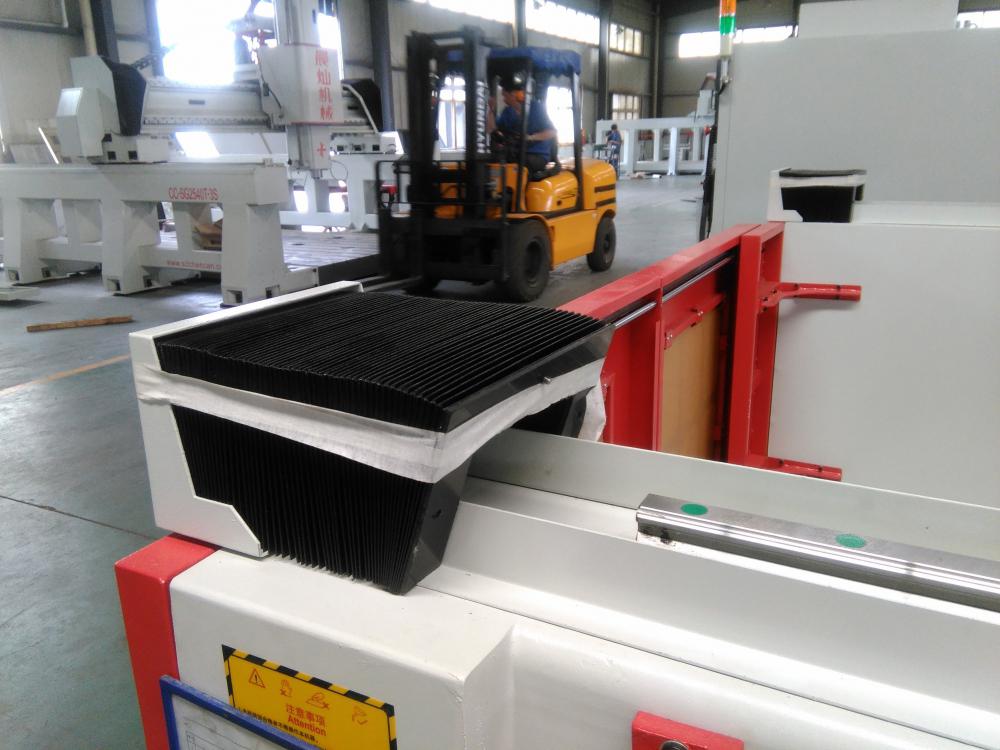

Its X and Y axis features a rack and pinion drive while the Z axis uses a screw drive.

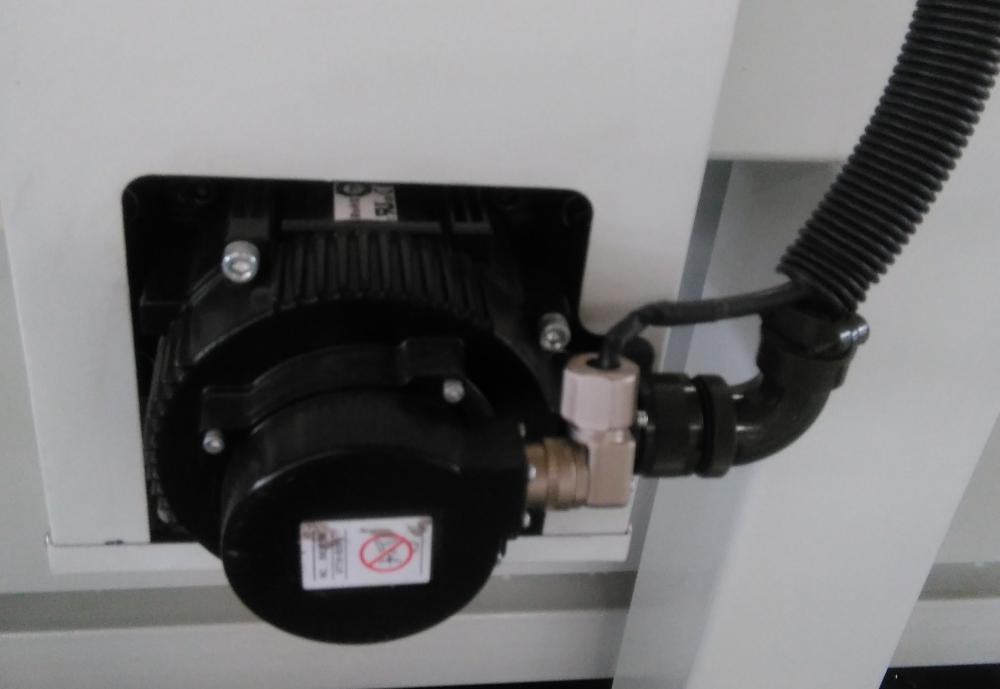

The CNC router is servo motor driven.

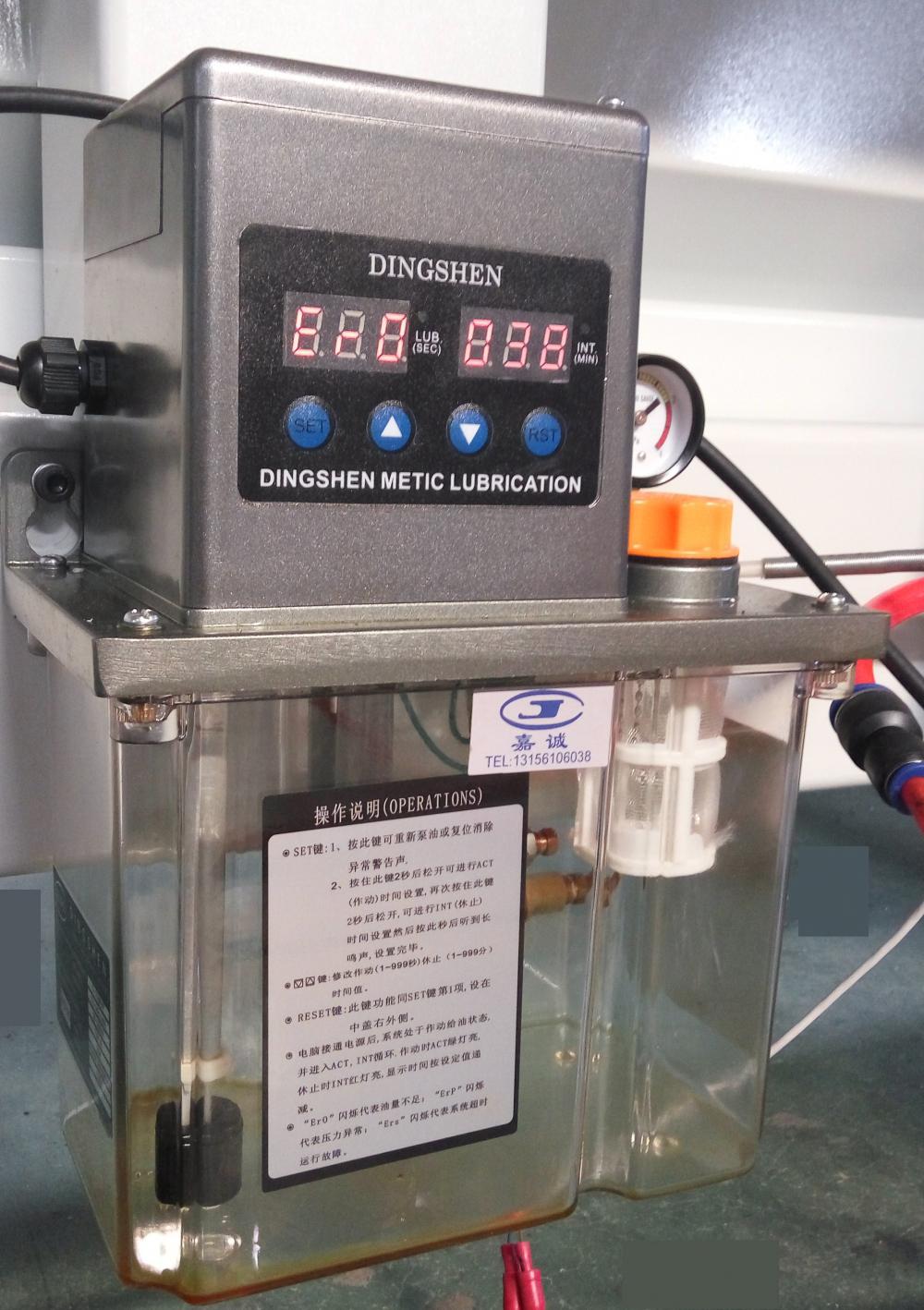

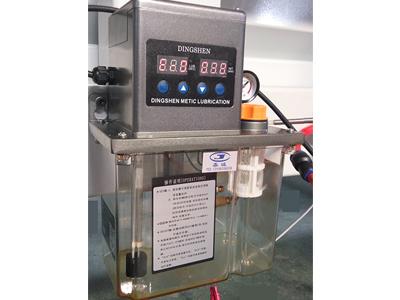

The oil lubrication system keeps the track lubricated to prolong the service life of the machine.
The oil lubrication system can automatically lubricate important parts such as the rack and screw, enhancing performance and stability.
| Series | F1-BS1325B |
| Stroke | 1300*2500*600mm |
| Idle speed | ≥30000mm/min |
| Processing speed | ≥20000mm/min |
| Spindle power | 6KW |
| Spindle speed | 18000r/min |
| File format | G Code |
| Working voltage | 380/220V 3PH (Customizable) |
| Dimensions | 3 x 4 x 3 m |
| Weights | 2000 KGS |
- Removable steel table
- 7.5KW water cooled spindle
- Vacuum cleaner
- Front protective door
