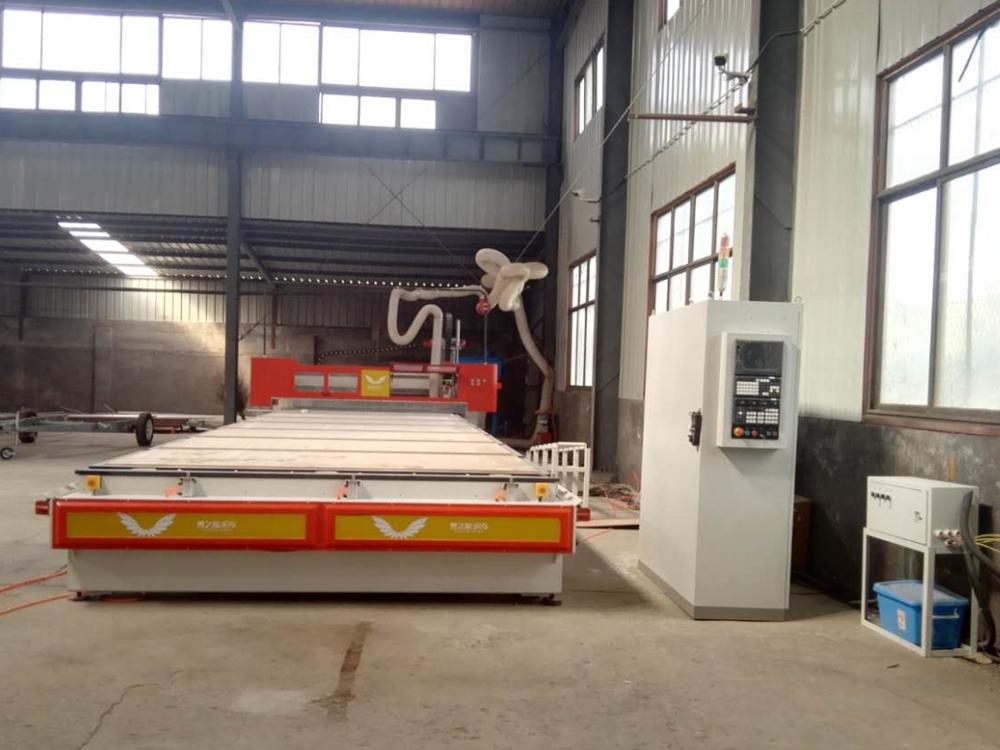

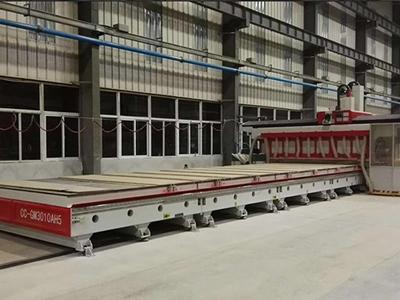

GM3010AH5 Series Extra-large Wood CNC Machine

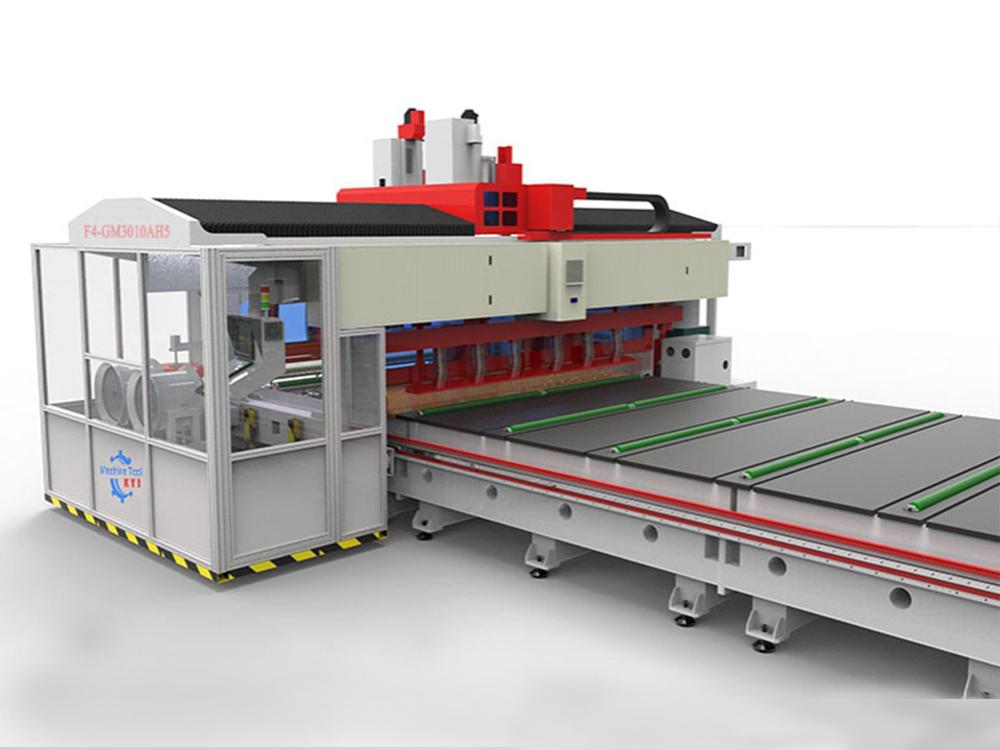

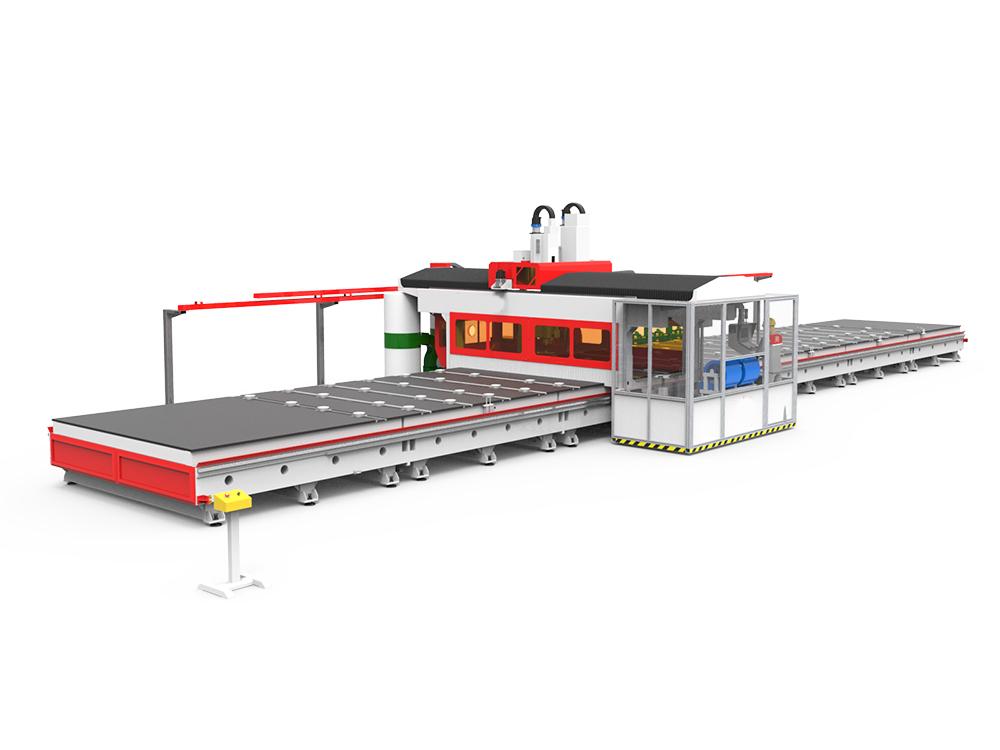

The extra-large wood CNC machine used to machine wood composite board, carbon fiber board, honeycomb composite material and more. It carries out a variety of linear and curve modelling via a 3-axis linkage process while the saw blades quickly complete linear cuts and bevel cuts on workpieces at any angle using a 5-axis linkage process.

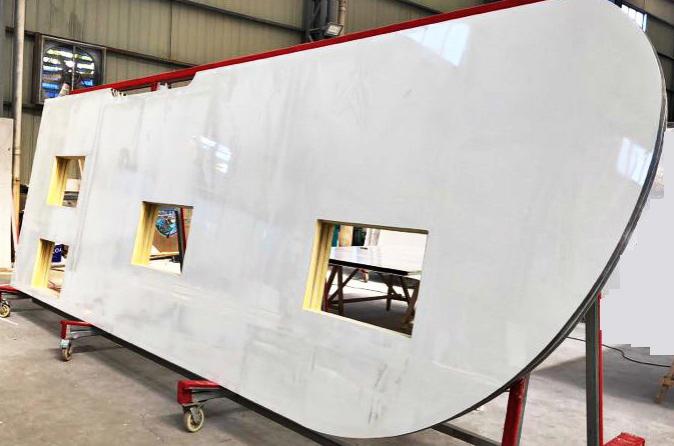

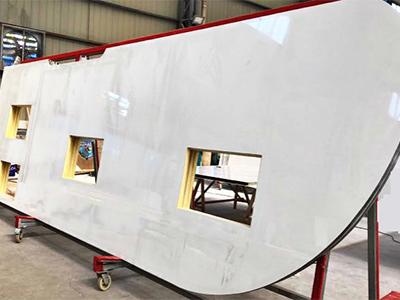

Any type of insulated composite board including wooden aluminum composite panel, aluminum foam panel, aluminum-glass fiber sandwich panel, and more.

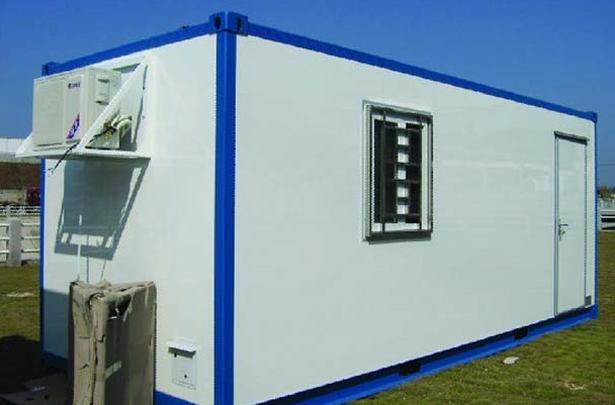

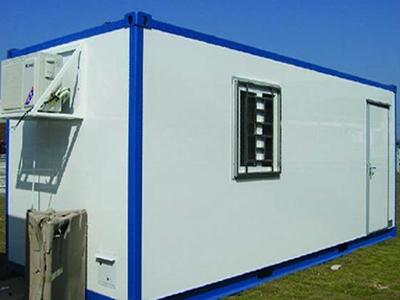

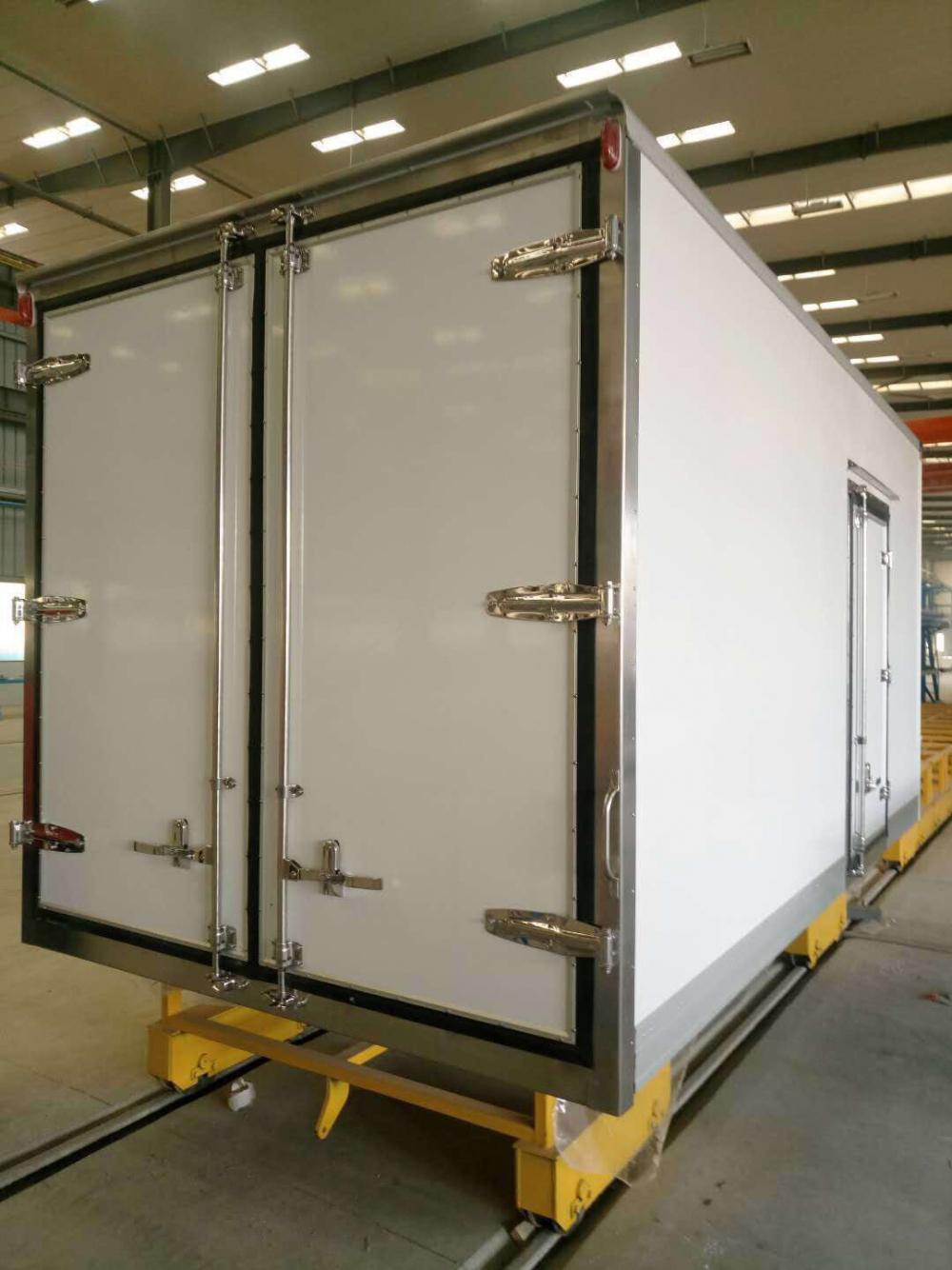

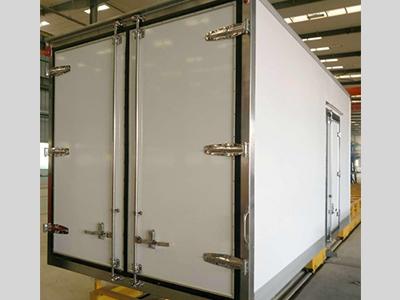

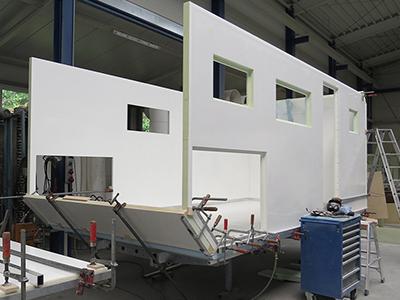

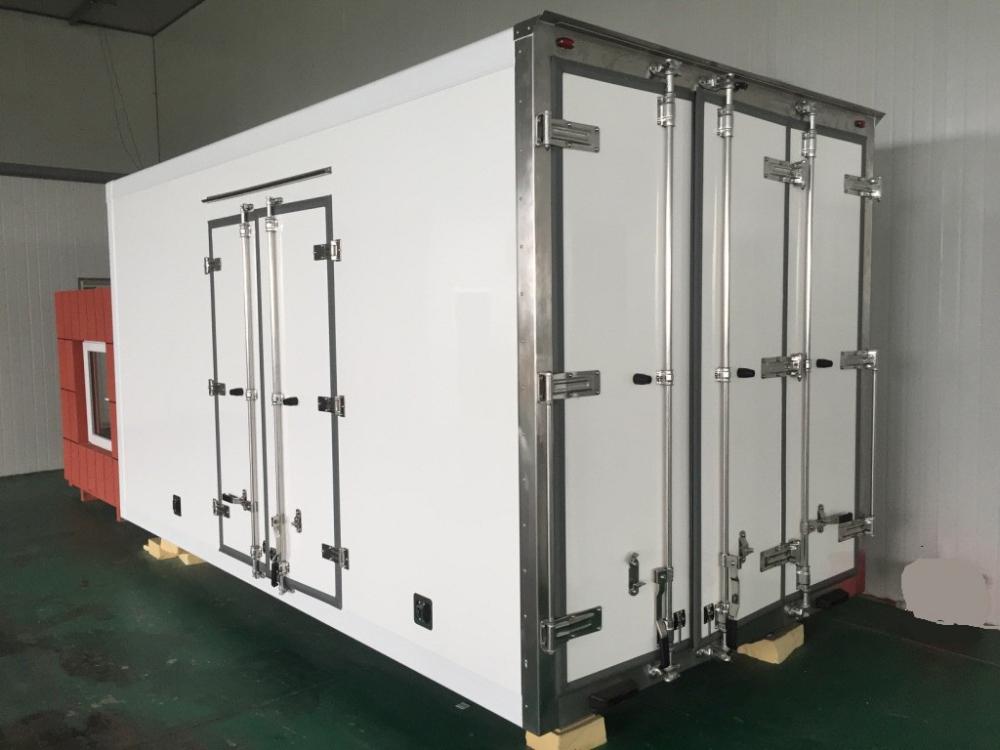

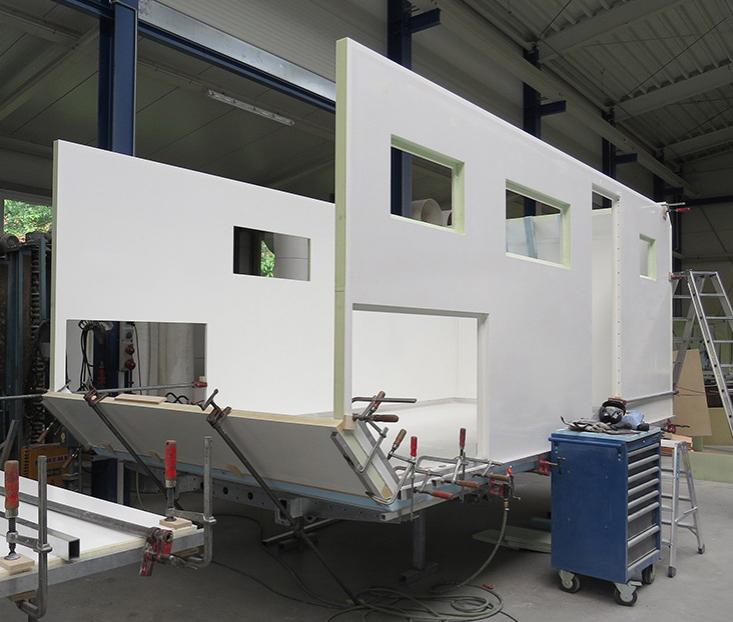

The extra-large wood CNC machine is widely used in manufacturing mobile homes, caravans, tow trucks, trucks and more.

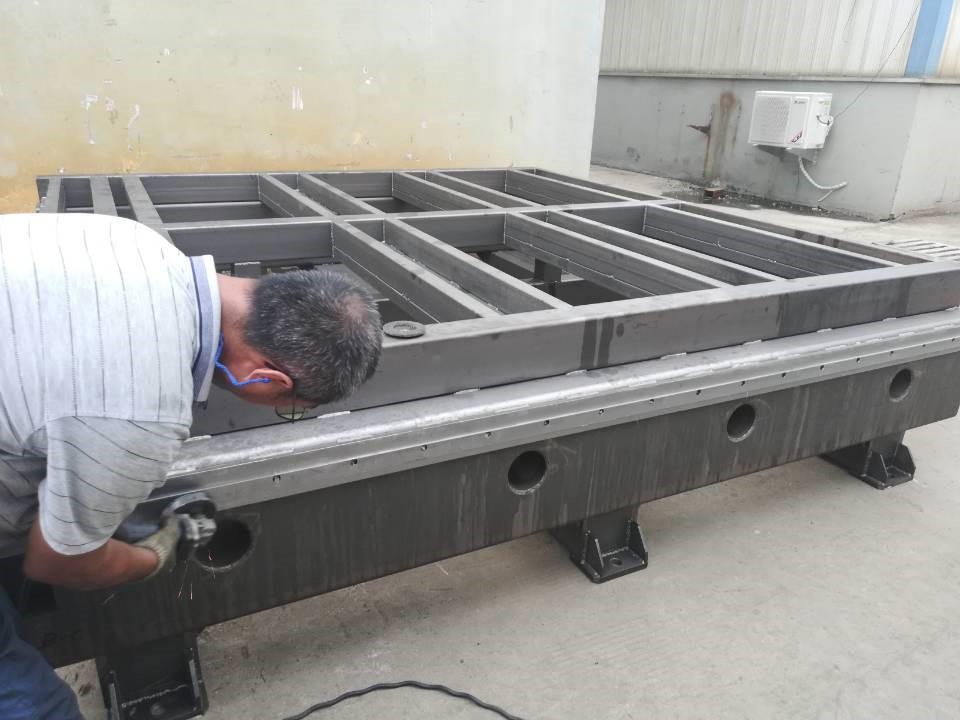

The machine body features a monolithic steel structure manufactured using a 5-face milling center (3.3*8m) that ensures the parallel degree in assembly, verticality of the three axes, and the stable machine operation.
Our workers have extensive experience in machine assembly, with an average work experience of more than 10 years. This ensures they are capable of paying attention to every tiny detail.

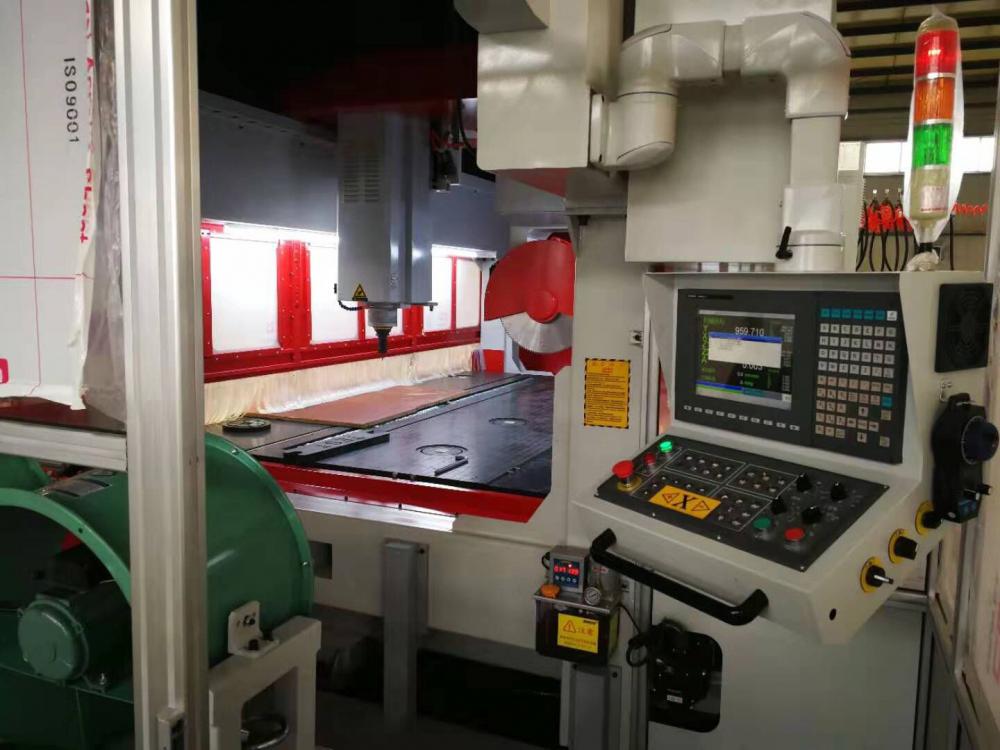

The Syntec control system features a stable, easy operation and performance.

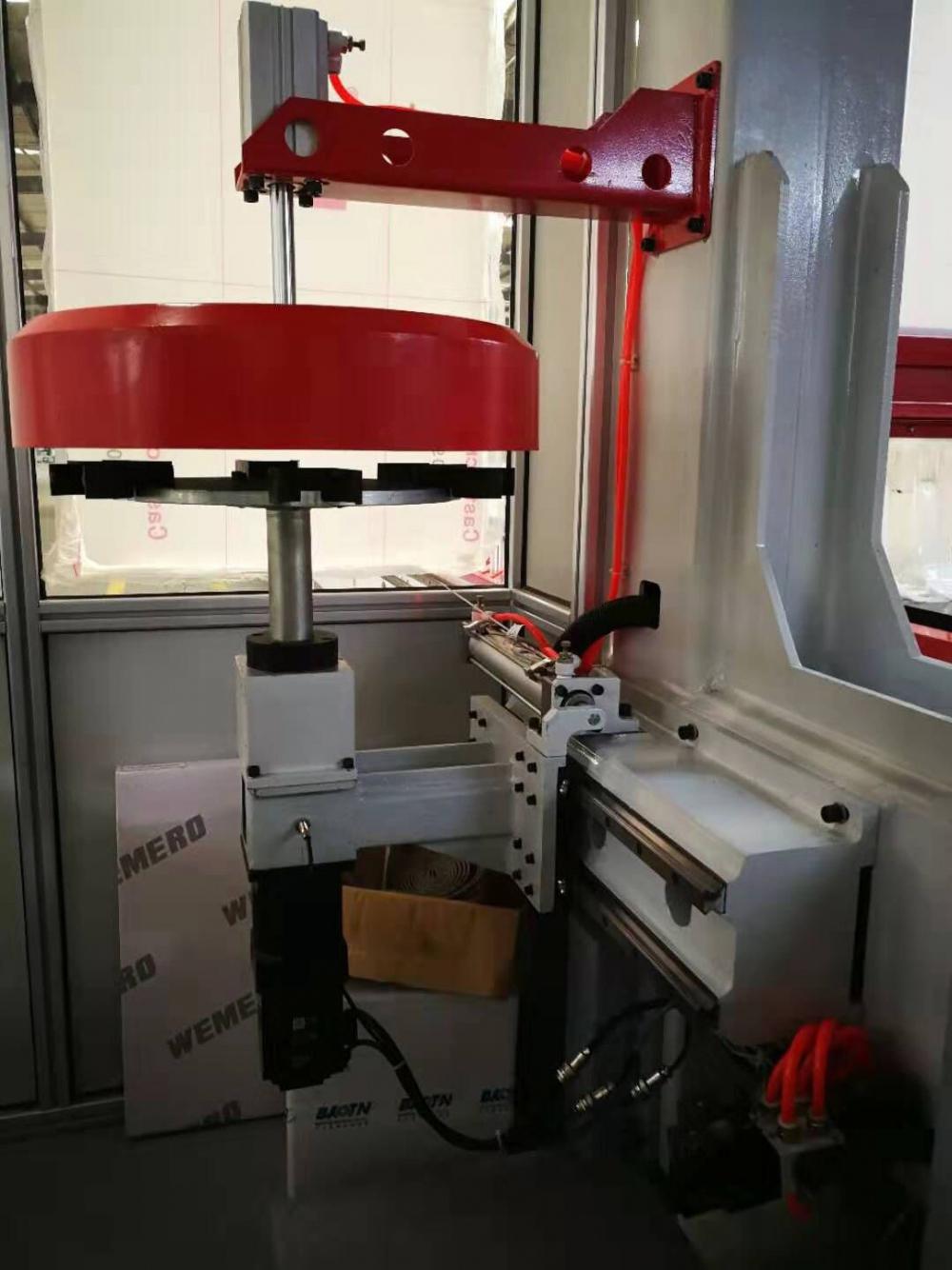

The disc-type automatic tool changer holds up to 6 tools, effectively improving processing efficiency.

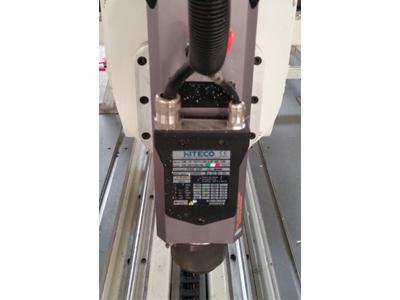

The CNC machine is equipped with 5.5KW water-cooled tool change spindle with a speed of 6000 -12000 rpm/min. The maximum shank diameter of the BT40 spindle is φ32mm. It is suitable for rapidly cutting sandwich plates.

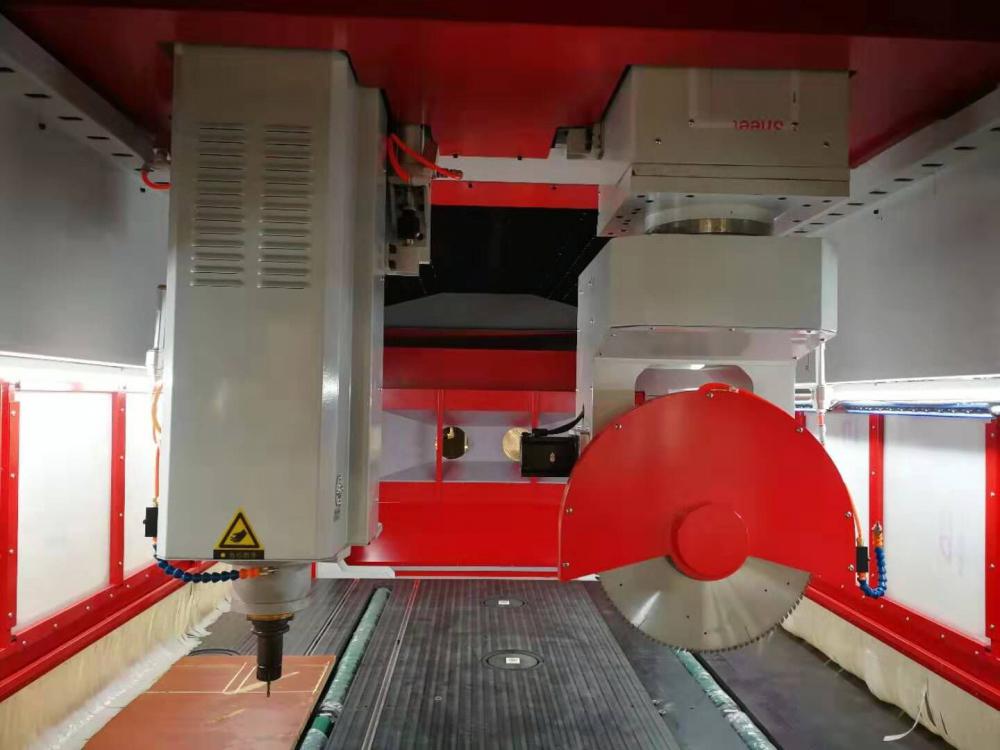

The CNC machine is equipped with a saw blade, protective shield, emergency stop switch, and oil lubrication system. The table also features a lighting system to ensure the working area is fully visible.
| Model | CC-GM3010AH5 |
| Stroke | 3000*10000*350mm （X*Y*Z axis） |
| Working area | 3000*10000*150mm （X*Y*Z axis） |
| Motor for saw blade | 7.5KW/2800 |
| Max. feed rate | X-axis≥35000mm/min, Y-axis≥35000mm/min, Z-axis≥9000mm/min |
| Positioning accuracy | ±0.1/500mm |
| Repeatability | ±0.05/500mm |
| Power | 52KW |
| Working voltage | AC 380V/50HZ （adjustable） |
| Pressure | ≥6.5Kgf/cm² |
| Package dimensions | 11500mm x 2280 x 2300mm |
| Weights | 80000 kg |
The default spindle is made in Taiwan, and can be replaced with a 9KW SCM water cooled automatic tool change spindle.
5-Face Milling
CNC Machining
Gantry Planing

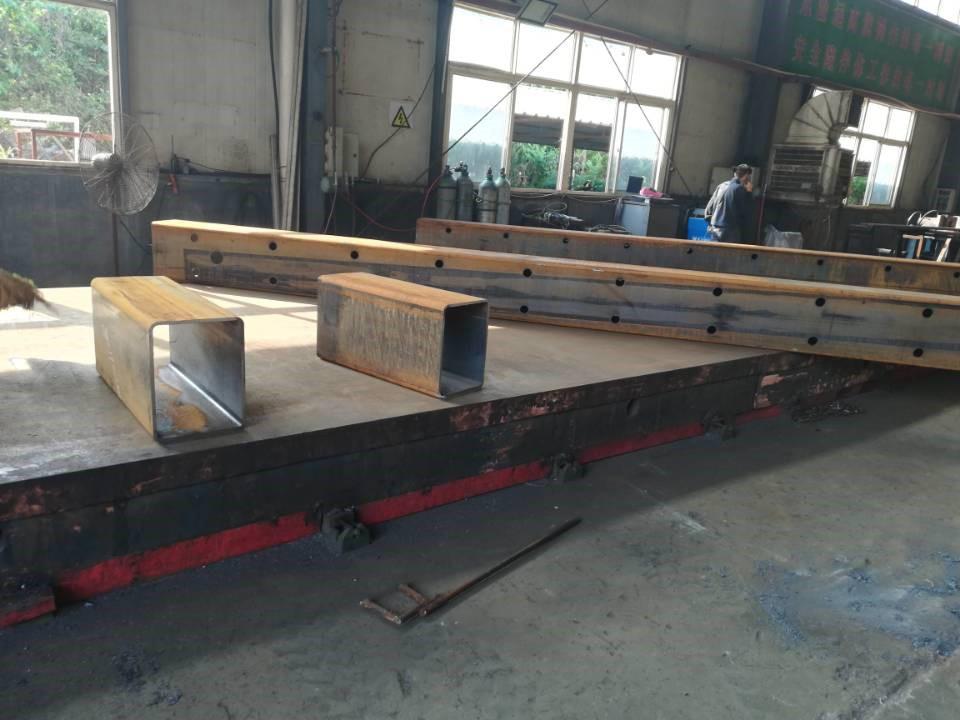

Welding
Welding
Founded more than two decades ago, Shandong PEF Machine Tool Co. is a lauded manufacturer of high-performance CNC processing machinery. Our equipment is carefully developed to provide users with incredible precision, and we are proud of their capabilities. We offer a series of 3/4/5-axis CNC routers that deliver a broad range of functions for many industries. These machines have been applied for numerous different applications, such as panel processing, parts prototyping, custom cabinets, architectural modeling, millwork, and much more. We provide a full range of standard equipment, but if your requirements are still not met, we can customize the machines to ensure you are fully satisfied. Contact us today to learn more!
