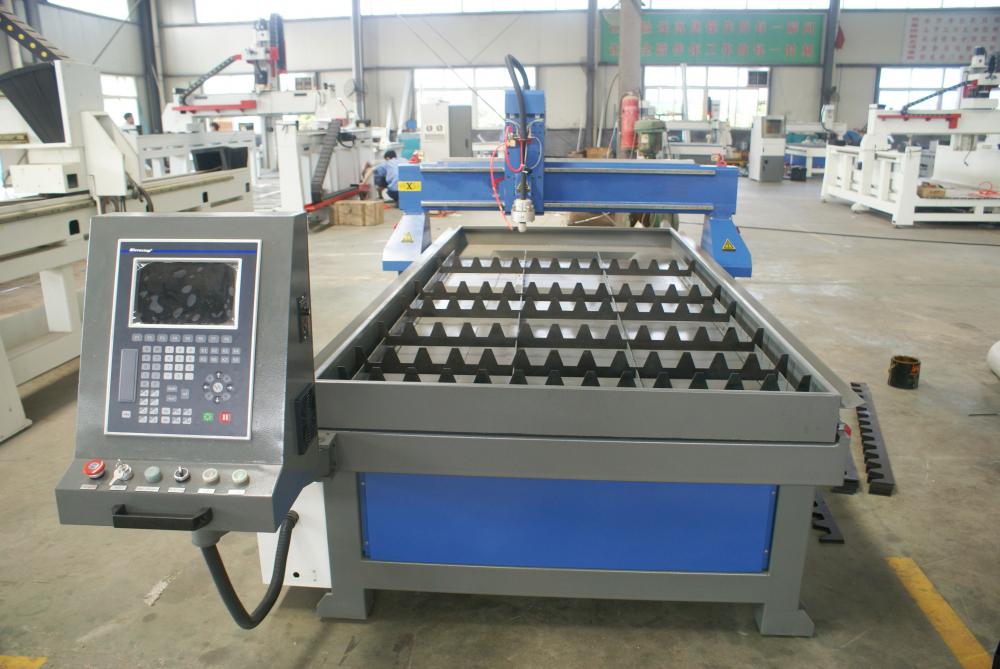

CNC Plasma Cutter-Metalworking

CNC plasma cutters are designed to cut sheet metals. They are a combination of a plasma cutter and digital control system with an excellent precision, efficiency and versatility, thereby providing an ideal alternative to traditional manual cutting.

  • Materials Cut
  • Applications
  • Features
  • Parameters
  • Optional Device
  • Gallery

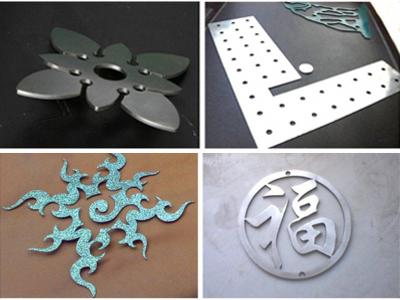

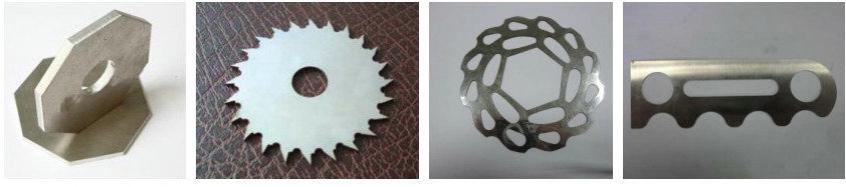

Materials Cut

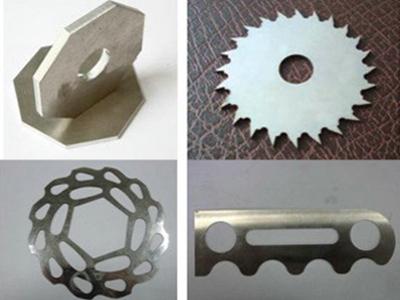

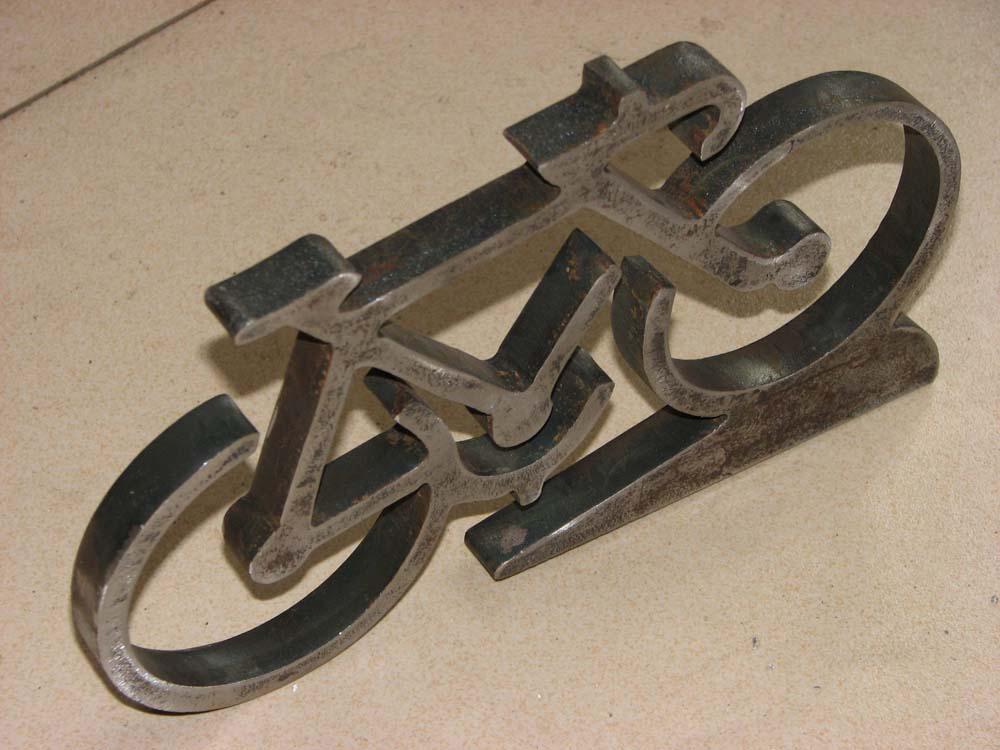

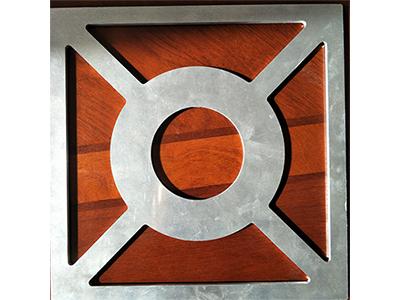

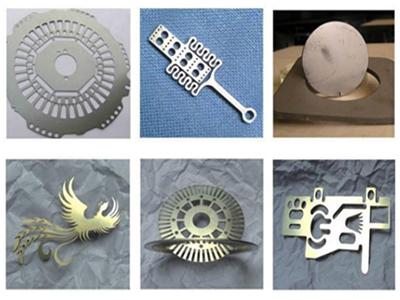

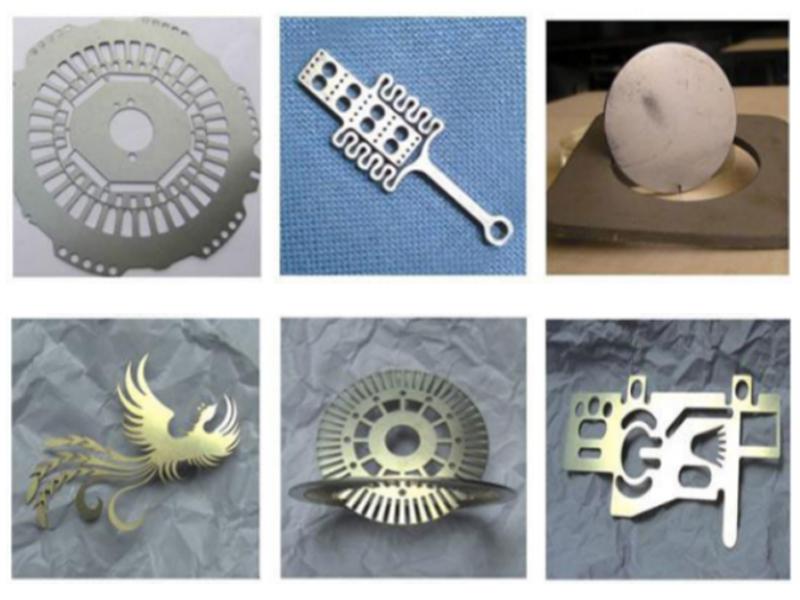

Various metal plates including steel plate, copper plate, iron plate, aluminum plate, galvanized sheet, titanium plate, and more

  • CNC Plasma Cutter
  • CNC Plasma Cutter
  • CNC Plasma Cutter
  • CNC Plasma Cutter
  • CNC Plasma Cutter
  • CNC Plasma Cutter
  • CNC Plasma Cutter
  • CNC Plasma Cutter
Applications

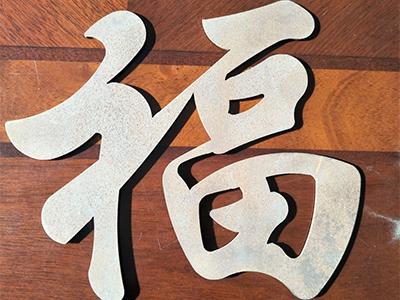

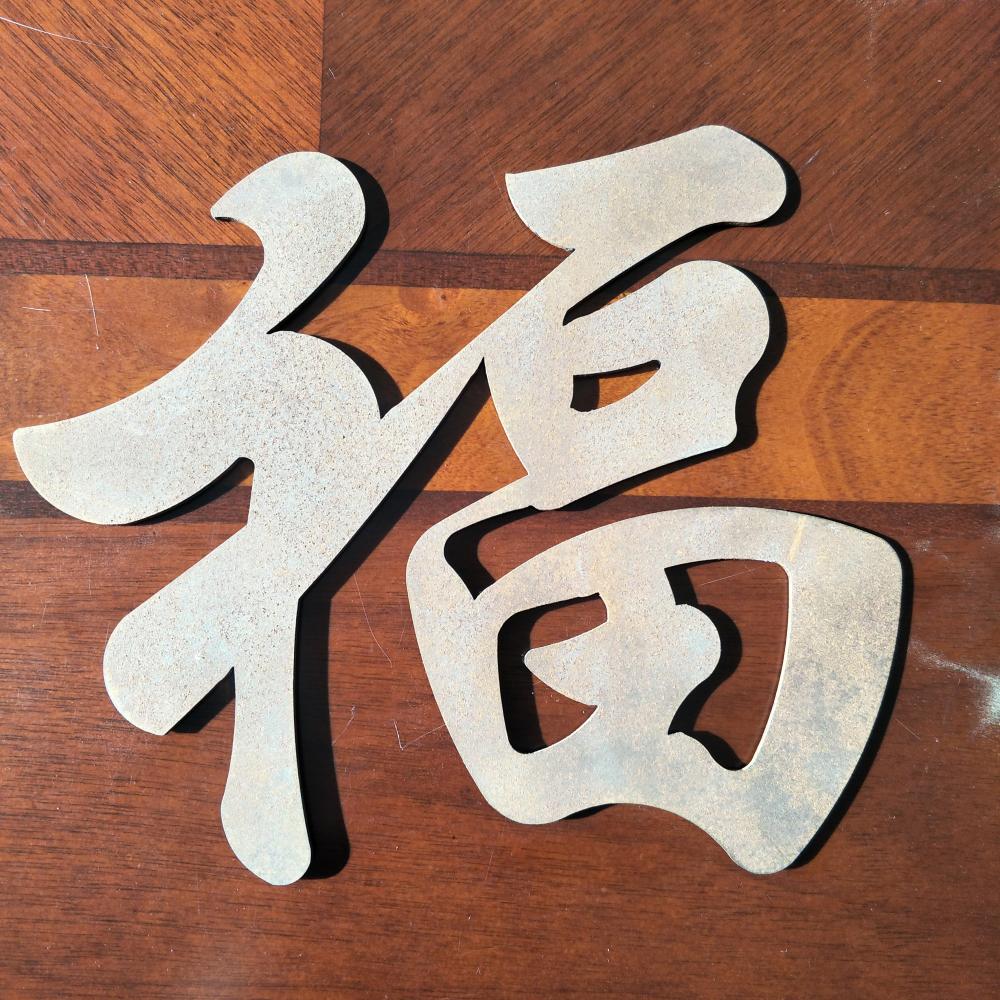

  • Advertising industry: manufacturing luminous characters, stainless steel business letters, signs and more
  • Furniture industry: manufacturing security doors, iron gates, stainless steel doors and more
  • Sheet metal industry: cutting iron plates, aluminum plates, galvanized sheets, white steel plates, titanium plates and more
Features

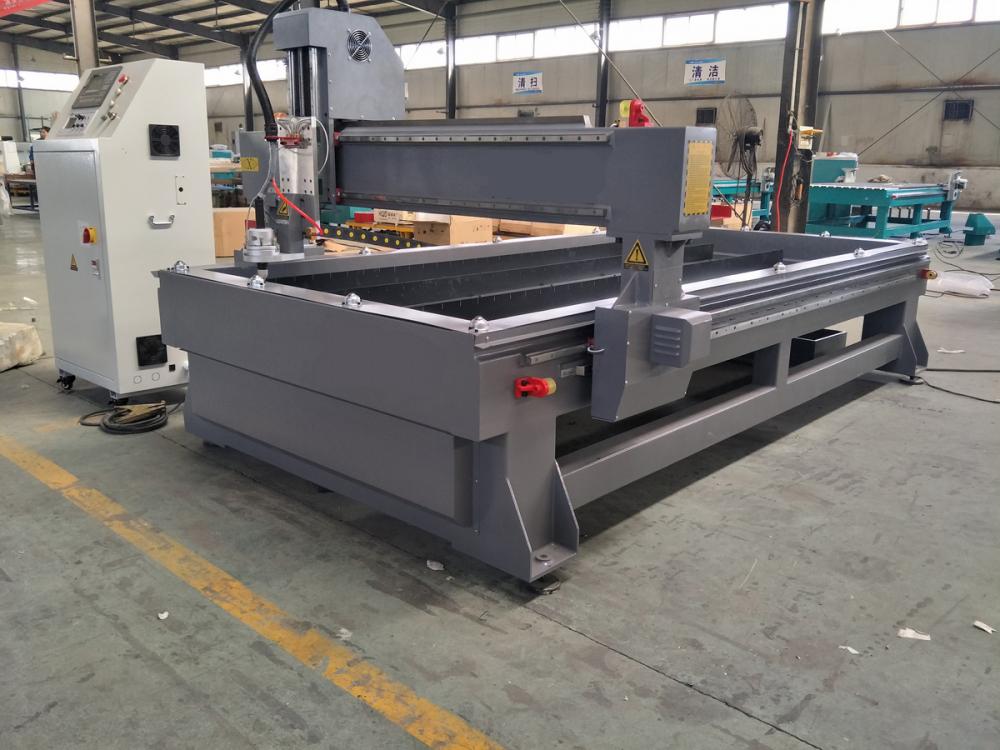

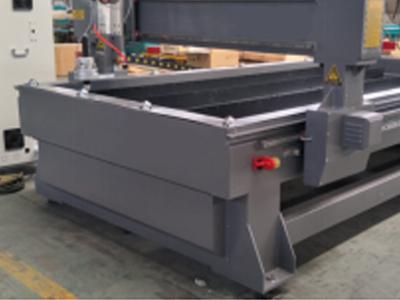

  • CNC Plasma CutterThe machine body is seamlessly welded using thick walled square steel after it has undergone a vibration aging treatment. This ensures no deformation, even after long-term use.

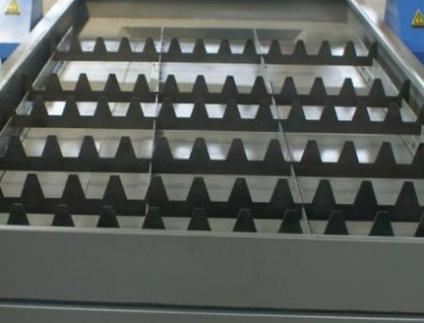

  • CNC Plasma CutterThe jagged platform is specially designed for cutting metal materials.

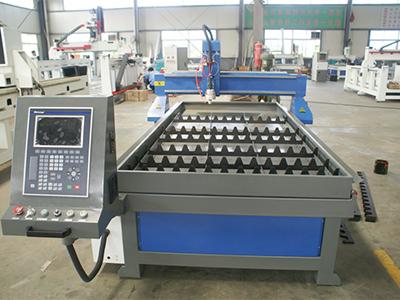

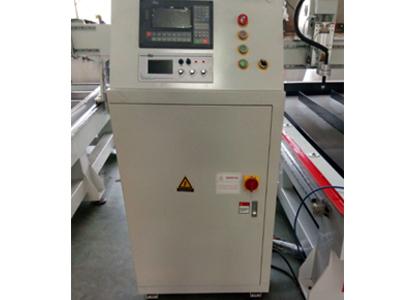

  • CNC Plasma CutterThis machine is equipped with an independent control cabinet with a high configuration, stable and easy operation. The arc ignition success rate is more than 99%.

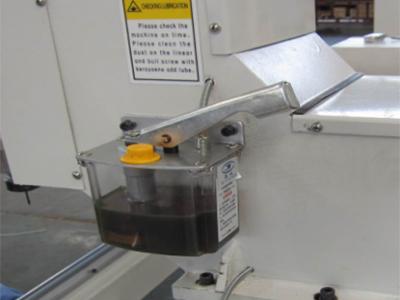

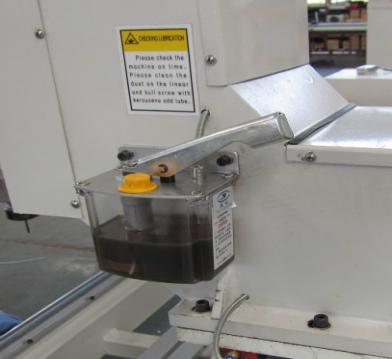

  • CNC Plasma CutterThe oil lubrication system lubricates parts to prevent rust. It is easy to use.
Parameters
Model F8-P1325 F8-P1631
Working area 1300*2500*200mm 1600*3100*200mm
Applicable Materials iron plate, aluminum plate, galvanized sheet, white steel sheet, titanium plate,
Control system CC-S3C StatAI
Processing thickness 0.5mm-25mm
Cutting Speed 0-8000mm/min
Working voltage 3 phase 380V/220v
Power frequency 50HZ
Cutting current 60A/100A/120A
File transfer method USB ports
Working mode Non-touch pilot arc
Optional Device
  • A hypertherm plasma power source of 45A/65A/85A/105A is optional.

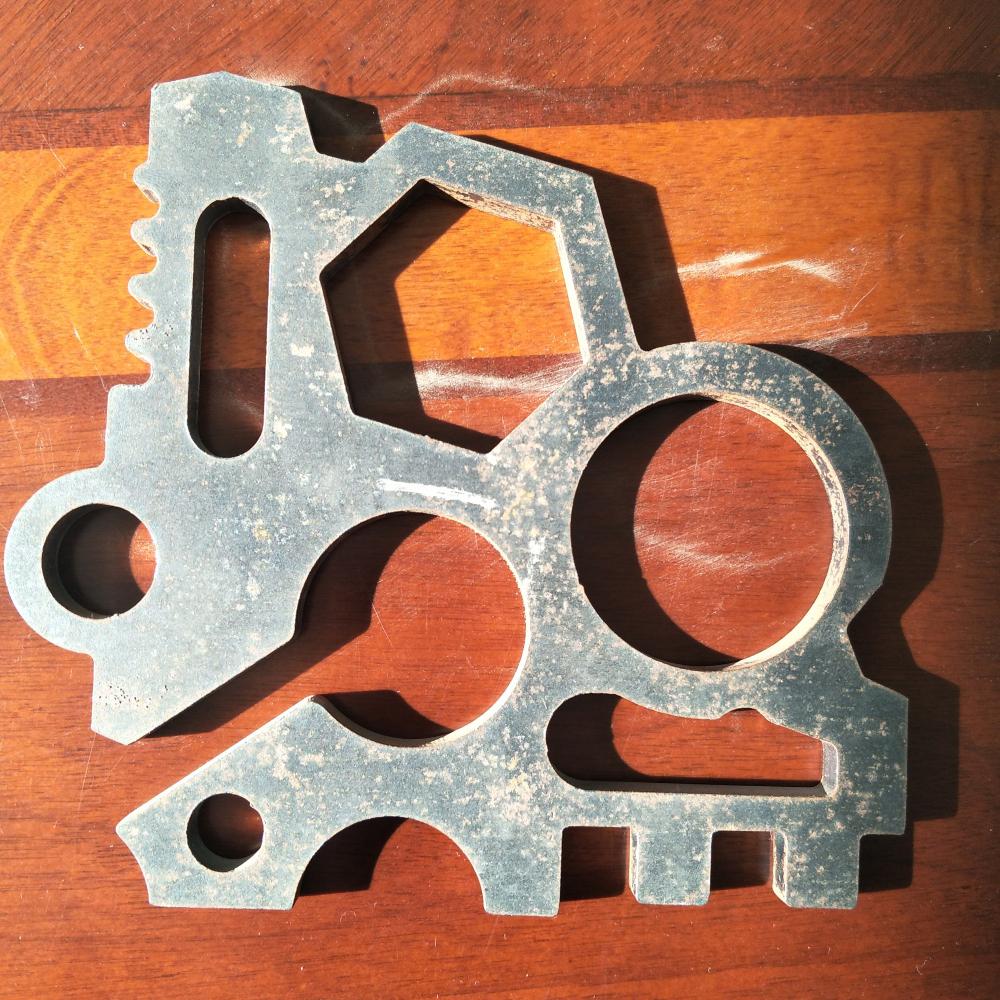

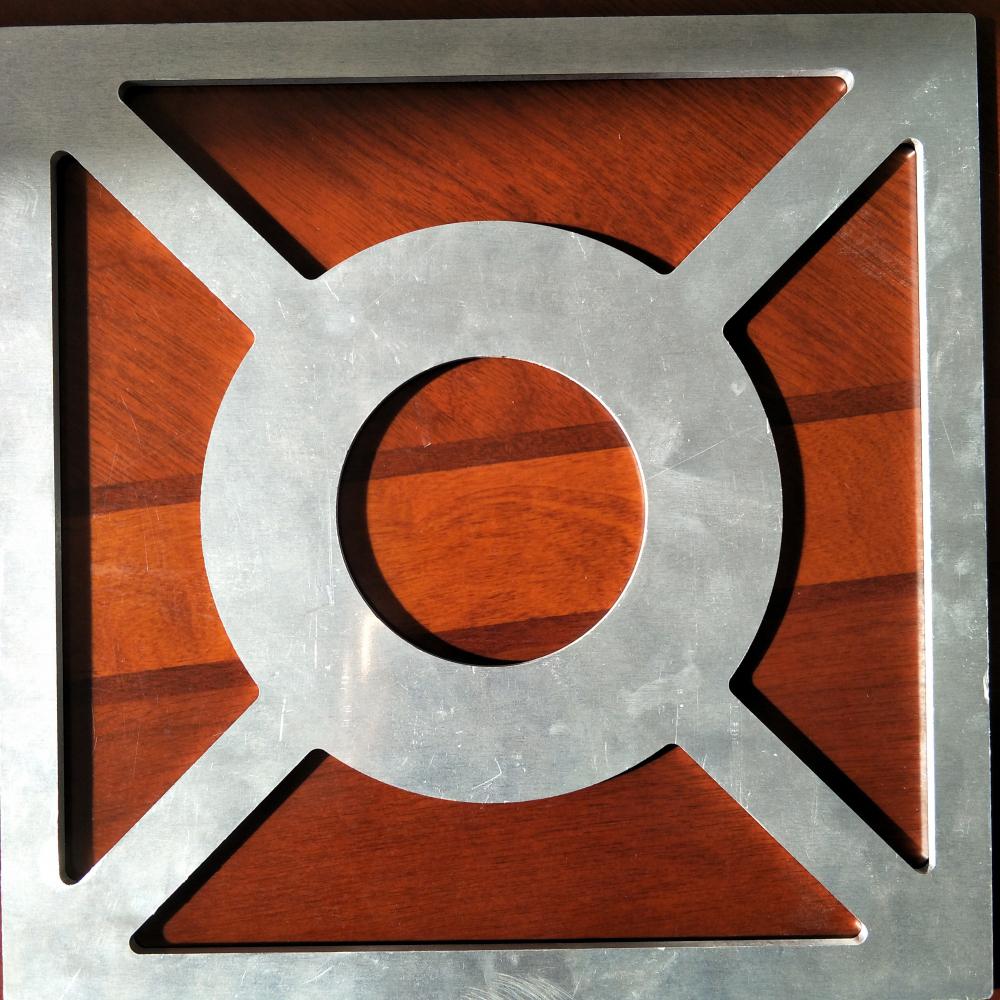

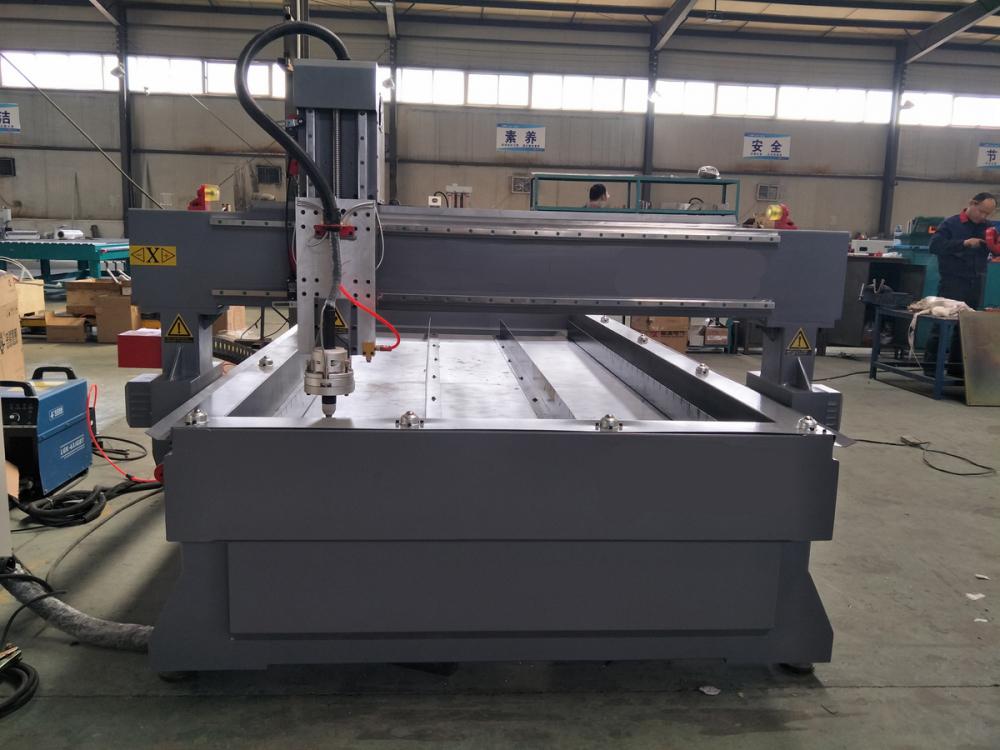

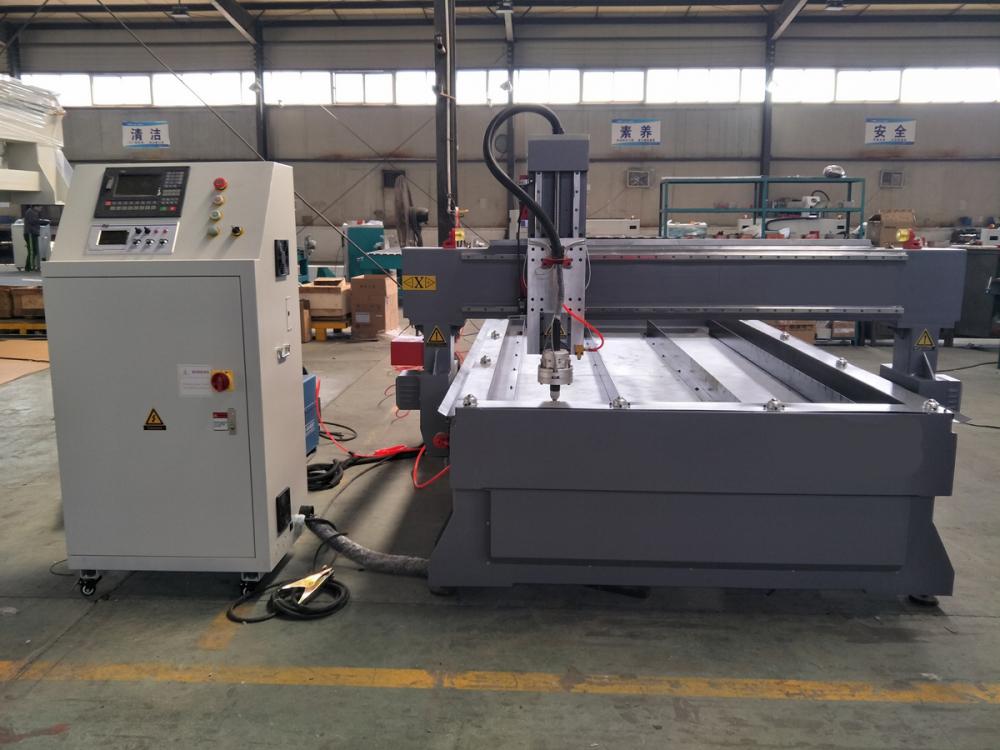

Gallery
  • CNC Plasma Cutter
  • CNC Plasma Cutter
  • CNC Plasma Cutter
  • CNC Plasma Cutter
Factory Tour
  • CNC Plasma Cutter5-Face Milling
  • CNC Plasma CutterCNC Machining
  • CNC Plasma CutterGantry Planing
  • CNC Plasma CutterWelding
  • CNC Plasma CutterWelding

Founded more than two decades ago, Shandong PEF Machine Tool Co. is a lauded manufacturer of high-performance CNC processing machinery. Our equipment is carefully developed to provide users with incredible precision, and we are proud of their capabilities. We offer a series of 3/4/5-axis CNC routers that deliver a broad range of functions for many industries. These machines have been applied for numerous different applications, such as panel processing, parts prototyping, custom cabinets, architectural modeling, millwork, and much more. We provide a full range of standard equipment, but if your requirements are still not met, we can customize the machines to ensure you are fully satisfied. Contact us today to learn more!

CNC MACHINES
    1. CNC Plasma Cutter
    2. CNC Plasma Cutter-Metalworking
    1. CNC Nesting Machining Centre
    2. Three Axis CNC Routers-Nesting

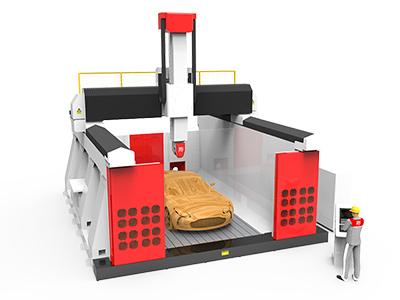

    1. 5-axis CNC Machining Center
    2. 5-axis CNC Machining Center, SF-2040T-5S Series
    1. 5-axis CNC Machine
    2. 5-axis CNC Machine, SFD-1325A-5S Series

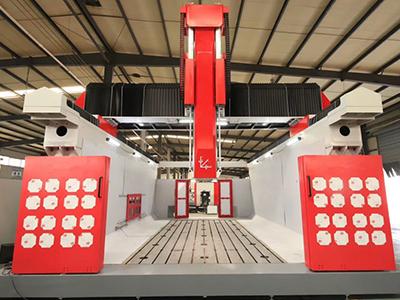

    1. 5-axis CNC Router
    2. 5-axis CNC Router, SG3565T-5S Series
    1. Gantry Moving 4 Axis CNC Router
    2. Gantry Moving 4 Axis CNC Router, SF2040Q-4S Series
    1. 4 Axis CNC Router
    2. 4 Axis CNC Router, MS1325AC4 Series
    1. Gantry Moving CNC Router
    2. B1325B Series Gantry Moving CNC Router
    1. 3 Axis Gantry CNC Router

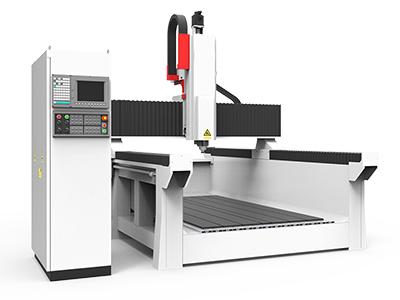

    2. BS1325B Series 3 Axis Gantry CNC Router
    1. Gantry CNC Router

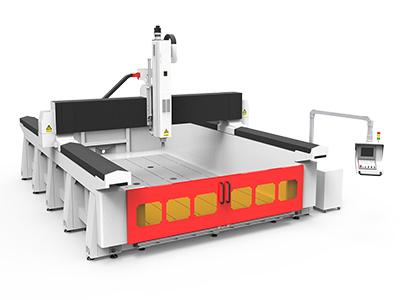

    2. SF2040Q-3S Series Large Format Gantry CNC Router
    1. 3-axis CNC Machine
    2. SFD2030Q Industrial 3-axis CNC Machine
    1. 3-axis Gantry CNC Machine
    2. SGS1525/2040T-3S 3-axis Gantry CNC Machine
    1. 12 Spindles CNC Router

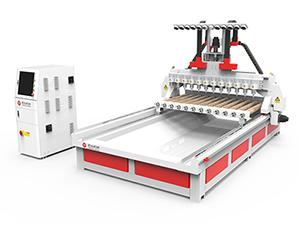

    2. KS2030K8 Series CNC Router/CNC Mill

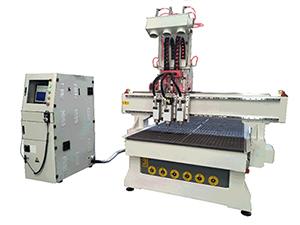

    1. 3 Spindles CNC Router

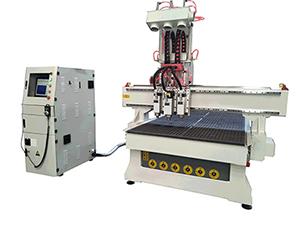

    2. M1325AS3 Series CNC Router/CNC Mill

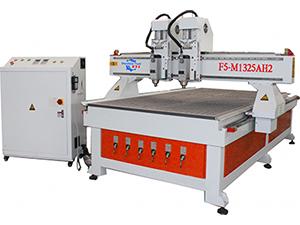

    1. 2 Spindles CNC Router
    2. M1325AH2 Series CNC Router/CNC Mill
    1. 4 Spindles CNC Router
    2. M1325AS4 Series CNC Router/CNC Mill
    1. 12 Tools CNC Router
    2. MS1325AS3 Series CNC Router/CNC Mill
    1. Economic CNC Router
    2. M1325B Series CNC Router/CNC Mill
    1. 12 Tools CNC Router
    2. MS1325AC Series CNC Router/CNC Mill
    1. 16 Tools CNC Router

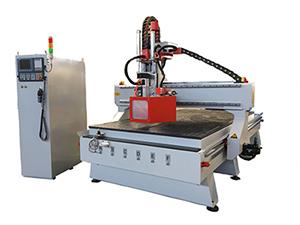

    2. MS1325AD Series CNC Router/CNC Mill

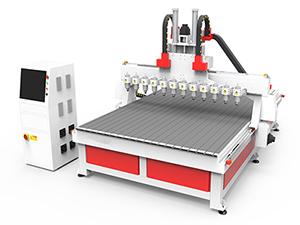

    1. 12 Spindles CNC Router
    2. MS2030BH12 Series CNC Router/CNC Mill
    1. Gantry Type CNC Router

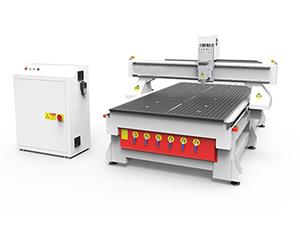

    2. M1325A Series CNC Router/CNC Mill
    1. Wood CNC Machine
    2. GM3010AH5 Series Extra-large Wood CNC Machine
    1. CNC Cutting Machine

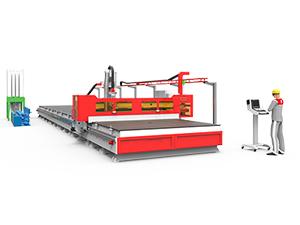

    2. GM3015AH Series Extra-large CNC Cutting Machine
