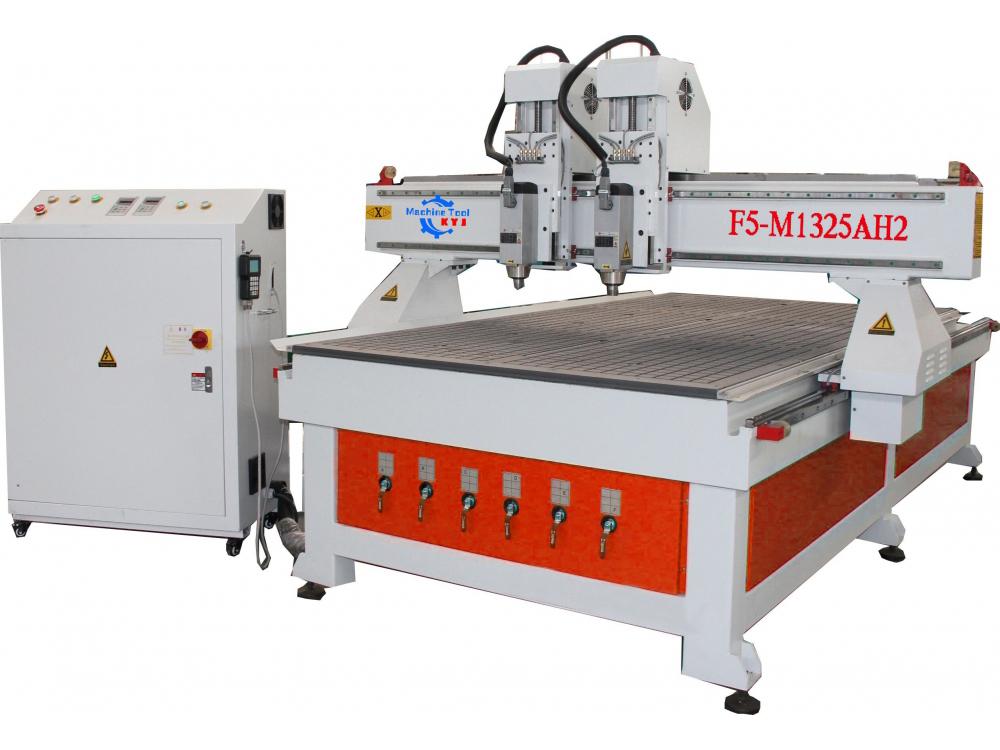

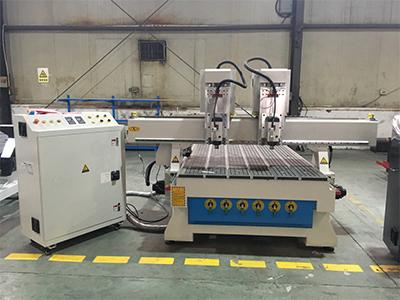

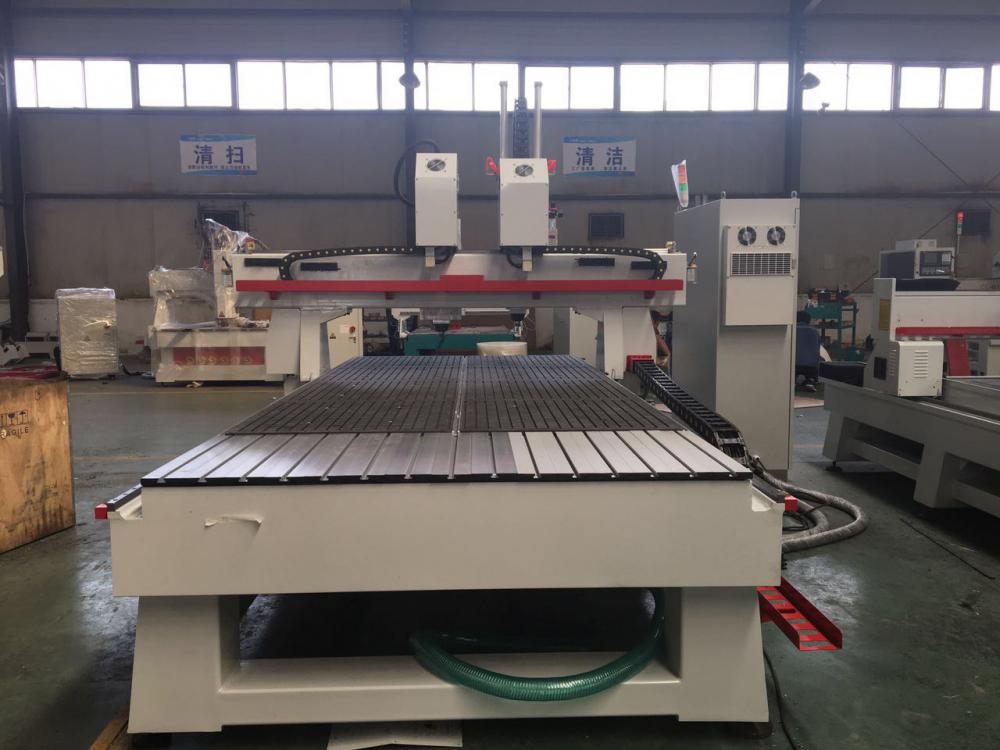

M1325AH2 Series CNC Router/CNC Mill
The CNC milling machine has two spindles for simultaneously processing multiple workpieces, thus doubling the processing efficiency.
Lumber core board, fiberboard, wavy plate, plywood plate, acrylic, PVC, plastic, insulation board, epoxy resin, artificial stone, soft metal plate such as aluminum plates and copper plate

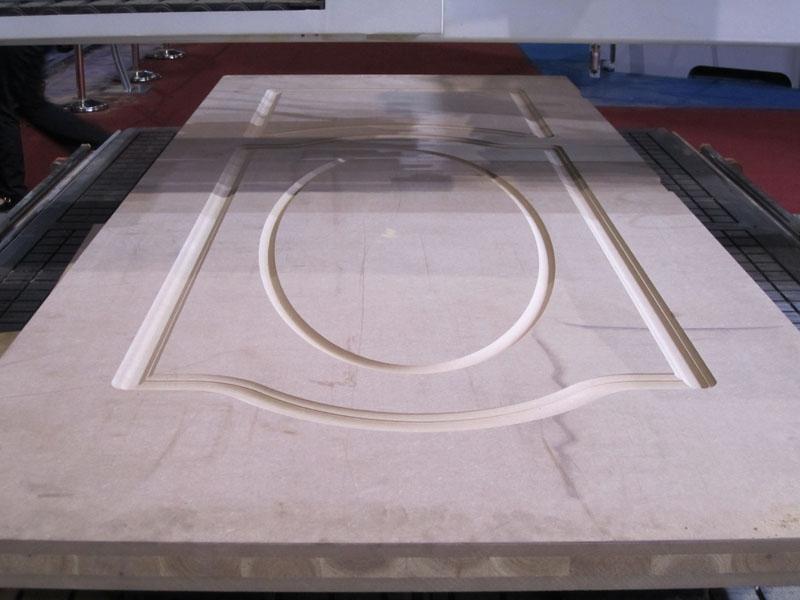

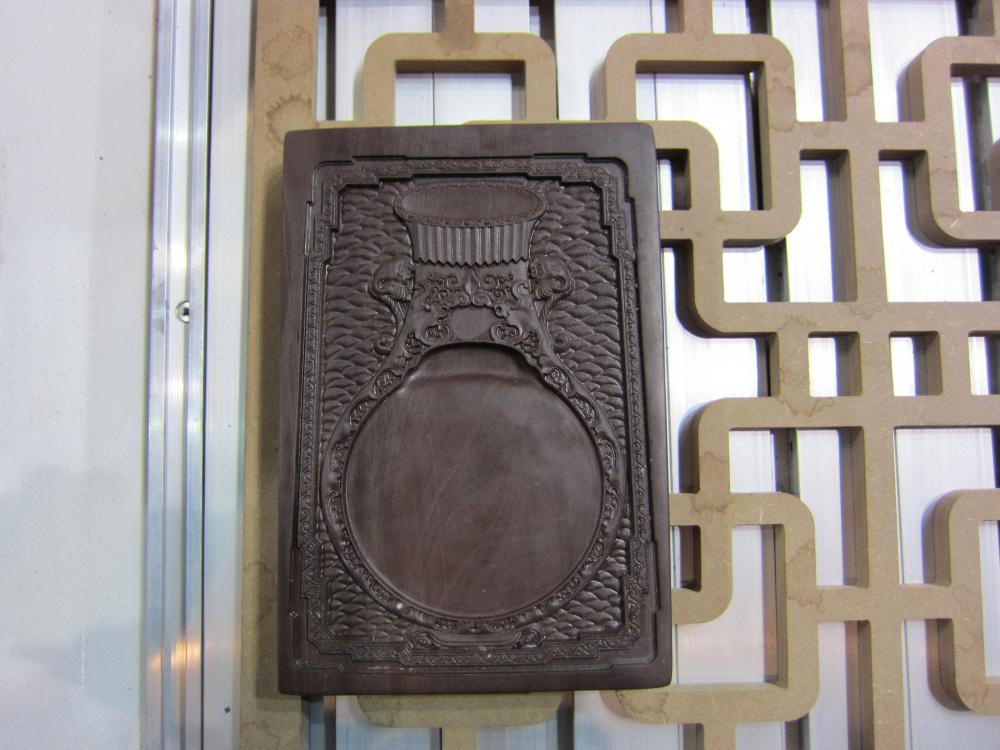

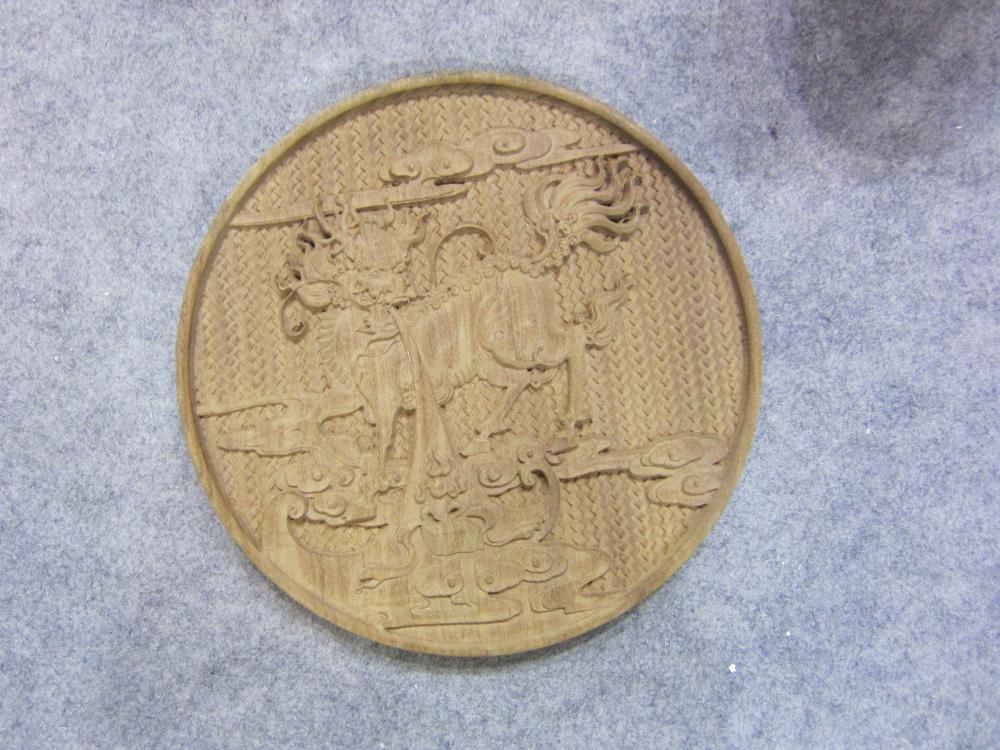

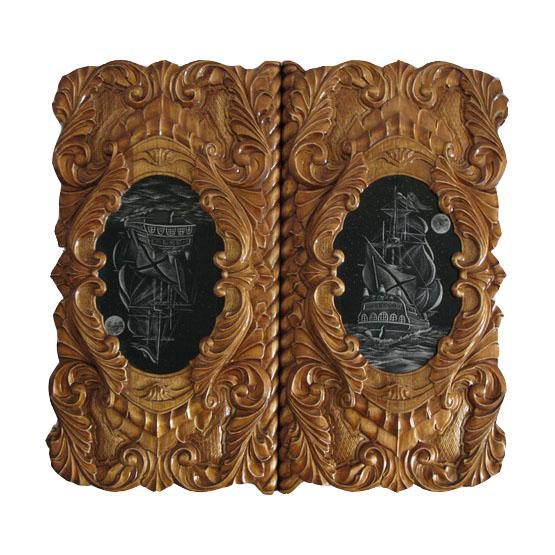

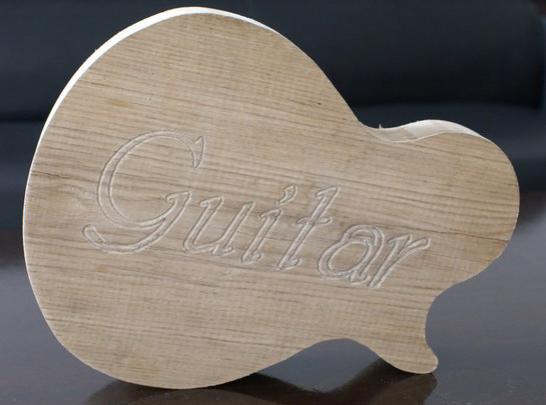

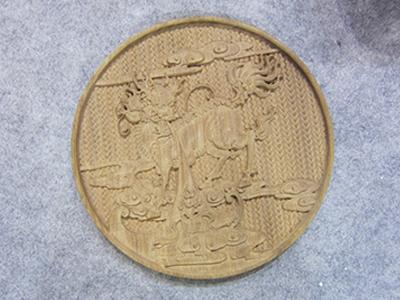

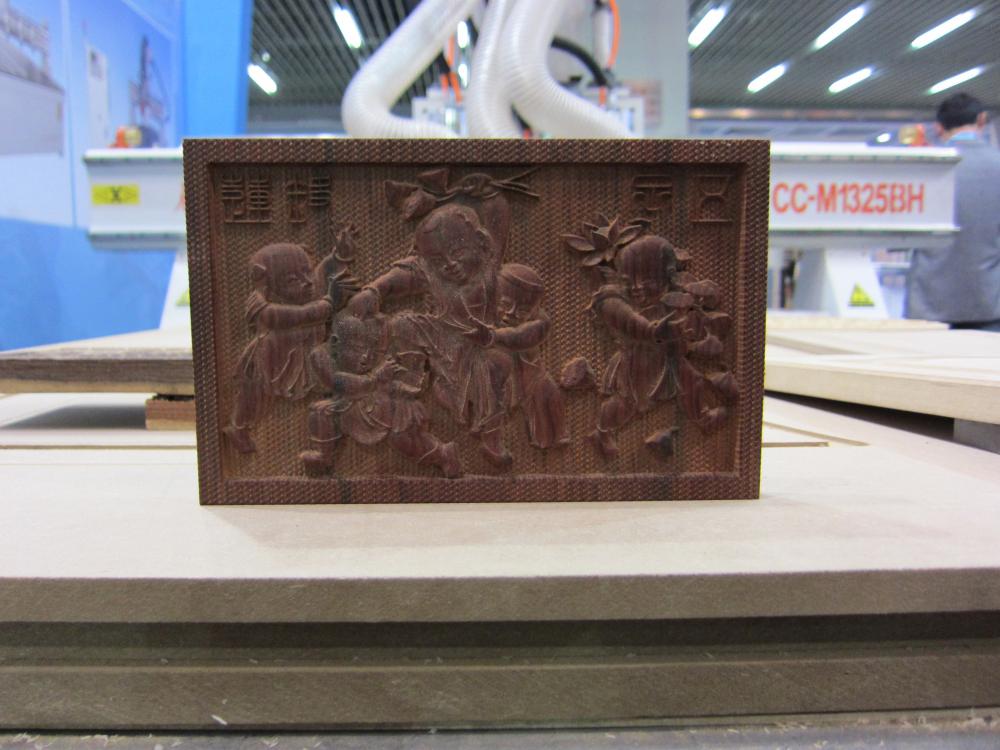

- Furniture industry: batch manufacturing cabinet doors, wood doors, windows, solid wood furniture, flat-pack furniture, etc.

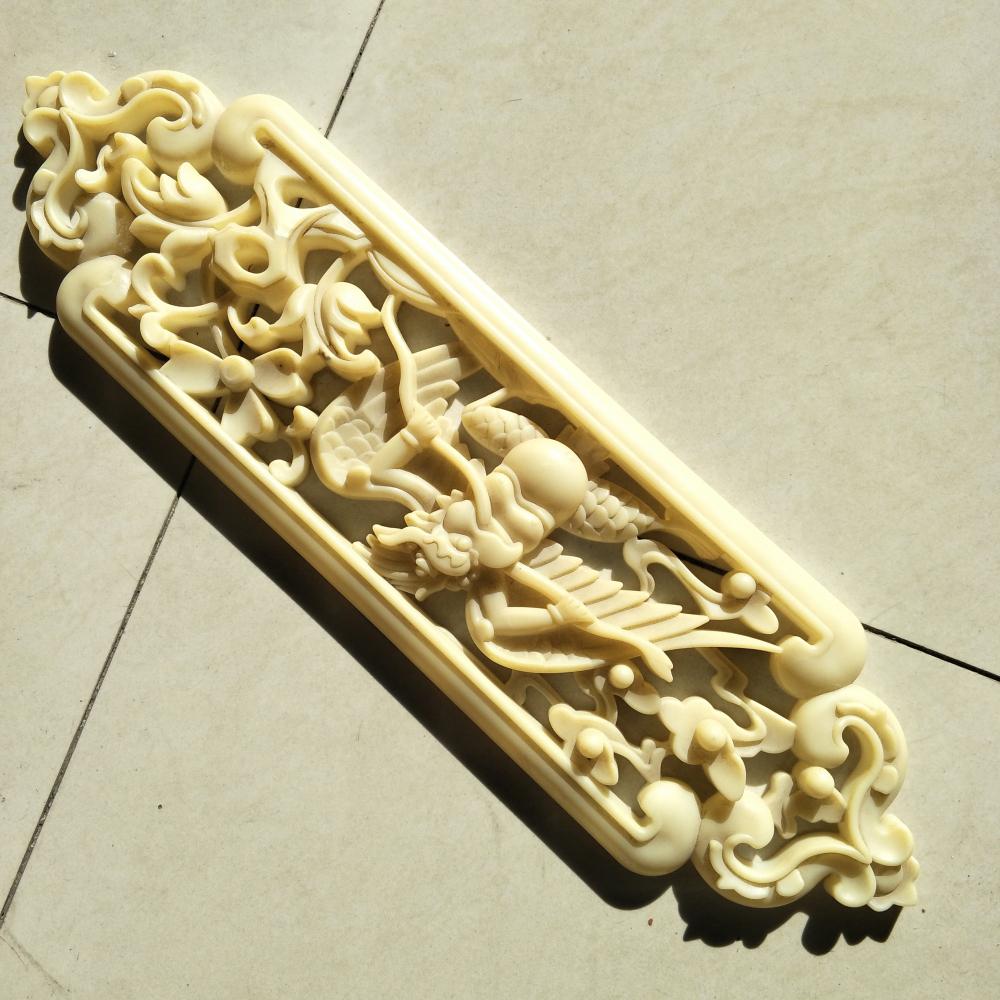

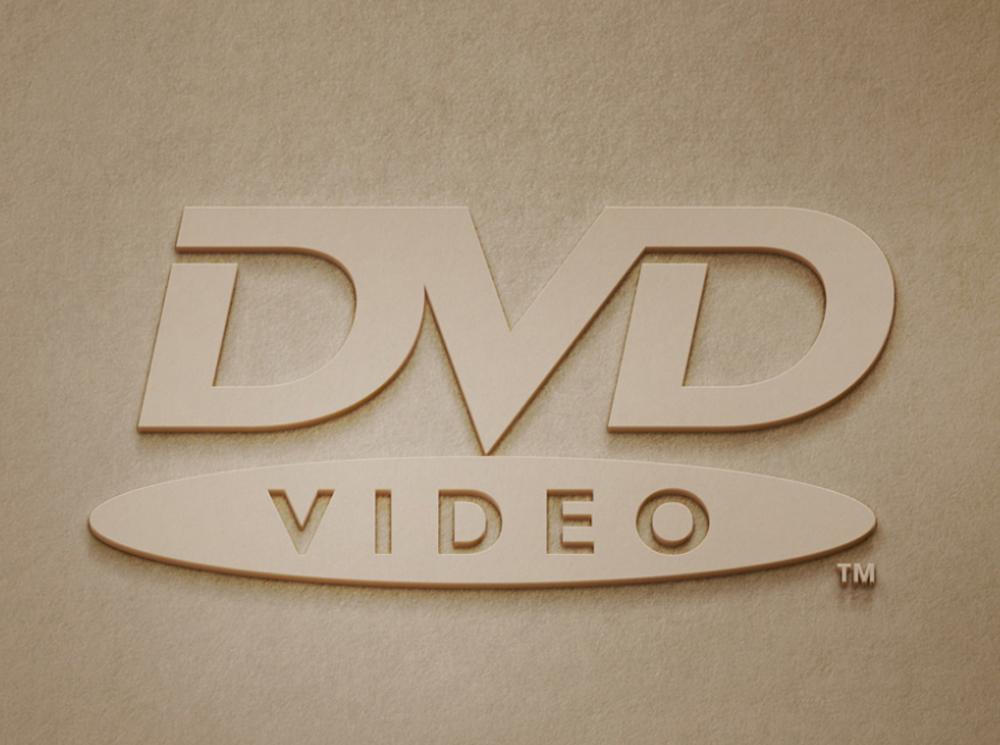

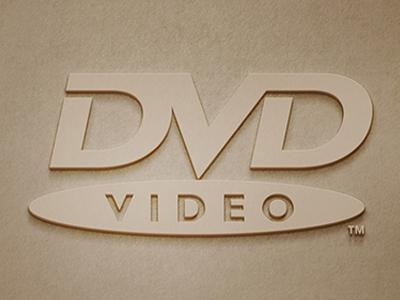

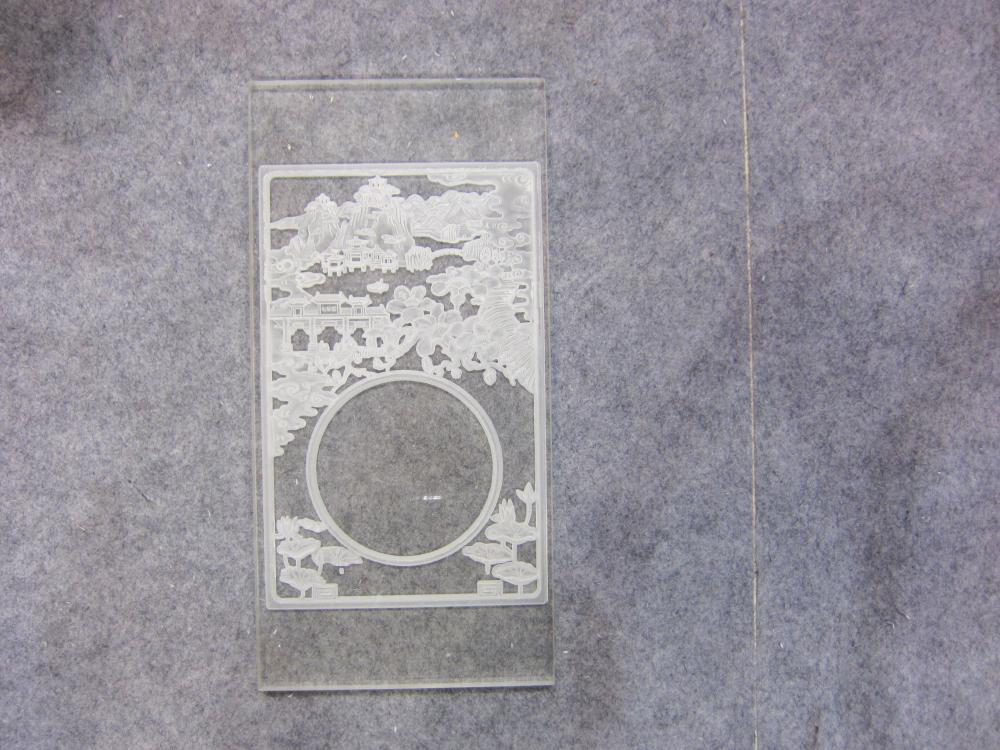

- Advertising industry: advertising signs, acrylic crystal characters,

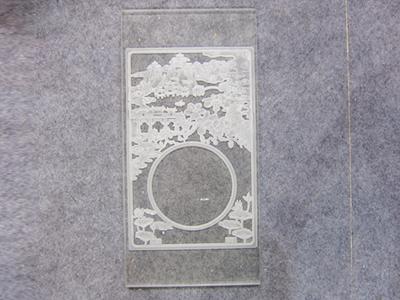

- Decoration industry: engraving and cutting acrylic, PVC, MDF, artificial stone, glass fiber, plastic, soft metal plates such as aluminum plates and copper plates

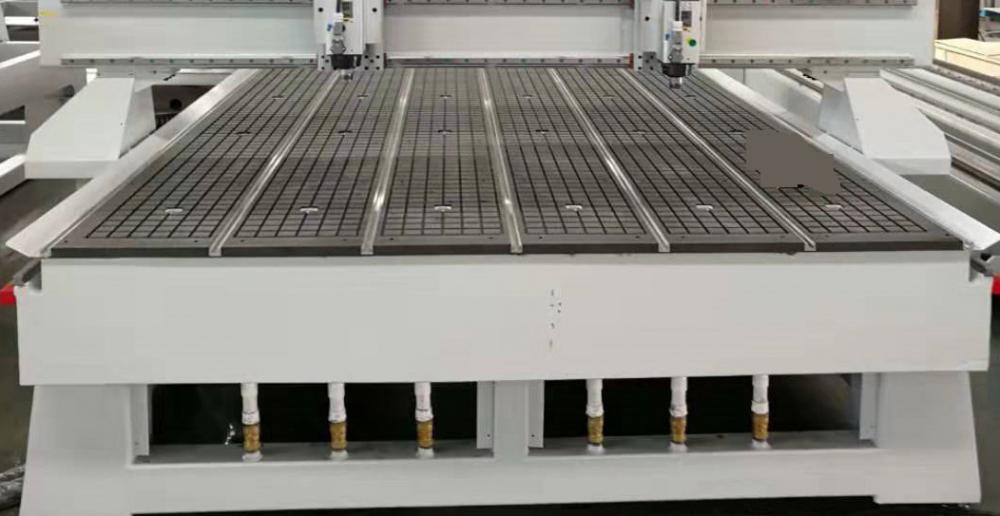

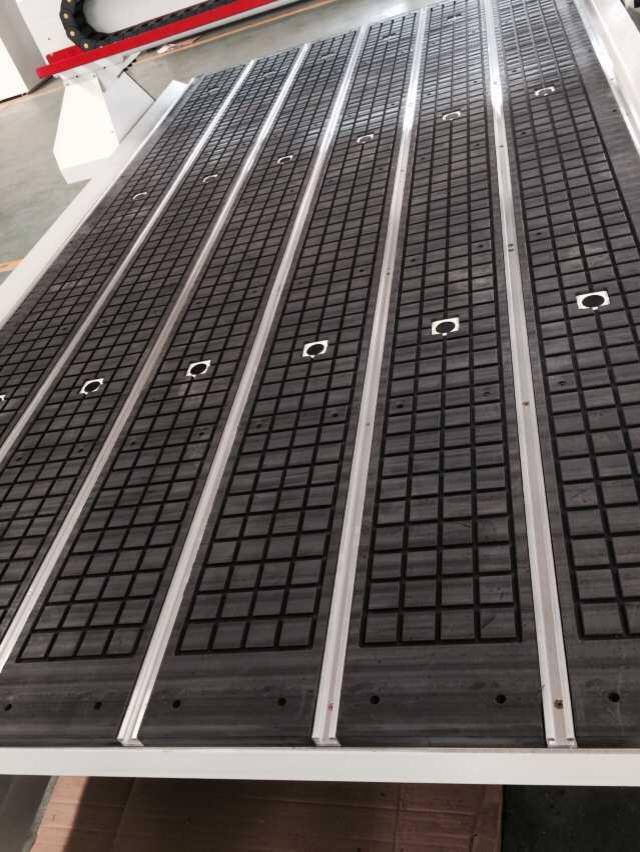

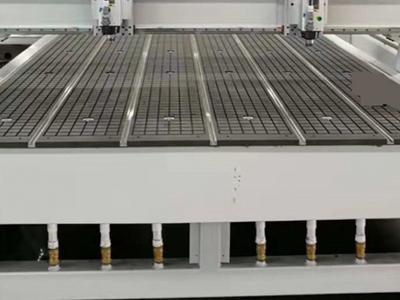

The vacuum table is made of high density material at 1.3-1.45g/cm. It provides a large adsorption force and can work with workpieces in a variety of dimensions.
The machine body is seamlessly welded using a thick wall squire steel that has undergone a vibration aging treatment. It will not deform even after long-term use.

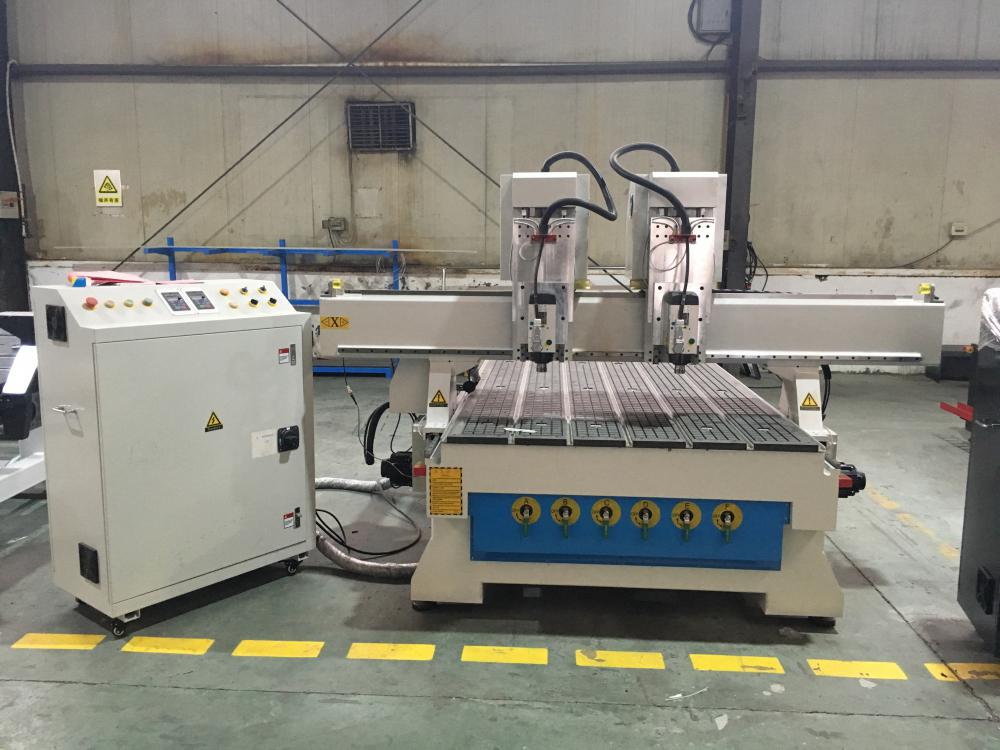

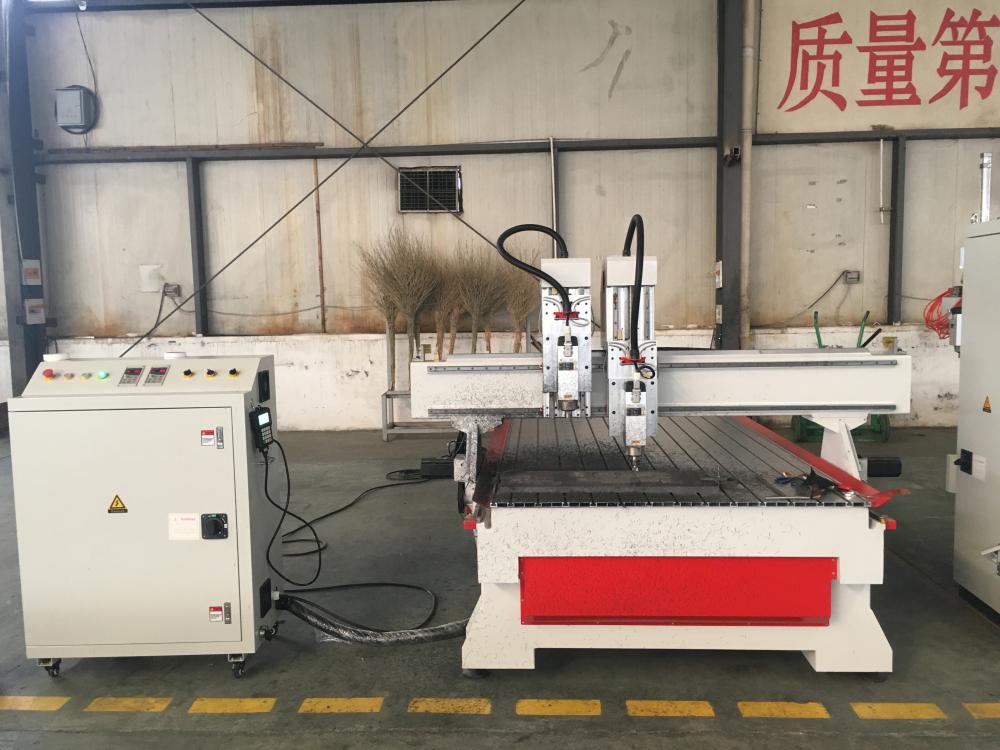

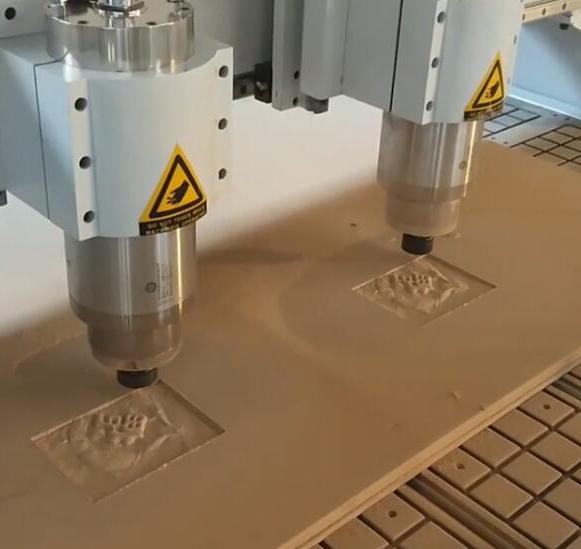

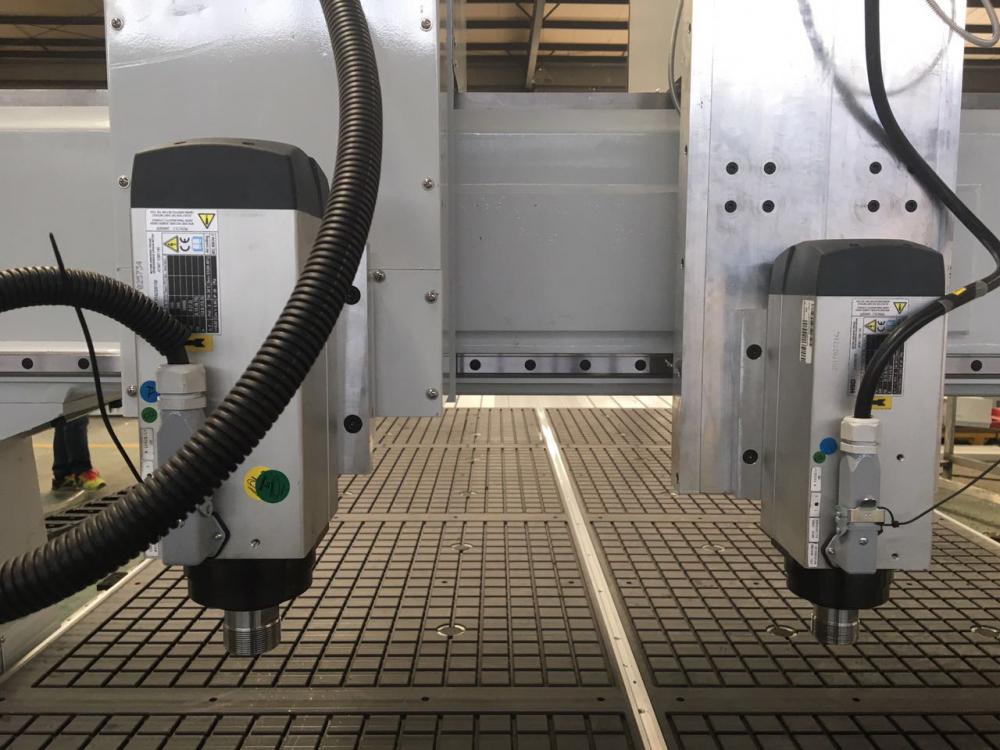

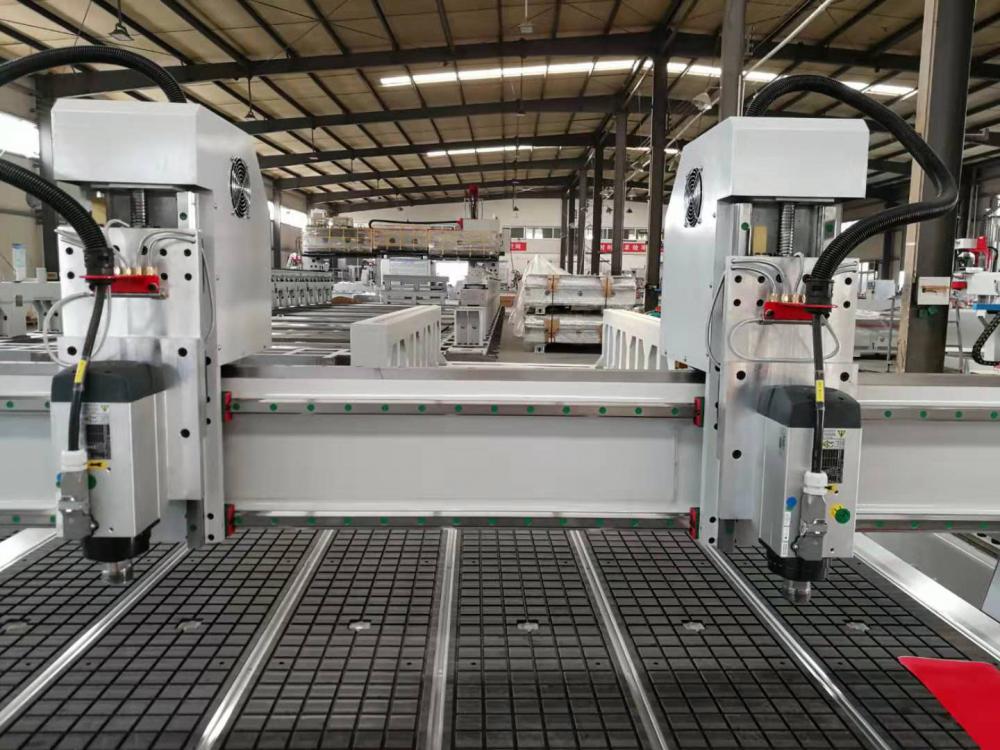

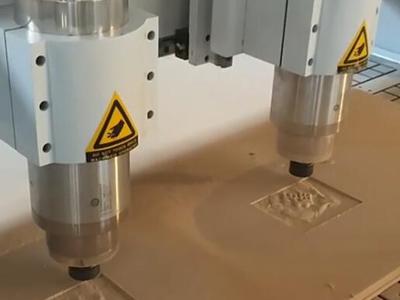

Two spindles can process multiple workpieces simultaneously to double the processing efficiency.

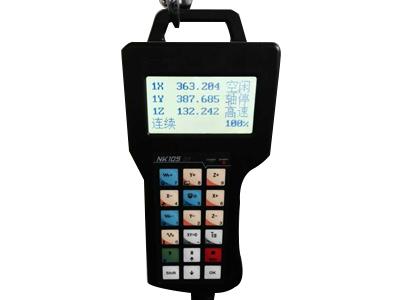

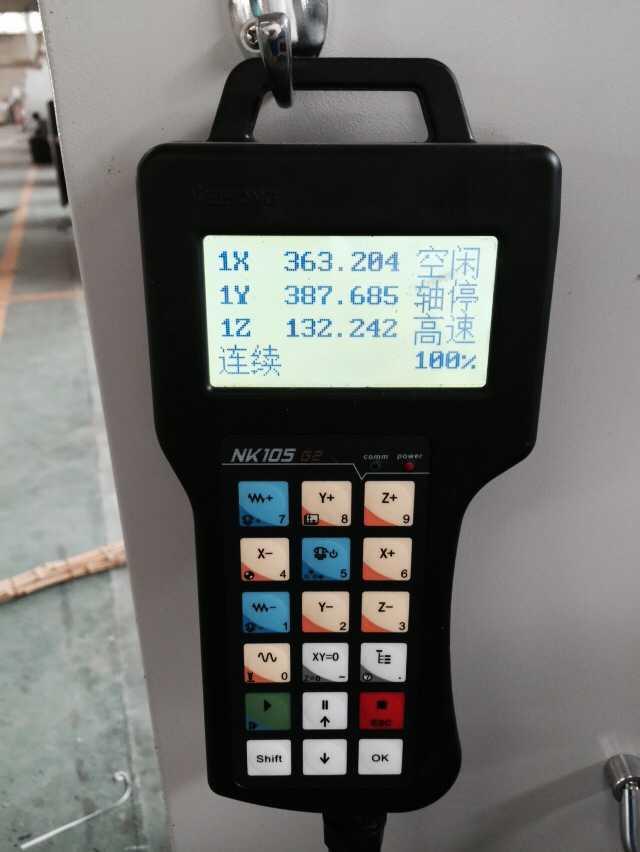

TheWeihong NK105 control system is operated via the operating handle. It is easy to use with training done in as little as 10 minutes.

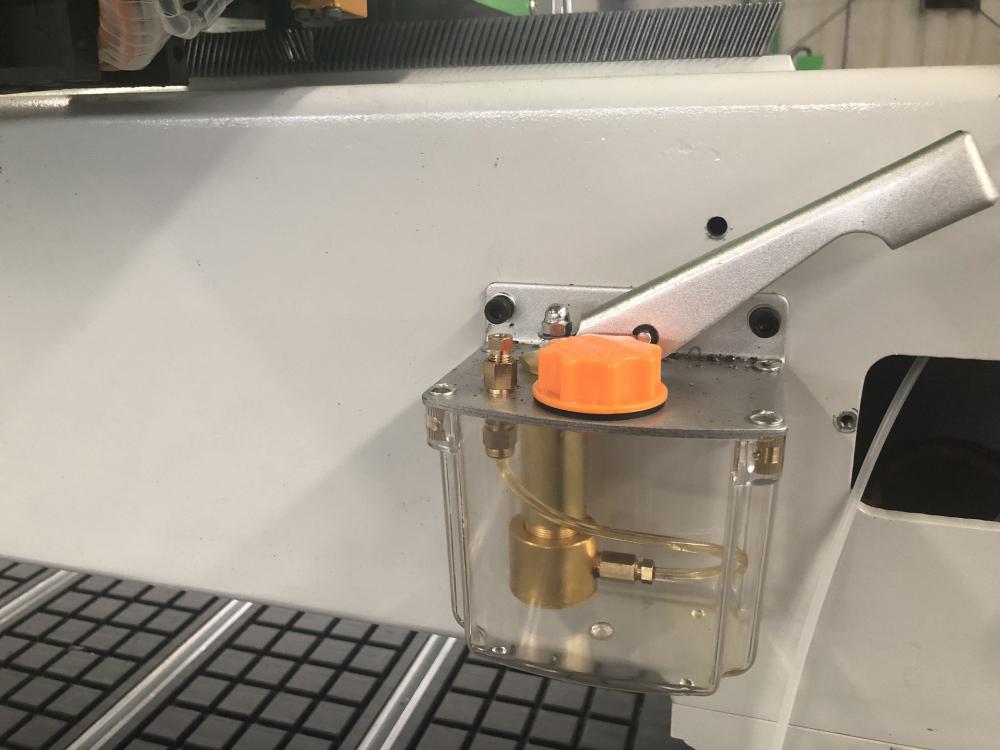

The oil lubrication system will lubricate parts to prevent rust. It is easy to use.
The oil skimmer prevents lubricating oil from dropping onto the workpieces.
| Model | F5-M1325AH2 | F5-M1631AH2 | F5-M2131AH2 | F5-M2142AH2 | |
| Stroke | 1300*2500*200mm | 1600*3100*200mm | 2100*3100*200mm | 2100*4200*200mm | |
| Positioning accuracy | ±0.03mm | ||||
| Idle speed | 45m/minute | ||||
| Support software | Type3/Artcam/Mastercam/UG | ||||
| Working voltage | AC380V-/220V | ||||
| Package dimensions | 3100*2100*2100mm | 3800*2100*2100mm | 3800*2200*2100mm | 3800*2200*2100mm | |
| Weights | 1500kg | 1800kg | 2100kg | 2300kg | |
