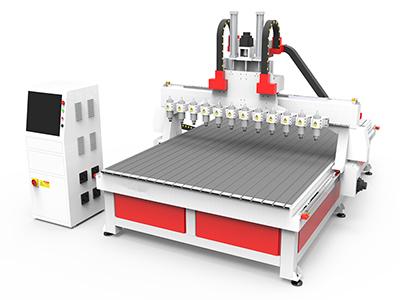

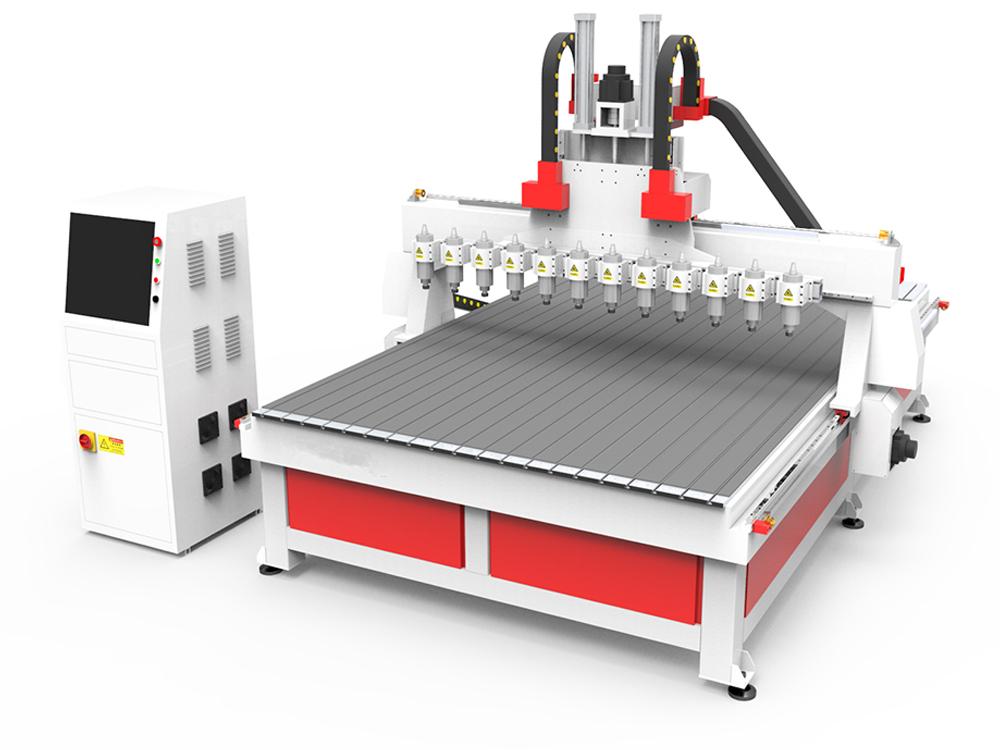

MS2030BH12 Series CNC Router/CNC Mill

12 Spindles CNC Router

The CNC router is designed for batch manufacturing of workpieces. It is capable of processing multiple workpieces simultaneously with the same specifications, thus doubling the processing efficiency. Users can request additional spindles to further improve processing efficiency according to their needs.

Materials Cut

Wood, plastic, acrylic, particle board, fiberboard, insulation board, plywood, polystyrene, polymethyl methacrylate

  • 12 Spindles CNC Router
  • 12 Spindles CNC Router
  • 12 Spindles CNC Router
  • 12 Spindles CNC Router
  • 12 Spindles CNC Router
  • 12 Spindles CNC Router
  • 12 Spindles CNC Router
  • 12 Spindles CNC Router
  • 12 Spindles CNC Router
  • 12 Spindles CNC Router
  • 12 Spindles CNC Router
  • 12 Spindles CNC Router
Applications

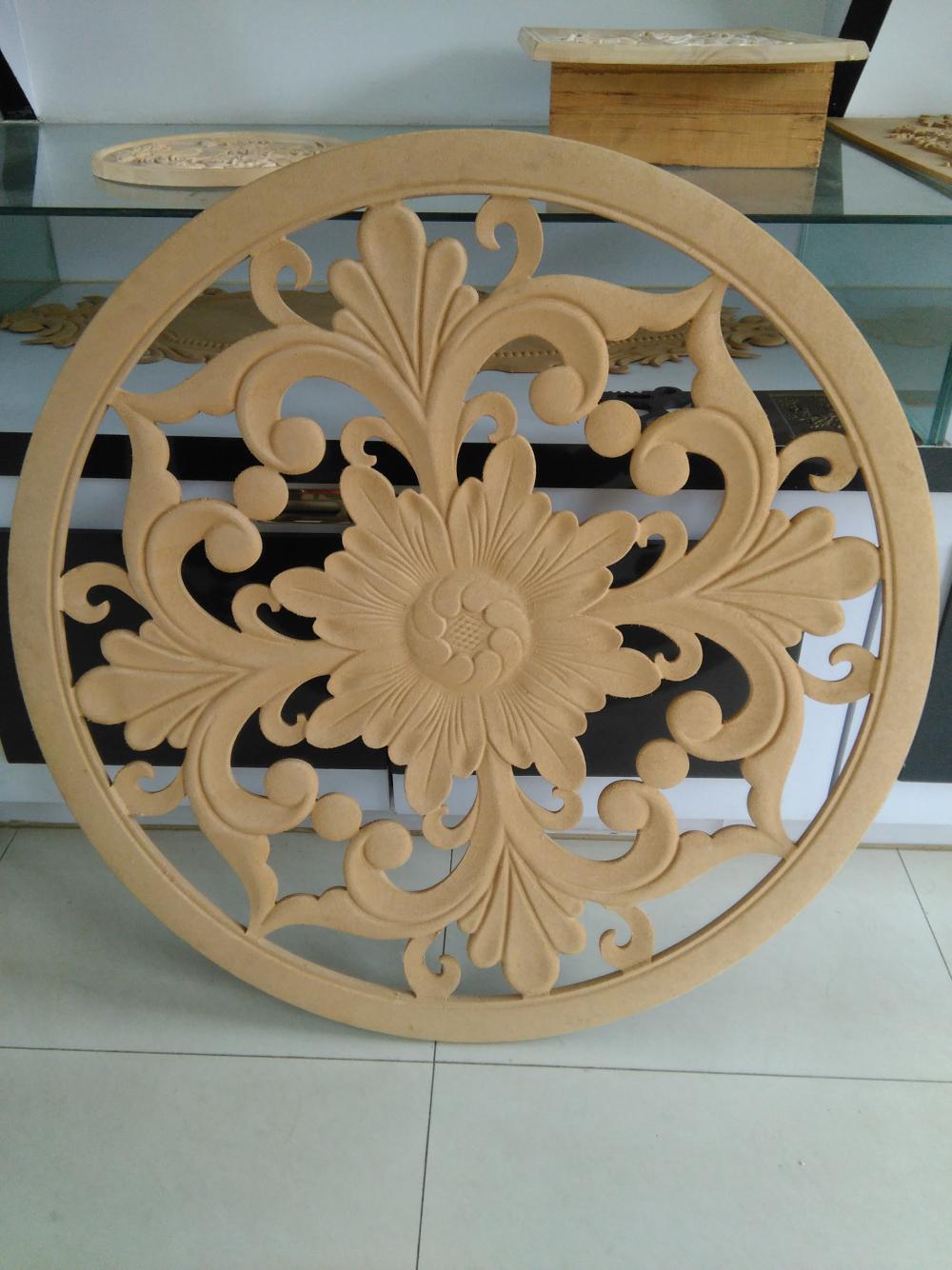

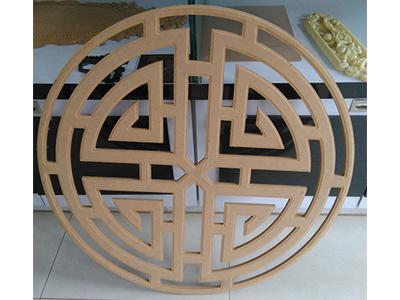

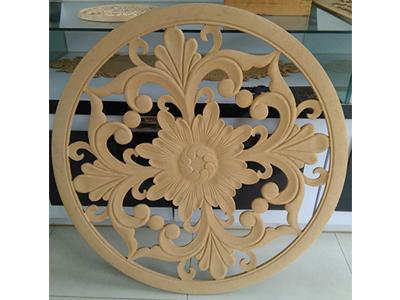

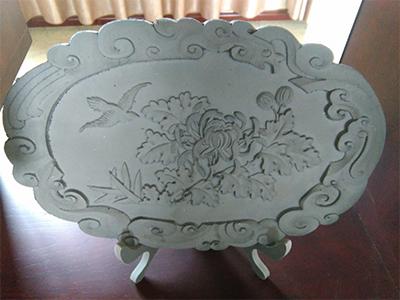

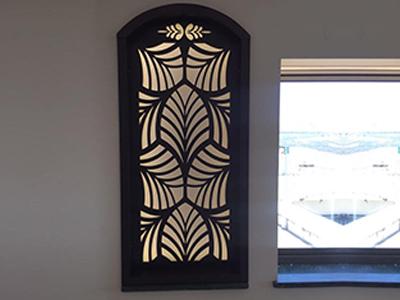

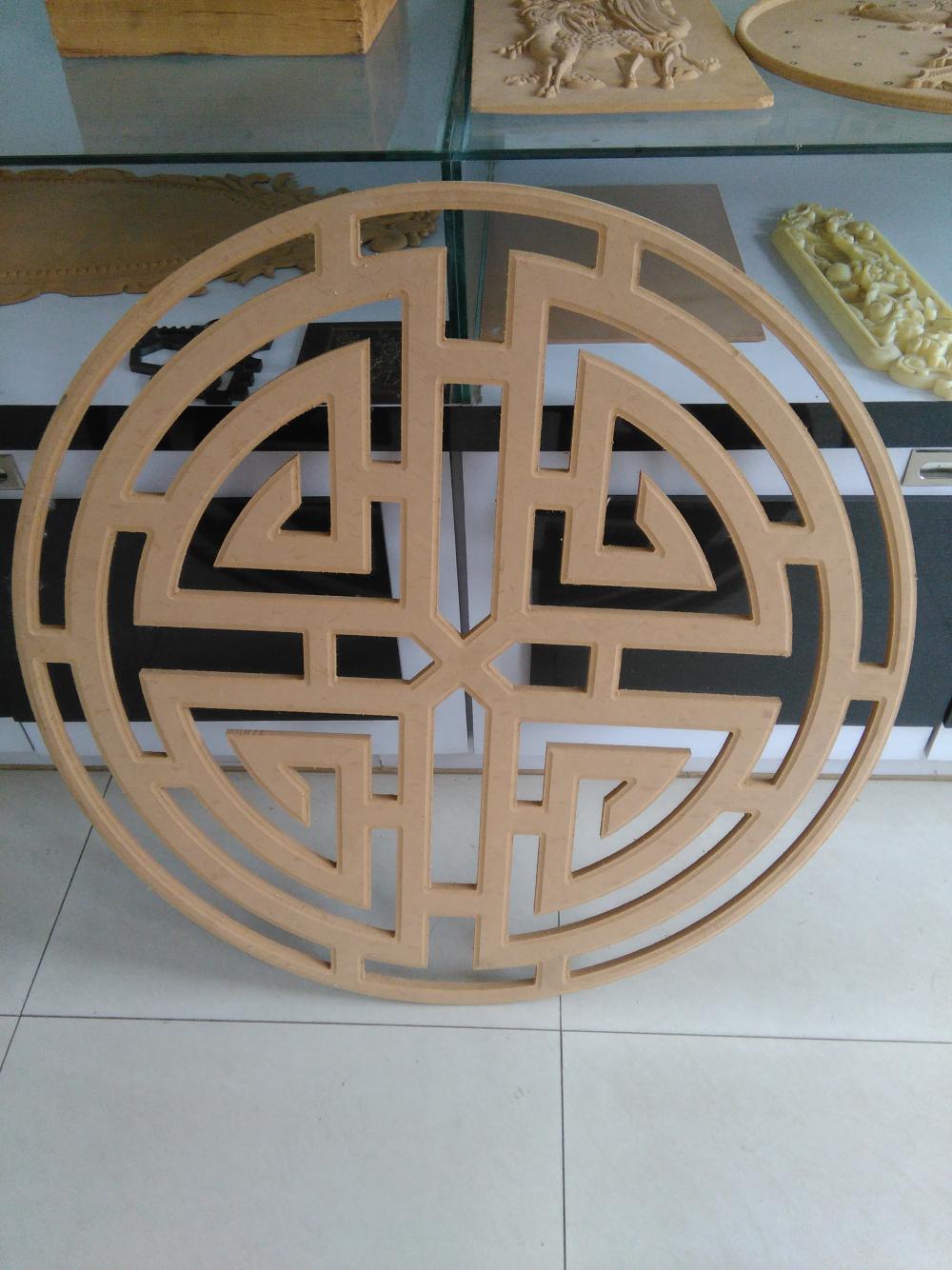

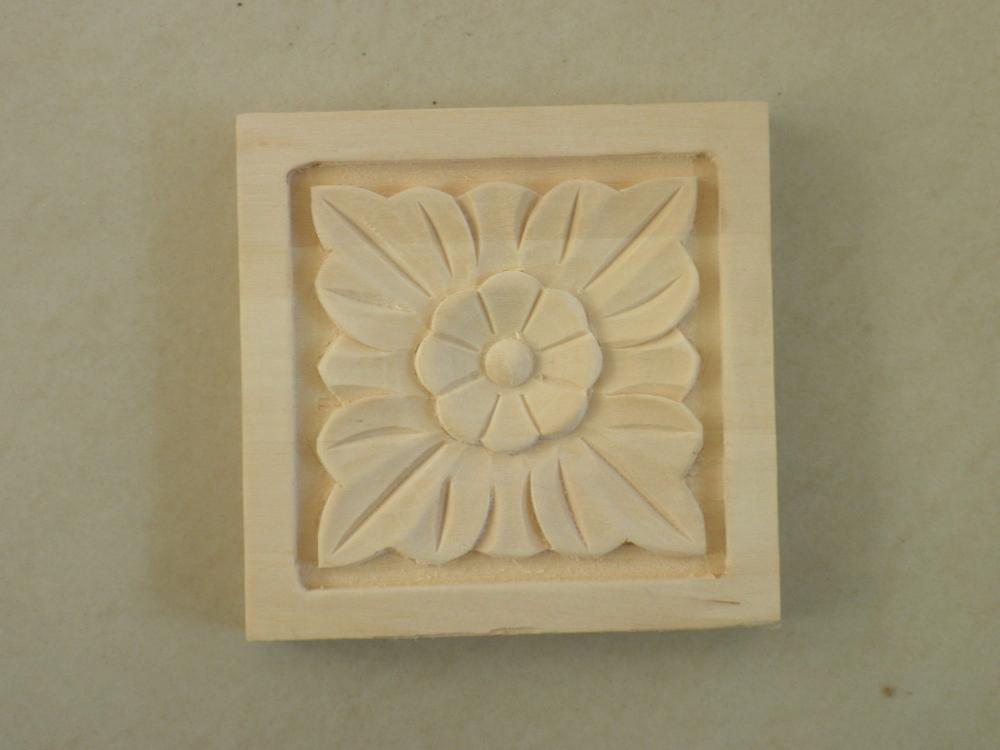

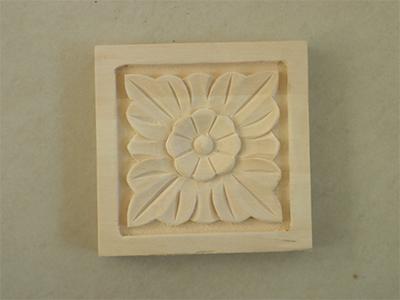

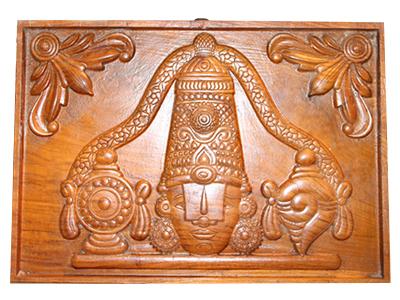

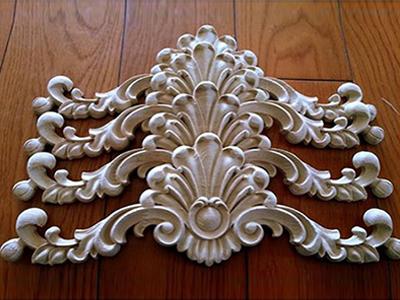

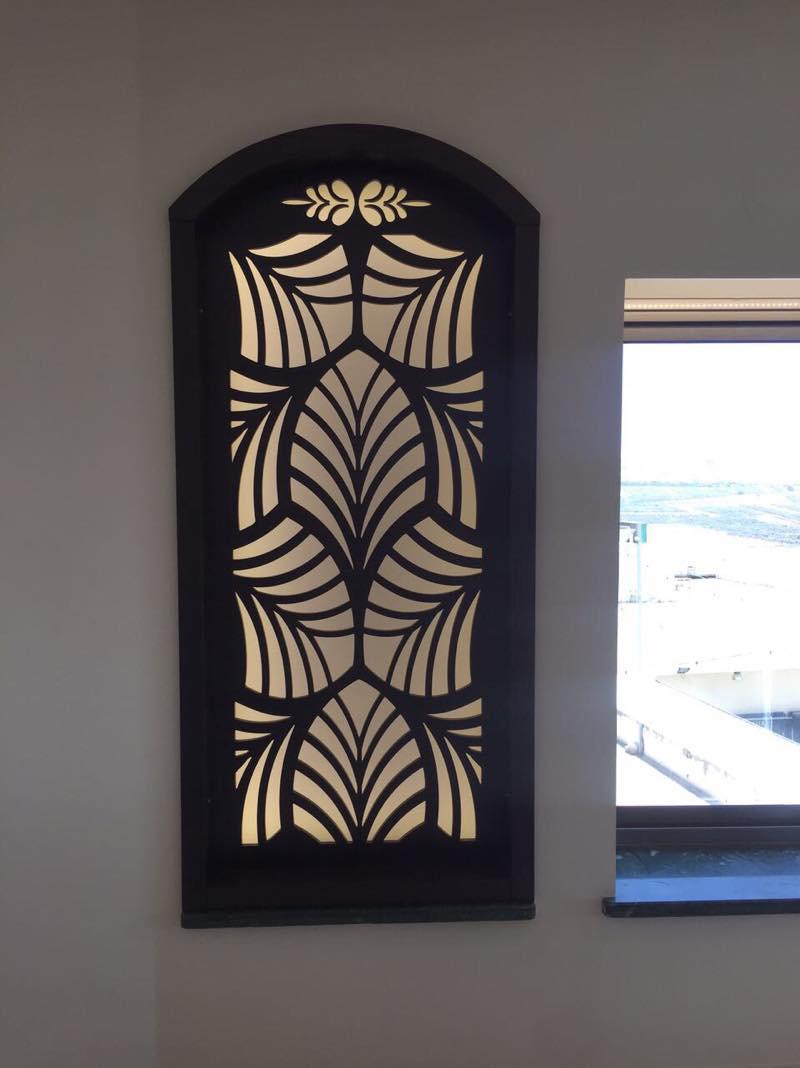

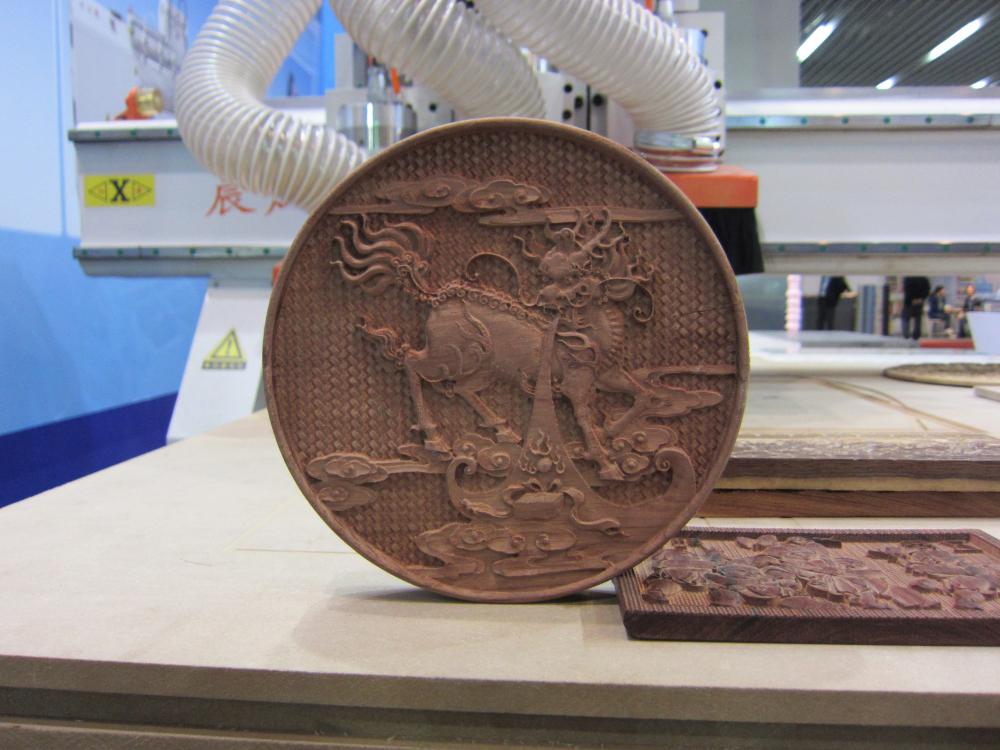

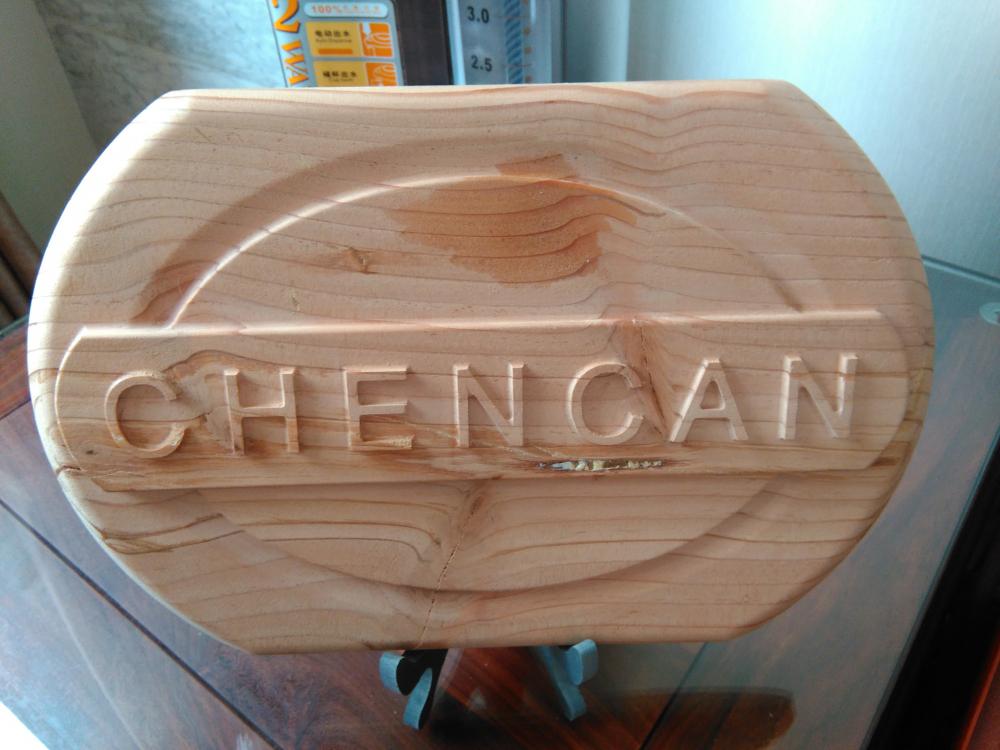

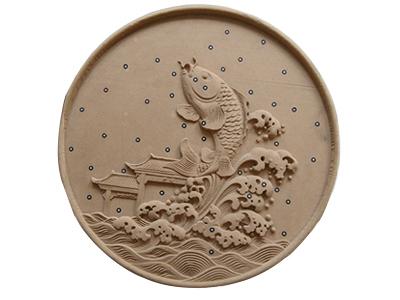

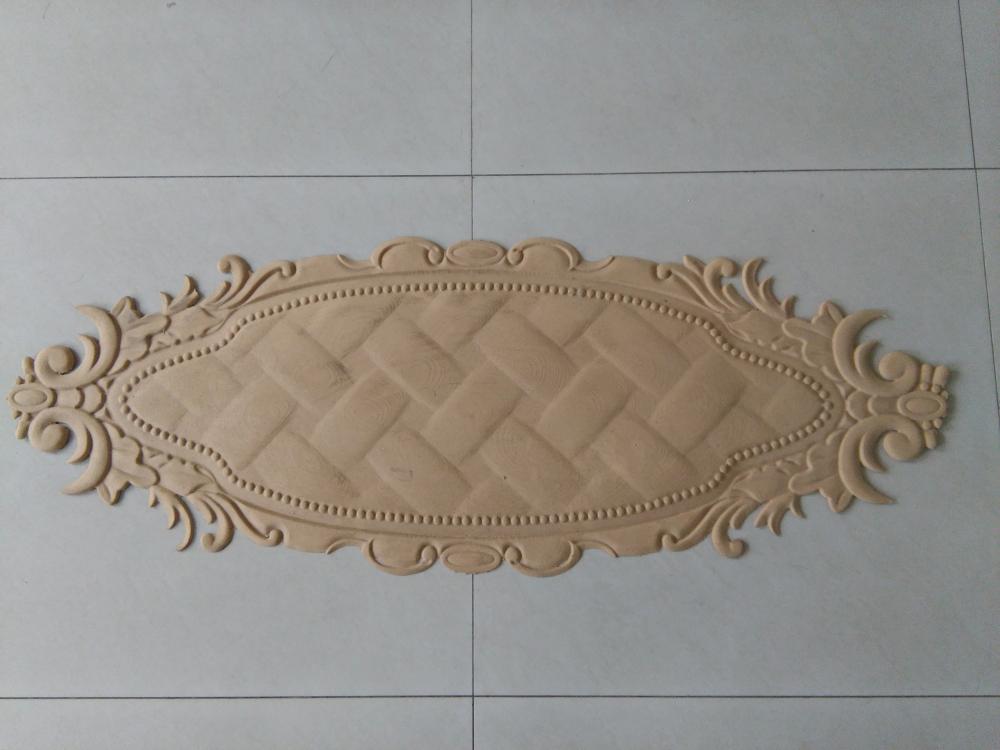

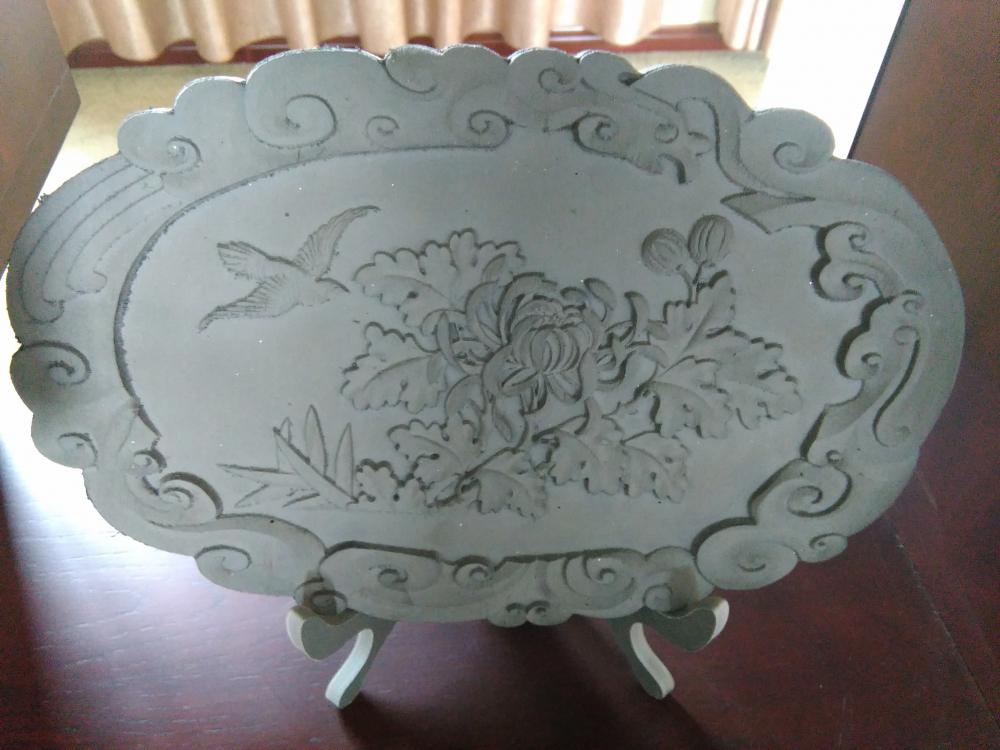

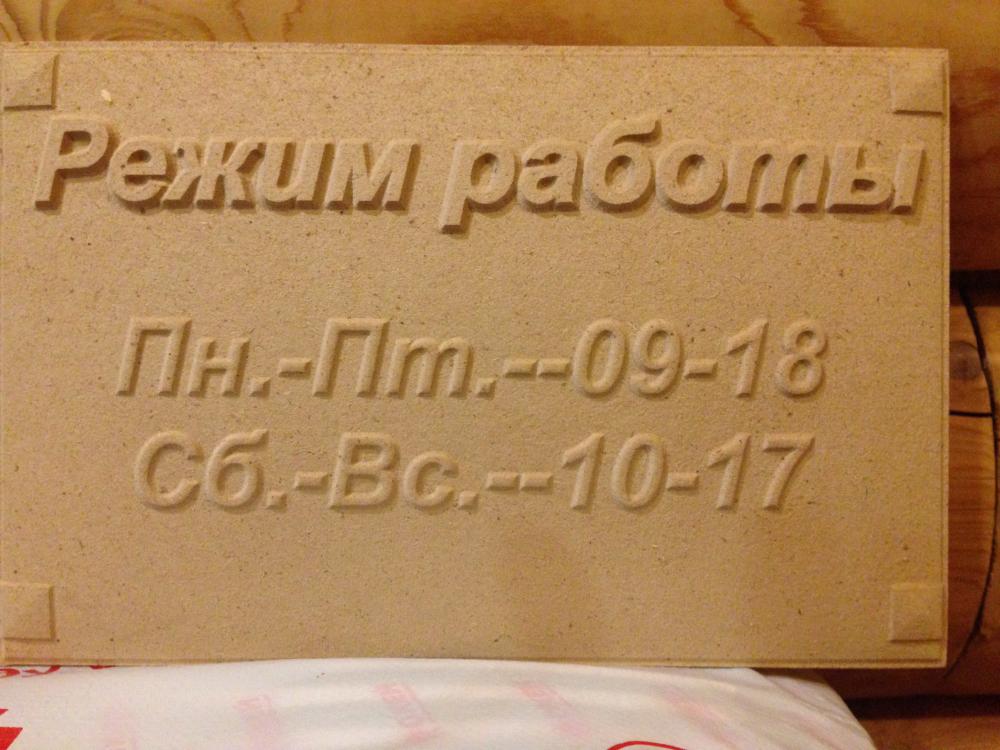

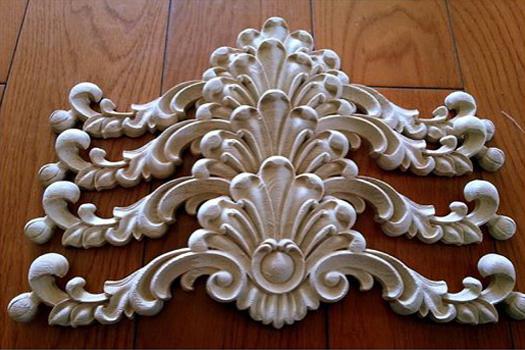

  • Woodworking industry: cutting and carving the 3D surfaces and outlines on furniture, musical instruments, wood crafts, advertising signs, art murals, cabinet, doors and windows
  • Mold industry: engraving a variety of molds including wood molds, letter punches, sand table models, motorboat models, foam molds
Features

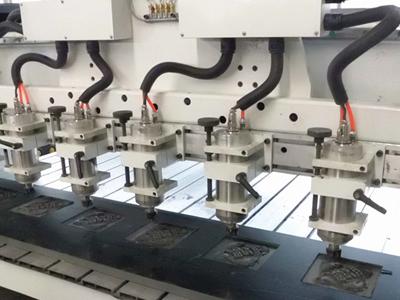

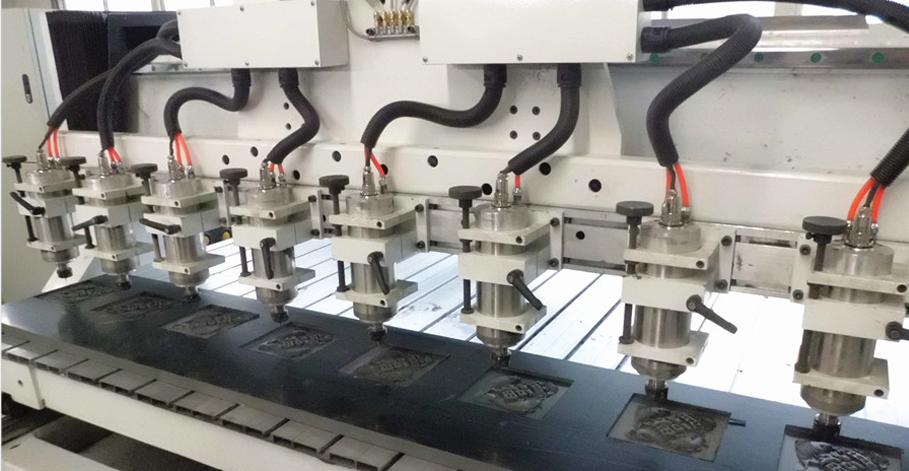

  • 12 Spindles CNC RouterThe CNC router allows up to 12 spindles to work simultaneously, thus improving work efficiency. This product is CE certified and popular with our customers.

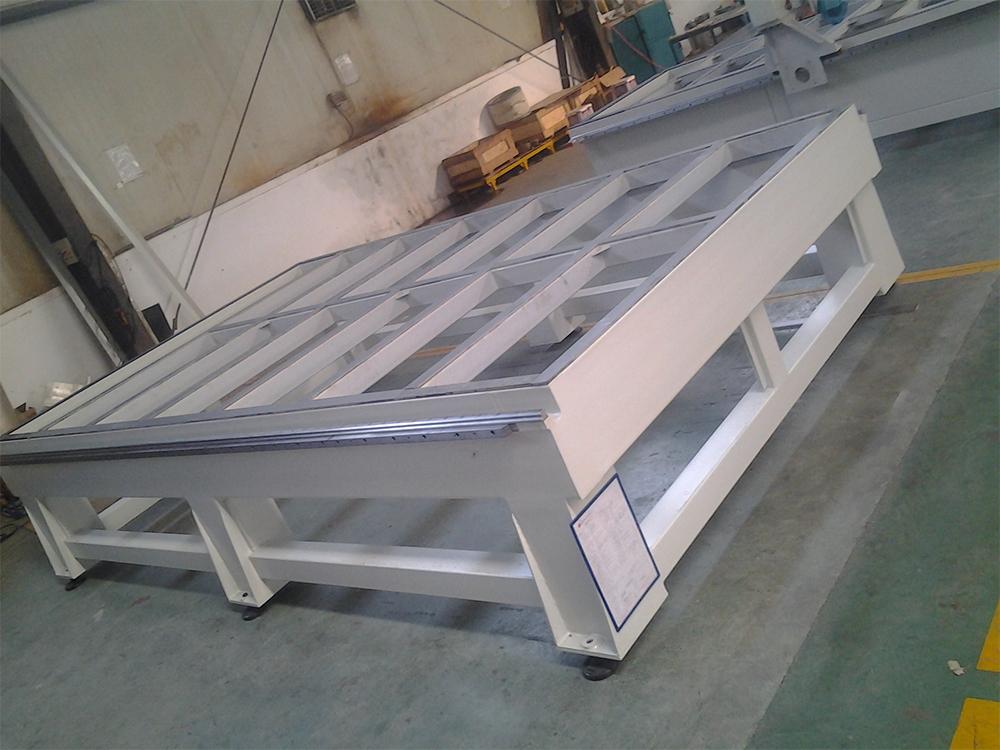

  • 12 Spindles CNC RouterThe machine body is seamlessly welded using steel with a high rigidity.
  • 12 Spindles CNC RouterThe Y axis is driven by two motors and two racks, ensuring the high performance.
Parameters
Model F5-MS2030BH12
X-axis stroke 2000mm
Y-axis stroke 3000mm
Z-axis stroke 300mm
Software Artcam
Spindle power and speed 2.2kW water cooled spindle, spindle speed:0-24000r/min（12 spindles）
Max. shank diameter Ф12.7mm
Max. feed rate X-axis: 10000mm/min, Y-axis:10000mm/min, Z-axis: 5000mm/min
Accuracy ±0.1mm
Repeatability X-axis:0.03mm, Y-axis:0.03mm, Z-axis:0.02mm
Processing speed 0-15000mm/min
Working voltage AC 380V/220C 3P
Weights 2000kg
Package dimensions 3700x2260x2100mm
Optional Device
  • The water cooled spindles can be replaced with air cooled spindles.
  • Users can request added fixtures for the positioning cylinder.
  • The number of spindles can be modified according to your requirements.
Factory Tour
  • 12 Spindles CNC Router5-Face Milling
  • 12 Spindles CNC RouterCNC Machining
  • 12 Spindles CNC RouterGantry Planing
  • 12 Spindles CNC RouterWelding
  • 12 Spindles CNC RouterWelding

Founded more than two decades ago, Shandong PEF Machine Tool Co. is a lauded manufacturer of high-performance CNC processing machinery. Our equipment is carefully developed to provide users with incredible precision, and we are proud of their capabilities. We offer a series of 3/4/5-axis CNC routers that deliver a broad range of functions for many industries. These machines have been applied for numerous different applications, such as panel processing, parts prototyping, custom cabinets, architectural modeling, millwork, and much more. We provide a full range of standard equipment, but if your requirements are still not met, we can customize the machines to ensure you are fully satisfied. Contact us today to learn more!
